for Fixture Cooling Fixture Temperature Adjustment Fitting Female Thread Straight Plug with Stop Valve Built-in
One-touch fitting for mold cooling. No projections remain on the die after the plug is removed.
[Features]
· One-touch fitting for mold cooling.
· Working fluids include 3 types: thermal oil, (fresh) water and air.
· No protrusion on the mold remains after the plug is removed.
· Stop valve built-in type prevents warm water outflow when the plug is attached or removed.
[Features]
· One-touch fitting for mold cooling.
· Working fluids include 3 types: thermal oil, (fresh) water and air.
· No protrusion on the mold remains after the plug is removed.
· Stop valve built-in type prevents warm water outflow when the plug is attached or removed.

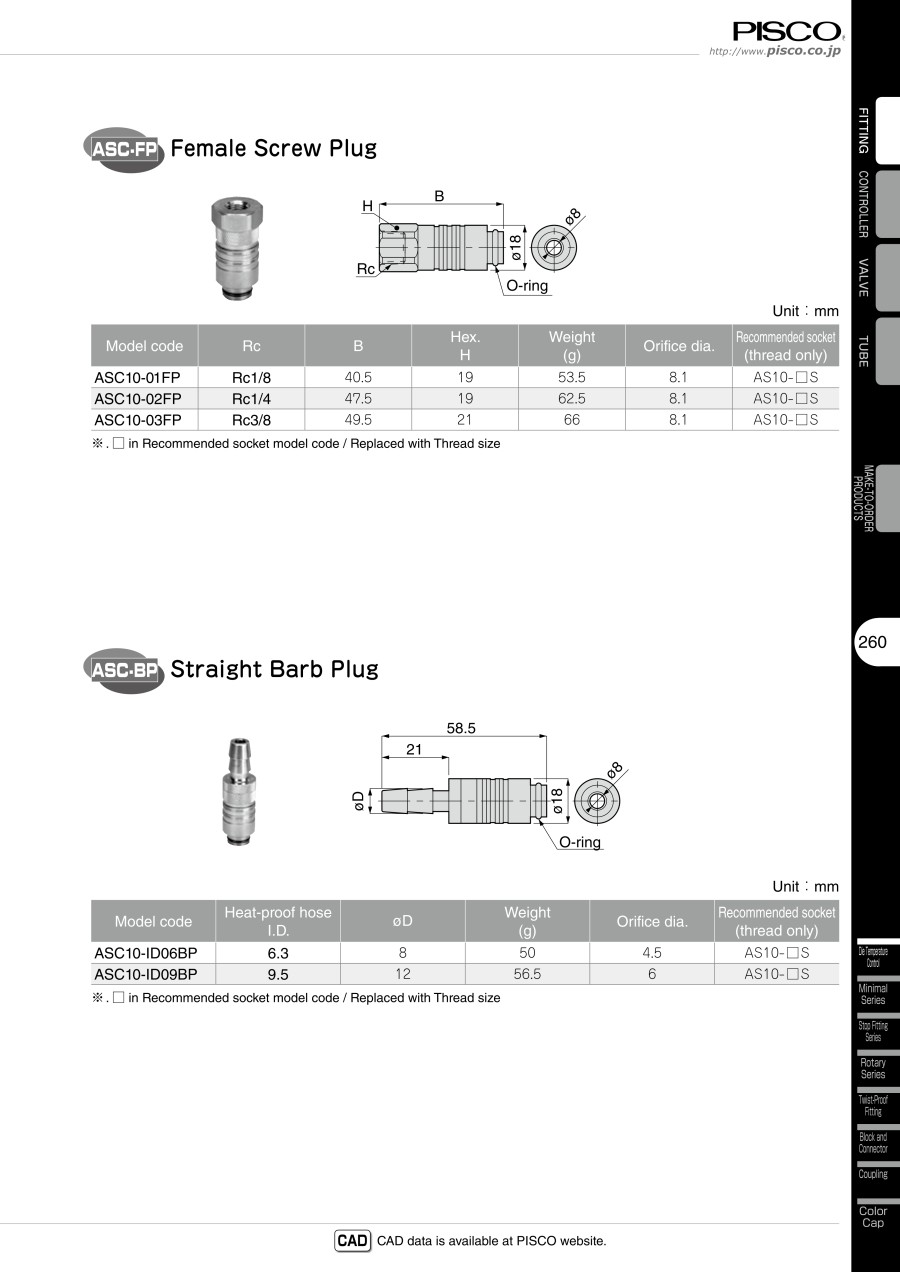

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| ASC10-01FP |
| ASC10-02FP |
| ASC10-03FP |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Nominal of Thread 1 | |
|---|---|---|---|---|---|---|
19.72 € | 1 | 12 Days | 10 | 1/8 | ||
20.34 € | 1 | 12 Days | 10 | 1/4 | ||
22.07 € | 1 | 12 Days | 10 | 3/8 |
Loading...
Basic information
| Type | Single-Action Coupling | Fitting Type | Screw Mount Direction | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Main Body Material | Brass | Application | Control the mold temperature | Screw Mounting, Direction | Straight |
| Operating Temperature(°C) | 0::120 | Compatible Tube Outer Diameter 1(mm) | 8 | Types of connection screw 1 | Rc |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
