NIHON PISCO

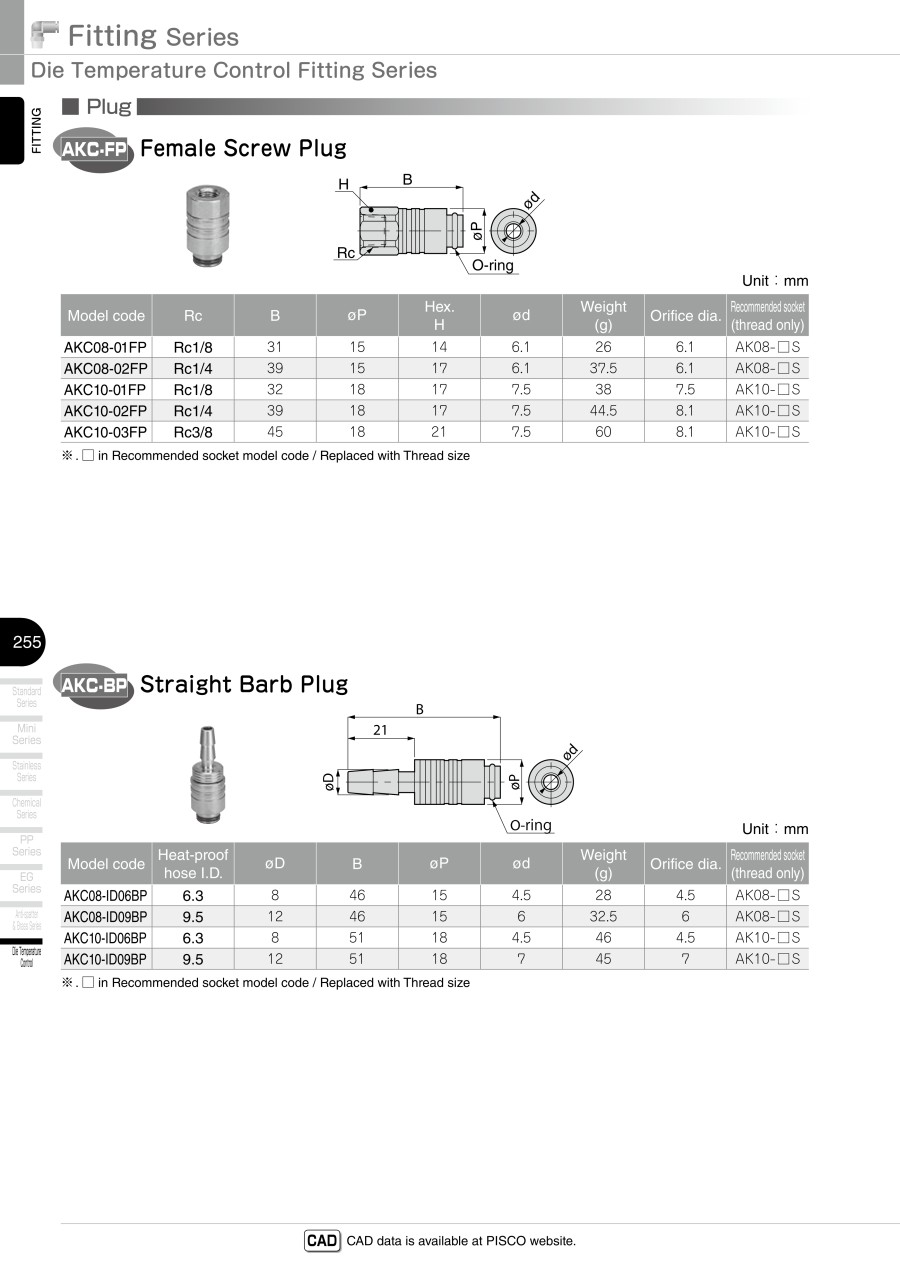

for Fixture Cooling Fixture Temperature Adjustment Fitting Female Thread Straight Plug

for Fixture Cooling Fixture Temperature Adjustment Fitting Female Thread Straight Plug

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    AKC08-01FP
    AKC08-02FP
    AKC10-01FP
    AKC10-02FP

    Compatible Tube Outer Diameter 1

    (mm)

    Nominal of Thread 1

    Plug External Diameter φ

    (mm)

    		RoHS?Minimum order quantity
    6.1
    1/8
    15
    10
    1 pieces
    6.1
    1/4
    15
    10
    1 pieces
    7.5
    1/8
    18
    10
    1 pieces
    7.5
    1/4
    18
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.27 €
    ( 11.03 € )
    13 working days
    9.94 €
    ( 11.83 € )
    13 working days
    10.07 €
    ( 11.98 € )
    13 working days
    10.69 €
    ( 12.72 € )
    13 working days
  • 1

    • More Information

    Basic information

    One-touch fitting for mold cooling. No projections remain on the die after the plug is removed.

    [Features]
    · One-touch fitting for mold cooling.
    · Working fluids include 3 types: thermal oil, (fresh) water and air.
    · No protrusion on the mold remains after the plug is removed.
    · Stop valve built-in type prevents warm water outflow when the plug is attached or removed.
