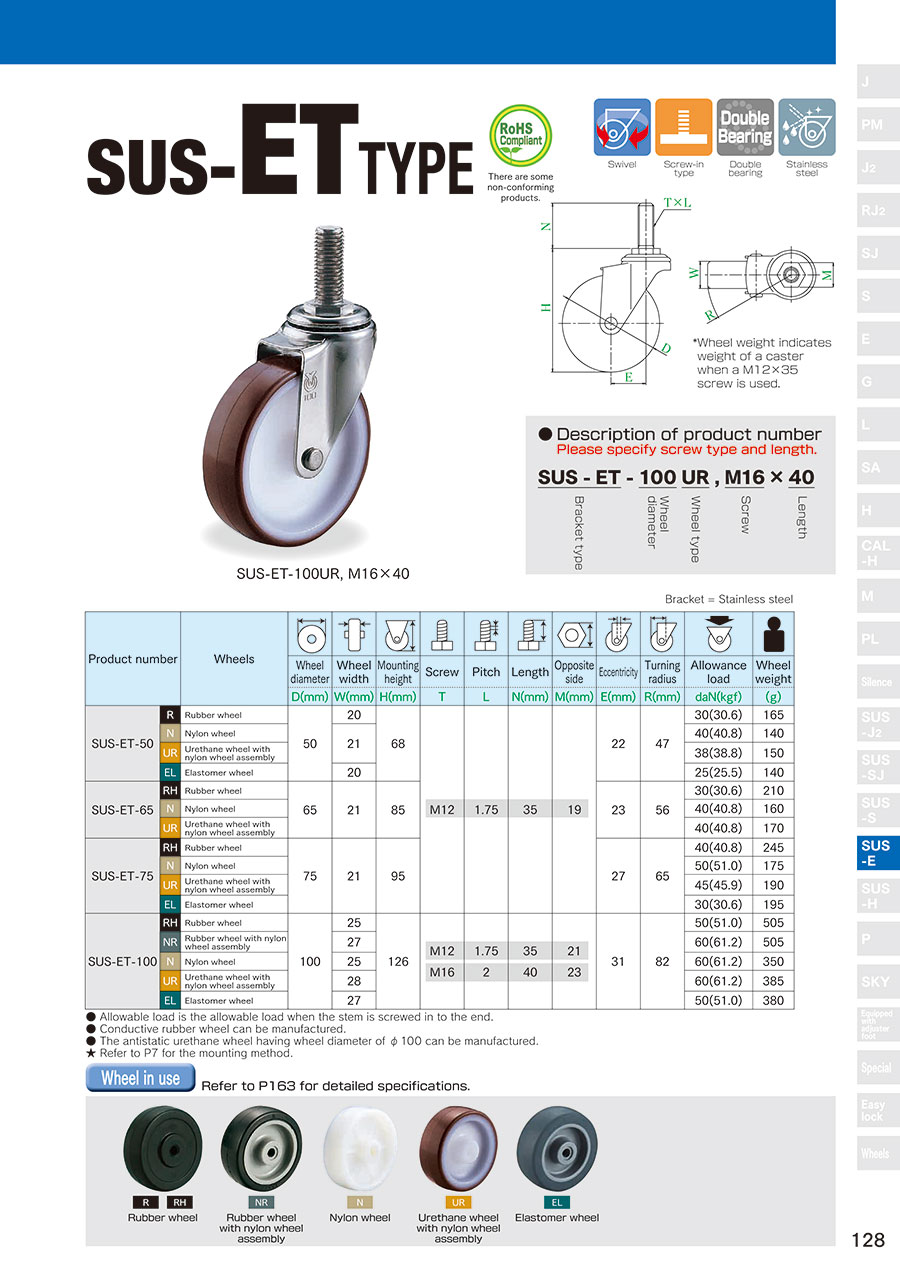

SUS-ET Model Swivel Wheel Screw-In Type
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Material | Wheel Characteristics | Thread Dia. | Wheel Dia. D (mm) | Wheel Width (mm) | Swivel Radius (mm) | Load Category | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8.99 € | 1 | 12 Days | - | 68 | ~35.00 | 25 | Elastomer | Chemical Resistance | M12 | 50 | 20 | 47 | Light Load | ||
8.78 € | 1 | 5 Days | - | 68 | 35.01~80.00 | 40 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 50 | 21 | 47 | Light Load | ||
10.29 € | 1 | 12 Days | - | 68 | ~35.00 | 30 | Rubber | NA | M12 | 50 | 20 | 47 | Light Load | ||
10.75 € | 1 | 5 Days | - | 68 | 35.01~80.00 | 38 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 50 | 21 | 47 | Light Load | ||
11.45 € | 1 | 12 Days | - | 85 | 35.01~80.00 | 40 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 65 | 21 | 56 | Light Load | ||
13.69 € | 1 | 12 Days | - | 85 | ~35.00 | 30 | Rubber | NA | M12 | 65 | 21 | 56 | Light Load | ||
14.07 € | 1 | 5 Days | - | 85 | 35.01~80.00 | 40 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 65 | 21 | 56 | Light Load | ||
11.11 € 7.78 € | 1 | Available |
Same day
Stock | - | 95 | 35.01~80.00 | 50 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 75 | 21 | 65 | Light/Medium Load | |
15.42 € | 1 | 12 Days | - | 95 | 35.01~80.00 | 40 | Rubber | NA | M12 | 75 | 21 | 65 | Light Load | ||
15.80 € | 1 | 12 Days | - | 95 | 35.01~80.00 | 45 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 75 | 21 | 65 | Light Load | ||
17.07 € | 1 | 12 Days | - | 126 | 35.01~80.00 | 50 | Elastomer | Chemical Resistance | M12 | 100 | 27 | 82 | Light/Medium Load | ||
21.79 € | 1 | 12 Days | - | 126 | 35.01~80.00 | 50 | Elastomer | Chemical Resistance | M16 | 100 | 27 | 82 | Light/Medium Load | ||
16.11 € | 1 | 7 Days | 10 | 126 | 35.01~80.00 | 60 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 100 | 25 | 82 | Light/Medium Load | ||
16.26 € 11.38 € | 1 | Available |
Same day
Stock | 10 | 126 | 35.01~80.00 | 60 | [Nylon] Nylon | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M16 | 100 | 25 | 82 | Light/Medium Load | |
19.97 € | 1 | 12 Days | - | 126 | 35.01~80.00 | 60 | [Others] Nylon Foil Rubber | NA | M12 | 100 | 27 | 82 | Light/Medium Load | ||
25.54 € | 1 | 12 Days | - | 126 | 35.01~80.00 | 60 | [Others] Nylon Foil Rubber | NA | M16 | 100 | 27 | 82 | Light/Medium Load | ||
19.37 € | 1 | 7 Days | - | 126 | 35.01~80.00 | 50 | Rubber | NA | M12 | 100 | 25 | 82 | Light/Medium Load | ||
18.56 € 12.99 € | 1 |
Same day
Stock | - | 126 | 35.01~80.00 | 50 | Rubber | NA | M16 | 100 | 25 | 82 | Light/Medium Load | ||
20.81 € | 1 | 5 Days | - | 126 | 35.01~80.00 | 60 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M12 | 100 | 28 | 82 | Light/Medium Load | ||
25.72 € | 1 | 5 Days | - | 126 | 35.01~80.00 | 60 | [Urethane] Urethane | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance | M16 | 100 | 28 | 82 | Light/Medium Load |
Loading...
Basic information
| Caster Type | Screw-In Type | Stopper | NA | Fitting Material | Stainless Steel |
|---|---|---|---|---|---|
| Application | Commercial Facilities Display / Streamlining of Logistics, Hand Truck | Wheel Bearings | NA |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- ~35.00
- 35.01~80.00
-
Allowable Load(daN)
-
Wheel Material
- Rubber
- Nylon
- Urethane
- Others
- Elastomer
-
Wheel Characteristics
- Abrasion Resistance
- Gasoline Resistance (Light Oil included)
- Oil Resistance
- Chemical Resistance
- NA
-
Thread Dia.
-
Wheel Dia. D(mm)
-
Wheel Width(mm)
-
Swivel Radius(mm)
-
Type
- SUS-ET-EL
- SUS-ET-N
- SUS-ET-NR
- SUS-ET-R
- SUS-ET-RH
- SUS-ET-UR
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 7 Days or Less
- 12 Days or Less
Optional Attributes
- There is a 10% discount on the price per unit at 20 or more items.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
