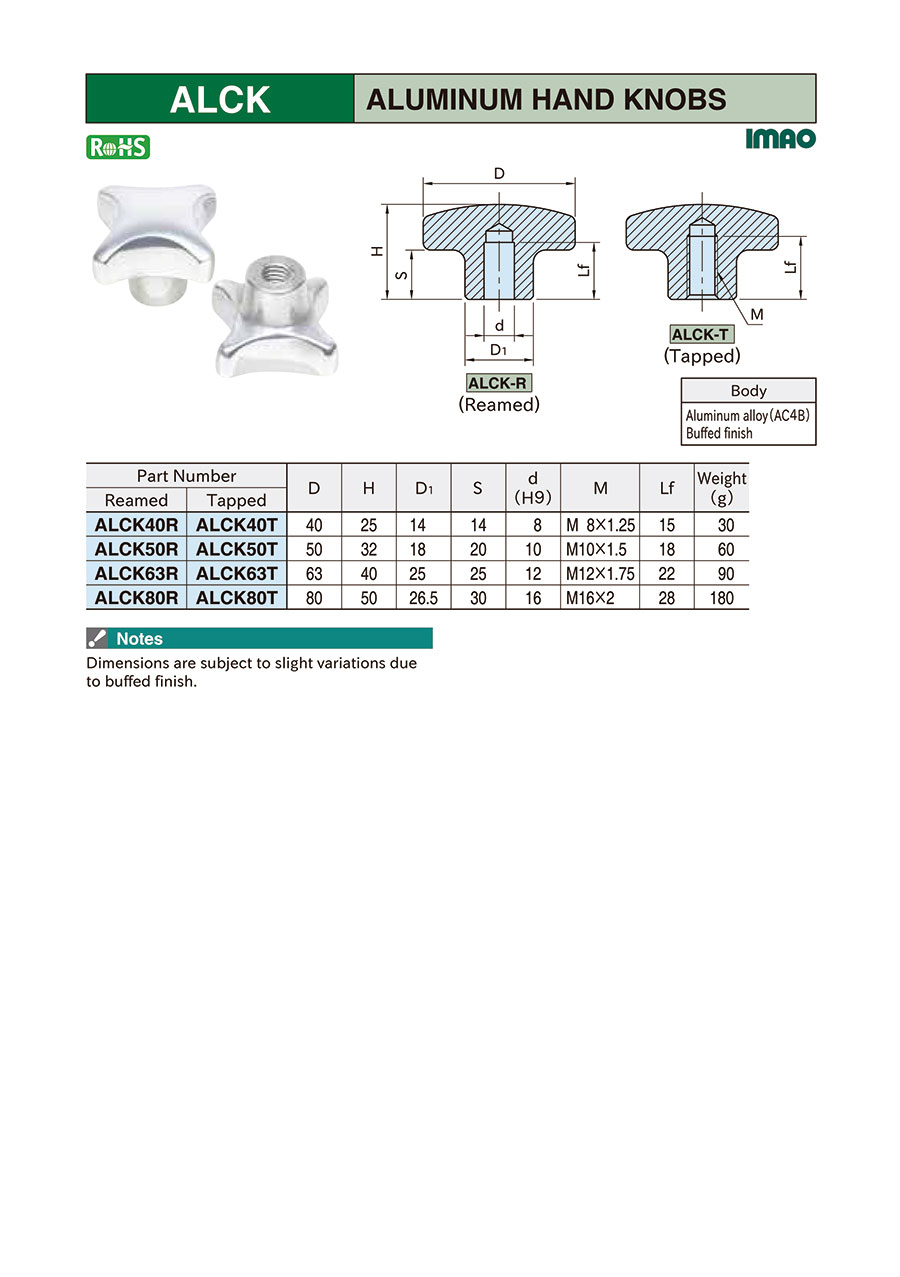

    Aluminum Cross Knob (ALCK)

    Aluminum Cross Knob (ALCK)

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    ALCK40R
    ALCK40T
    ALCK50R
    ALCK50T
    ALCK63R
    ALCK63T
    ALCK80R
    ALCK80T

    Mounting Section Type

    Mounting Section Diameter (mm) and/or Diameter

    Mounting Section Length L

    (mm)

    Female Thread, Round hole processing

    Set Screw Thread Machining

    Main Body Outer Diameter D

    (φ)

    Main Body Height H

    (mm)

    		RoHS?Minimum order quantity
    Round Hole
    8
    15
    Blind Hole / Accuracy Hole
    N/A
    40
    25
    10
    1 pieces
    Female Thread
    M8
    15
    Blind Hole
    -
    40
    25
    10
    1 pieces
    Round Hole
    10
    18
    Blind Hole / Accuracy Hole
    N/A
    50
    32
    10
    1 pieces
    Female Thread
    M10
    18
    Blind Hole
    -
    50
    32
    10
    1 pieces
    Round Hole
    12
    22
    Blind Hole / Accuracy Hole
    N/A
    63
    40
    10
    1 pieces
    Female Thread
    M12
    22
    Blind Hole
    -
    63
    40
    10
    1 pieces
    Round Hole
    16
    28
    Blind Hole / Accuracy Hole
    N/A
    80
    50
    10
    1 pieces
    Female Thread
    M16
    28
    Blind Hole
    -
    80
    50
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    27.51 €
    ( 32.74 € )
    8 working days
    21.95 €11.41 €
    ( 13.58 € )
    Stock item: 1 working dayAvailable for same-day shipping
    31.15 €
    ( 37.07 € )
    8 working days
    31.15 €
    ( 37.07 € )
    8 working days
    42.76 €
    ( 50.88 € )
    9 working days
    42.76 €
    ( 50.88 € )
    6 working days
    61.67 €
    ( 73.39 € )
    8 working days
    61.67 €
    ( 73.39 € )
    6 working days
  • 1

    • More Information

    Basic information

    Aluminum cross knob that uses a cross shape and which can strongly tighten. It is also light.
