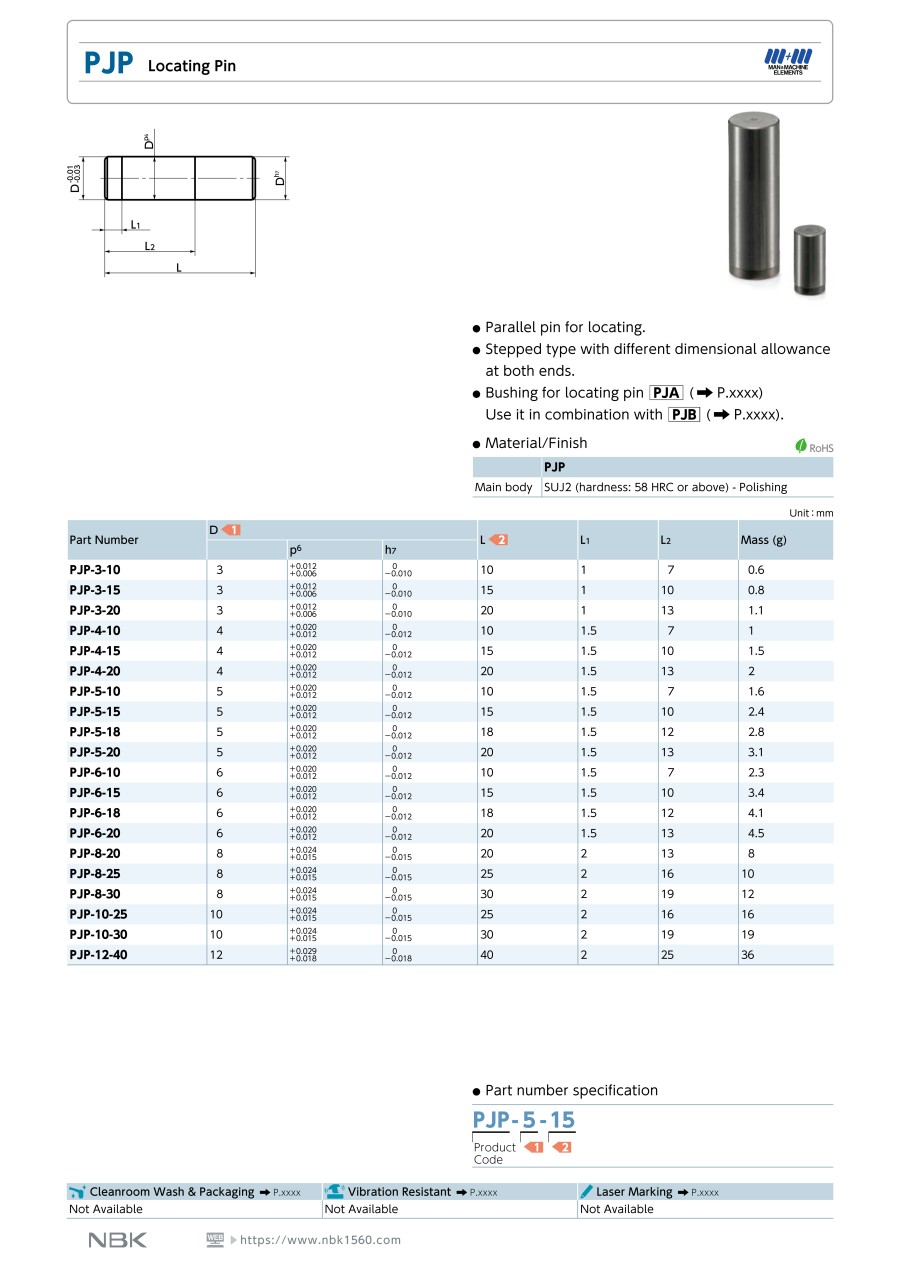

Centring pins / round / flat head / press-fit spigot
- Promotional pricing
- Volume Discount
· Positioning use parallel pin.
· Dual tip dimensions tolerance joggling type.
· Bushing for positioning pin use PJS/PJB to be used together.
· Material / finish: SUJ2 (hardness 58HRC -) polished.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| PJP-3X10 |
| PJP-3X15 |
| PJP-3X20 |
| PJP-4X10 |
| PJP-4X15 |
| PJP-4X20 |
| PJP-5X10 |
| PJP-5X15 |
| PJP-5X18 |
| PJP-5X20 |
| PJP-6X10 |
| PJP-6X15 |
| PJP-6X18 |
| PJP-6X20 |
| PJP-8X20 |
| PJP-8X25 |
| PJP-8X30 |
| PJP-10X25 |
| PJP-10X30 |
| PJP-12X40 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | [D] Diameter (Mounting Side) (mm) | [P] Diameter (Head) (mm) | Length (mm) | |
|---|---|---|---|---|---|---|---|
8.95 € | 1 | 9 Days | 3 | 3 | 10 | ||
8.95 € | 1 | 9 Days | 3 | 3 | 15 | ||
8.95 € | 1 | 9 Days | 3 | 3 | 20 | ||
7.81 € | 1 | 9 Days | 4 | 4 | 10 | ||
7.82 € 4.14 € | 1 |
Same day
Stock | 4 | 4 | 15 | ||
9.49 € | 1 | 9 Days | 4 | 4 | 20 | ||
8.12 € 3.74 € | 1 | Available |
Same day
Stock | 5 | 5 | 10 | |
9.63 € | 1 | 9 Days | 5 | 5 | 15 | ||
9.65 € | 1 | 9 Days | 5 | 5 | 18 | ||
7.98 € 4.39 € | 1 |
Same day
Stock | 5 | 5 | 20 | ||
10.33 € | 1 | 9 Days | 6 | 6 | 10 | ||
8.53 € 4.69 € | 1 |
Same day
Stock | 6 | 6 | 15 | ||
8.53 € 4.69 € | 1 |
Same day
Stock | 6 | 6 | 18 | ||
10.35 € | 1 | 9 Days | 6 | 6 | 20 | ||
10.38 € | 1 | 9 Days | 8 | 8 | 20 | ||
10.40 € | 1 | 9 Days | 8 | 8 | 25 | ||
8.60 € 4.56 € | 1 |
Same day
Stock | 8 | 8 | 30 | ||
10.85 € | 1 | 9 Days | 10 | 10 | 25 | ||
9.09 € 4.91 € | 1 |
Same day
Stock | 10 | 10 | 30 | ||
11.02 € | 1 | 9 Days | 12 | 12 | 40 |
Loading...
Basic information
| Type (Basic Shape) | Straight/With Air Vent | Shape (Head, Outline View) | Round | Shape (Head, Tip View) | Flat |
|---|---|---|---|---|---|
| Shape (Head, Mounting Method) | NA | Type (Mounting Side) | Straight(Press Fit) | Material | Steel |
| Material (Steel) | EN 1.3505 Equiv. | Surface Treatment | Buffed Surface | Heat Treatment | NA |
| ISO Tolerance (Mounting Side) | -0.01/-0.03 | ISO Tolerance (Head) | h7 |
