Configure
- Main Body Material
- Steel
- Steel
- Stainless Steel
- Stainless Steel
- Tip material
- Steel
- Steel
- Stainless Steel
- Stainless Steel
- Shaft O.D.(mm)
- 8
- 10
- 12
- 16
- 20
- S(mm)
- 4
- 5
- 6
- 8
- 10
- Main Body Surface Treatment
- Tip heat treatment
- d(Ø)
- 4
- 5
- 6
- 8
- 10
- L(mm)
- 29.5
- 34.5
- 41.7
- 54
- 61
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 6 working days
- Within 8 working days

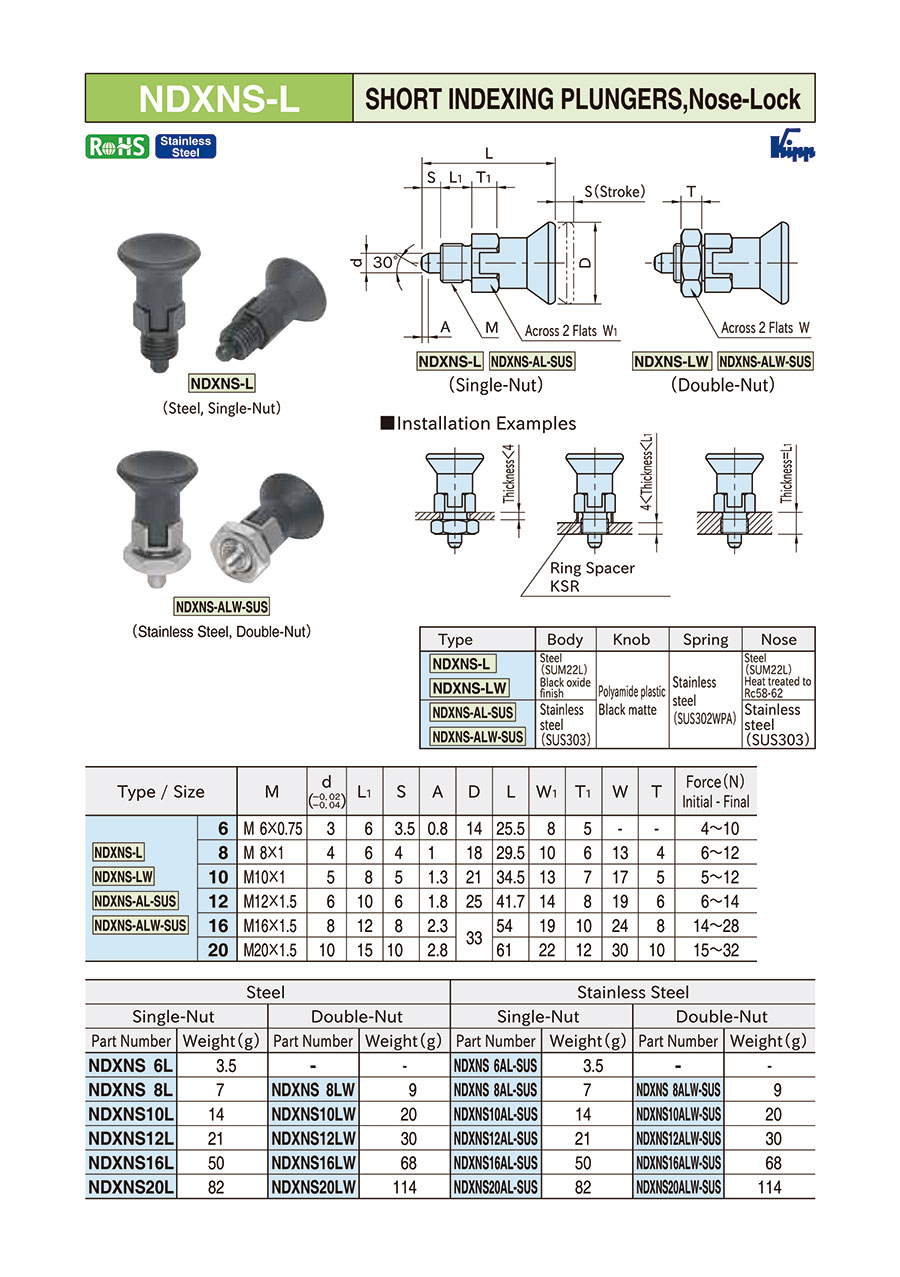

Index Plunger (Short Model Nose Model Lock) (NDXNS-L)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
44.94 € ( 53.48 € ) | 6 working days |
47.21 € ( 56.18 € ) | 8 working days |
30.36 € ( 36.13 € ) | 6 working days |
31.50 € ( 37.48 € ) | 8 working days |
33.77 € ( 40.19 € ) | 8 working days |
34.95 € ( 41.59 € ) | 8 working days |
23.67 € ( 28.17 € ) | 6 working days |
24.84 € ( 29.56 € ) | 8 working days |
34.95 € ( 41.59 € ) | 8 working days |
37.27 € ( 44.35 € ) | 6 working days |
25.97 € ( 30.90 € ) | 6 working days |
26.05 € ( 31.00 € ) | 8 working days |
48.65 € ( 57.89 € ) | 8 working days |
53.28 € ( 63.40 € ) | 8 working days |
28.45 € ( 33.86 € ) | 8 working days |
29.71 € ( 35.35 € ) | 8 working days |
91.55 € ( 108.94 € ) | 8 working days |
95.18 € ( 113.26 € ) | 8 working days |
45.53 € ( 54.18 € ) | 6 working days |
48.02 € ( 57.14 € ) | 8 working days |
More Information
Basic information
This has the nose-locking style that keeps the pin in a retracted state. The threaded part is short so it is ideal for mounting to plates and such.
[Features]
- It is a hand operated index plunger. Pull the knob and the nose retracts and the position release is easily done, let go of the knob and the nose returns to the original state by the force of the internal spring.
- The nose locking type can be locked (fixed) by rotating the knob 90° while it is pulled and the nose is retracted.
- Recess processing has been performed on the threaded part
