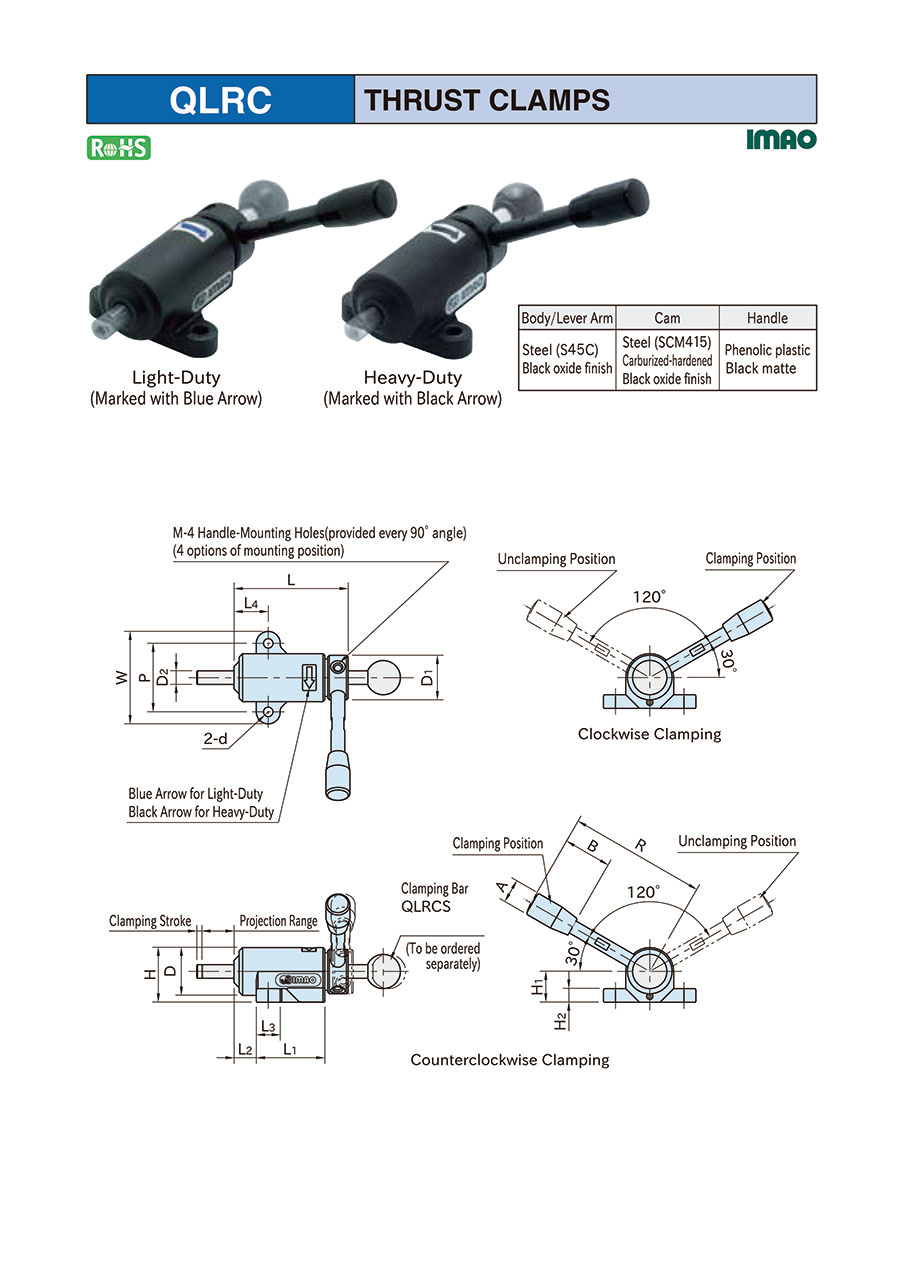

Reach Clamp (QLRC)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| QLRC-08L |
| QLRC-08L-L |
| QLRC-08R |
| QLRC-08R-L |
| QLRC-12L |
| QLRC-12L-L |
| QLRC-12R |
| QLRC-12R-L |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Max. Clamping Force (N) | Clamping force (N) | Stroke S (mm) | Operation Direction | Clamping force (N) | Outer Diameter D (φ) | Outer Diameter D1 (φ) | Length L (mm) | Thread Diameter M | Specifications | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
171.98 € | 1 | 6 Days | 10 | 100 to 1000 | 500 | 1.5 | Left | 500 | 28 | 26 | 68.5 | 5X0.8 | For Heavy Load | ||
171.98 € | 1 | 6 Days | 10 | 100 to 1000 | 200 | 1.5 | Left | 200 | 28 | 26 | 68.5 | 5X0.8 | Used for Light load | ||
171.98 € | 1 | 6 Days | 10 | 100 to 1000 | 500 | 1.5 | Right | 500 | 28 | 26 | 68.5 | 5X0.8 | For Heavy Load | ||
171.98 € | 1 | 6 Days | 10 | 100 to 1000 | 200 | 1.5 | Right | 200 | 28 | 26 | 68.5 | 5X0.8 | Used for Light load | ||
225.31 € | 1 | 6 Days | 10 | 1000 to 3000 | 1400 | 2.3 | Left | 1400 | 40 | 36 | 93.7 | 6X1 | For Heavy Load | ||
225.42 € | 1 | 8 Days | 10 | 100 to 1000 | 700 | 2.3 | Left | 700 | 40 | 36 | 93.7 | 6X1 | Used for Light load | ||
225.31 € | 1 | 8 Days | 10 | 1000 to 3000 | 1400 | 2.3 | Right | 1400 | 40 | 36 | 93.7 | 6X1 | For Heavy Load | ||
225.42 € | 1 | 6 Days | 10 | 100 to 1000 | 700 | 2.3 | Right | 700 | 40 | 36 | 93.7 | 6X1 | Used for Light load |
Loading...
Basic information
| Material | EN 1.1191 Equiv. | Type | Main Body | Surface Treatment | Iron Tetroxide Coating |
|---|
Configure
Basic Attributes
-
Max. Clamping Force(N)
- 100 to 1000
- 1000 to 3000
-
Clamping force(N)
-
Stroke S(mm)
-
Operation Direction
- Left
- Right
-
Clamping force(N)
- 200
- 500
- 700
- 1400
-
Outer Diameter D(φ)
- 28
- 40
-
Outer Diameter D1(φ)
- 26
- 36
-
Length L(mm)
- 68.5
- 93.7
-
Thread Diameter M
- 5X0.8
- 6X1
-
Specifications
- For Heavy Load
- Used for Light load
-
Type
- QLRC
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
