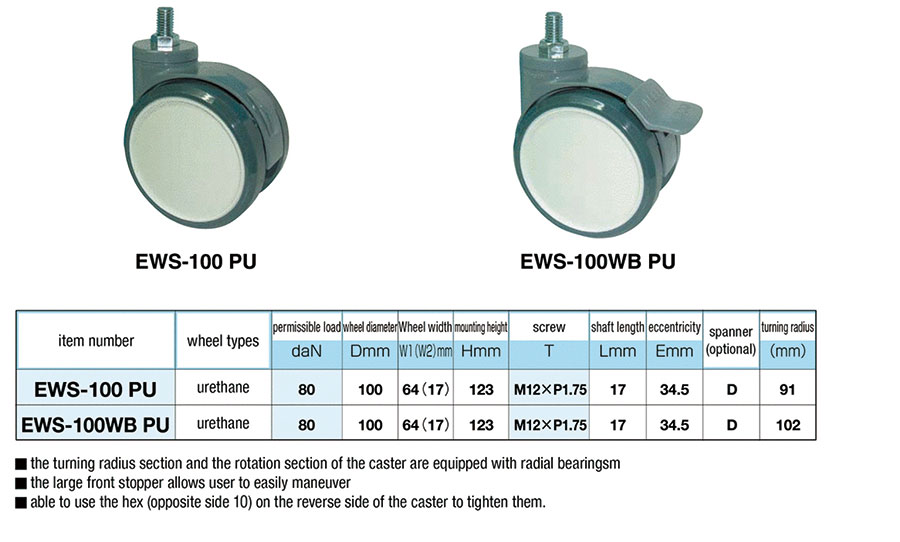

Resin Castors EWS
Urethane wheel design caster. The type with stopper stops rotation of the wheel and swiveling simultaneously.
[Features]
· The WB stopper stops rotation of the wheel and swiveling simultaneously.
· The W-12 stopper stops rotation of the wheel and swiveling simultaneously.
[Features]
· The WB stopper stops rotation of the wheel and swiveling simultaneously.
· The W-12 stopper stops rotation of the wheel and swiveling simultaneously.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| EWS-100PU |
| EWS-100WBPU |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stopper | Swivel Radius (mm) | Stopper Type | |
|---|---|---|---|---|---|---|---|---|
31.84 € | 1 | 8 Days | 10 | NA | 91 | - | ||
35.43 € | 1 | 8 Days | 10 | With Double Stopper (Rotation + Turning) | 102 | WB |
Loading...
Basic information
| Caster Type | Resin / Dual Wheels | Mounting Height H(mm) | 123 | Load Range(daN) | 35.01~80.00 |
|---|---|---|---|---|---|
| Allowable Load(daN) | 80 | Wheel Material | Urethane | Wheel Characteristics | Oil Resistance |
| Fitting Material | Resin | Thread Dia. | M12×P1.75 | Wheel Dia. D(mm) | 100 |
| Wheel Width B(mm) | 64 | Application | Commercial Facilities/Displays/Product Stands / Steel/Woodwork Furniture / OA equipment/information and communication equipment / Factory facilities | Load Category | Medium Load |
| Wheel Bearings | Available |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
