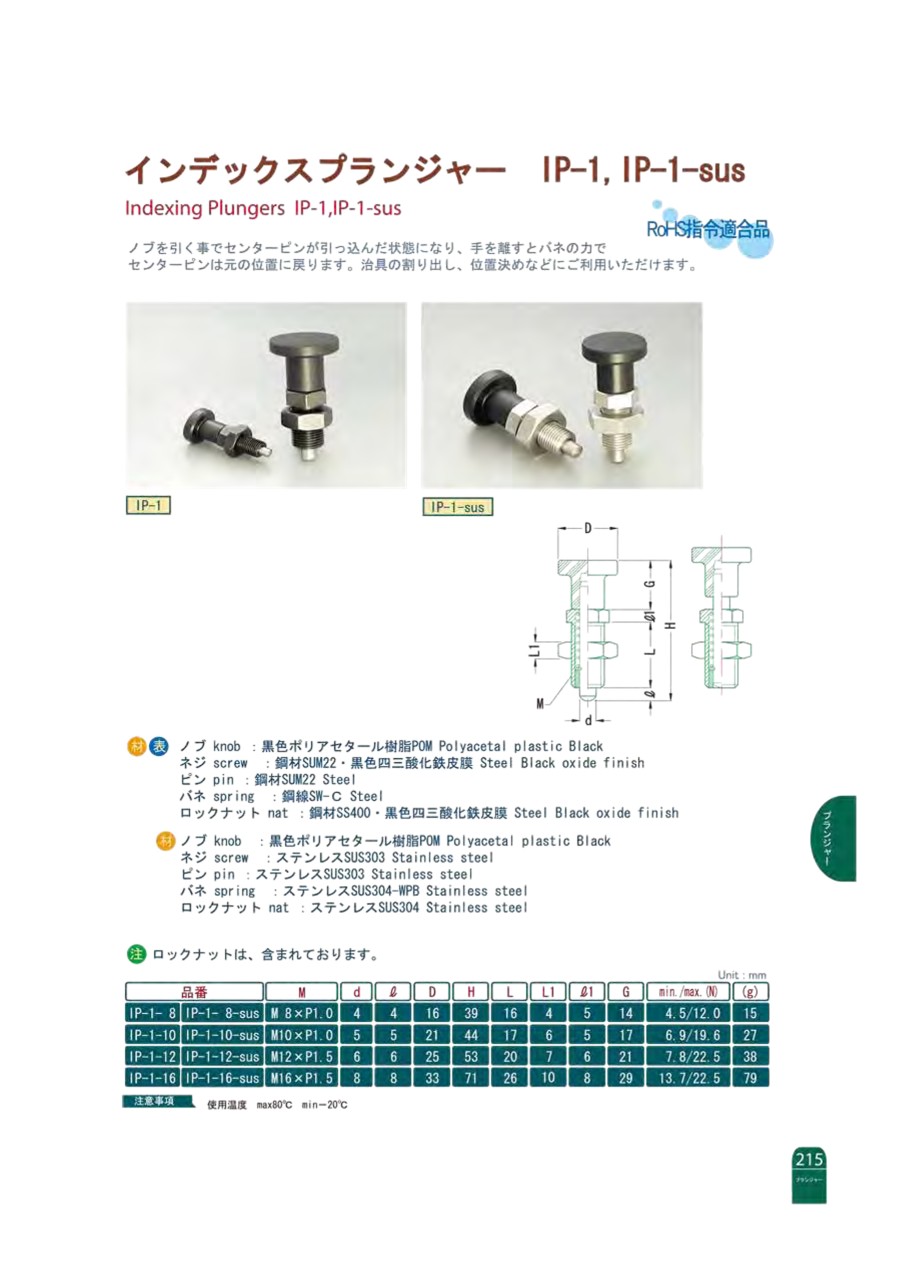

    Indexing Plunger IP-1

    Indexing Plunger IP-1

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    IP-1-8
    IP-1-10
    IP-1-12
    IP-1-16

    Body O.D./Thread M

    (mm)

    Stroke l

    (mm)

    Pin Outer Diameter d

    (Ø)

    Length

    (mm)

    Outer Diameter M [Details]

    		RoHS?Minimum order quantity
    8
    4
    4
    39
    M8
    10
    1 pieces
    10
    5
    5
    44
    M10
    10
    1 pieces
    12
    6
    6
    53
    M12
    10
    1 pieces
    16
    8
    8
    71
    M16
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    15.41 €
    ( 18.34 € )
    8 working days
    12.25 €6.00 €
    ( 7.14 € )
    Stock item: 1 working dayAvailable for same-day shipping
    13.83 €6.22 €
    ( 7.40 € )
    Stock item: 1 working dayAvailable for same-day shipping
    18.12 €9.24 €
    ( 11.00 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    Pulling the knob retracts the center pin; releasing it returns it to its original position via spring force. Use to calculate and adjust jig positions.
