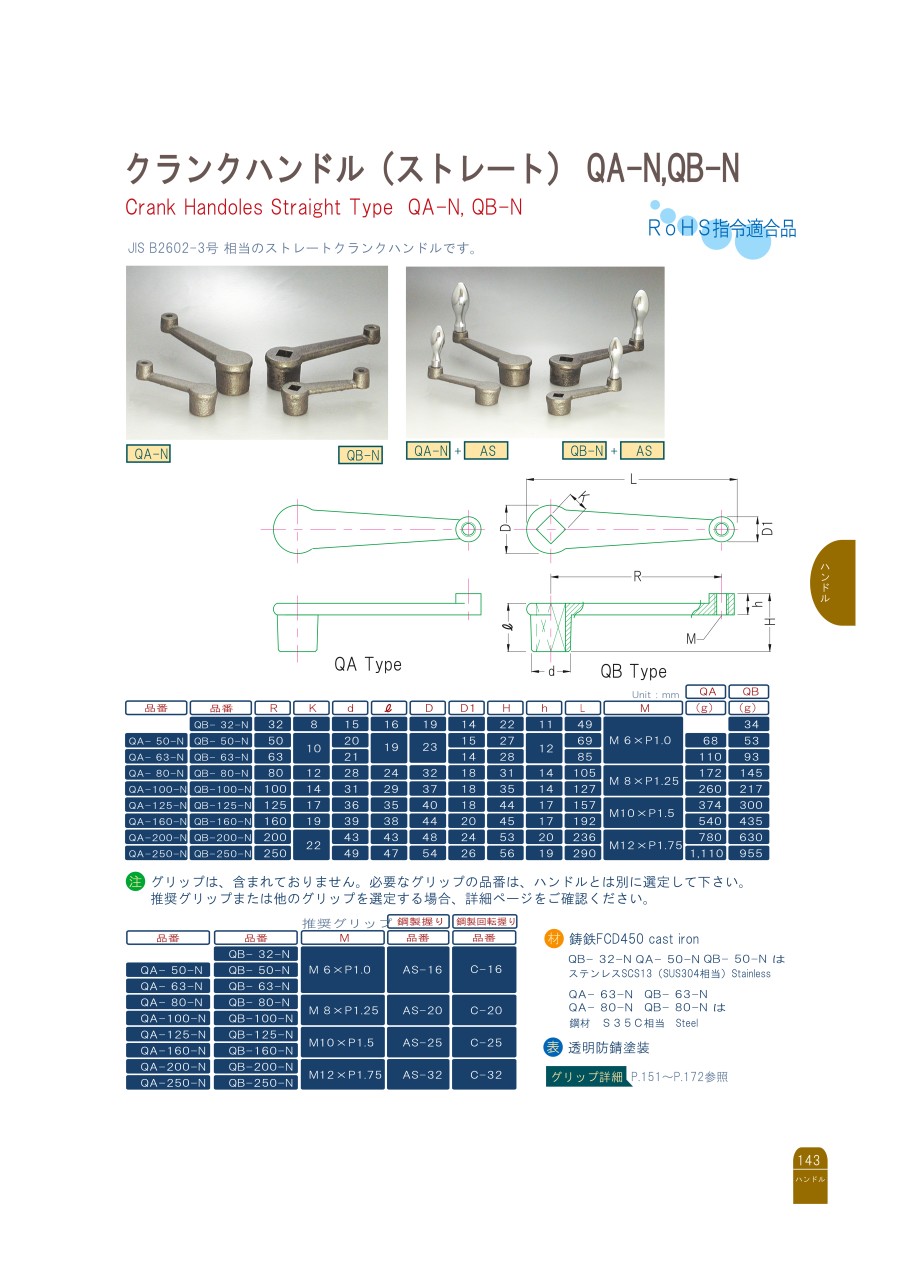

    Crank Handle (Straight) QA-N / QB-N

    Crank Handle (Straight) QA-N / QB-N

    Part number:

    Still undefined. 17 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    QA-50-N
    QA-63-N
    QA-80-N
    QA-100-N
    QA-125-N
    QA-160-N
    QA-200-N
    QA-250-N
    QB-32-N
    QB-50-N
    QB-63-N
    QB-80-N
    QB-100-N
    QB-125-N
    QB-160-N
    QB-200-N
    QB-250-N

    Handle, Material

    Mounting Section, Hole Machining

    Handle Surface Treatment

    Thickness of Handle

    (mm)

    Mounting Section Outer Diameter

    (mm)

    Square hole diameter K

    (mm)

    Set Screw Flat Machining

    Rotating Radius R

    Recommended Grip

    		Minimum order quantity
    Stainless Steel (EN 1.4308 Equiv.)
    NA
    NA
    26
    20
    -
    -
    50
    AS-16,C-16
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    28
    23
    -
    -
    63
    AS-16,C-16
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    31
    28
    -
    -
    80
    AS-20,C-20
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    35
    31
    -
    -
    100
    AS-20,C-20
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    44
    36
    -
    -
    125
    AS-25,C-25
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    45
    39
    -
    -
    160
    AS-25,C-25
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    53
    43
    -
    -
    200
    AS-32,C-32
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    NA
    Transparent Anti-rust Paint
    56
    48
    -
    -
    250
    AS-32,C-32
    1 pieces
    Stainless Steel (EN 1.4308 Equiv.)
    Square hole (through hole)
    NA
    22
    15
    8
    NA
    32
    AS-16,C-16
    1 pieces
    Stainless Steel (EN 1.4308 Equiv.)
    Square hole (through hole)
    NA
    26
    20
    10
    NA
    50
    AS-16,C-16
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    28
    23
    10
    NA
    63
    AS-16,C-16
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    31
    28
    12
    NA
    80
    AS-20,C-20
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    35
    31
    14
    NA
    100
    AS-20,C-20
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    44
    36
    17
    NA
    125
    AS-25,C-25
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    45
    39
    19
    NA
    160
    AS-25,C-25
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    53
    43
    22
    NA
    200
    AS-32,C-32
    1 pieces
    [Steel] Cast Iron (EN-JS 1040 Equiv.)
    Square hole (through hole)
    Transparent Anti-rust Paint
    56
    48
    22
    NA
    250
    AS-32,C-32
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    6.92 €
    ( 8.23 € )
    7 working days
    8.05 €
    ( 9.58 € )
    7 working days
    9.46 €
    ( 11.26 € )
    7 working days
    14.27 €
    ( 16.98 € )
    7 working days
    18.46 €10.15 €
    ( 12.08 € )
    Stock item: 1 working dayAvailable for same-day shipping
    26.86 €
    ( 31.96 € )
    9 working days
    34.53 €
    ( 41.09 € )
    7 working days
    46.39 €
    ( 55.20 € )
    7 working days
    10.94 €
    ( 13.02 € )
    7 working days
    13.13 €
    ( 15.62 € )
    7 working days
    15.73 €
    ( 18.72 € )
    7 working days
    21.88 €
    ( 26.04 € )
    7 working days
    26.36 €
    ( 31.37 € )
    7 working days
    25.99 €13.00 €
    ( 15.47 € )
    Stock item: 1 working dayAvailable for same-day shipping
    39.70 €
    ( 47.24 € )
    9 working days
    56.74 €
    ( 67.52 € )
    7 working days
    69.69 €
    ( 82.93 € )
    7 working days
  • 1

    • More Information

    Basic information

    A JIS B2602-3-equivalent straight crank handle.
