KONISHI MFG

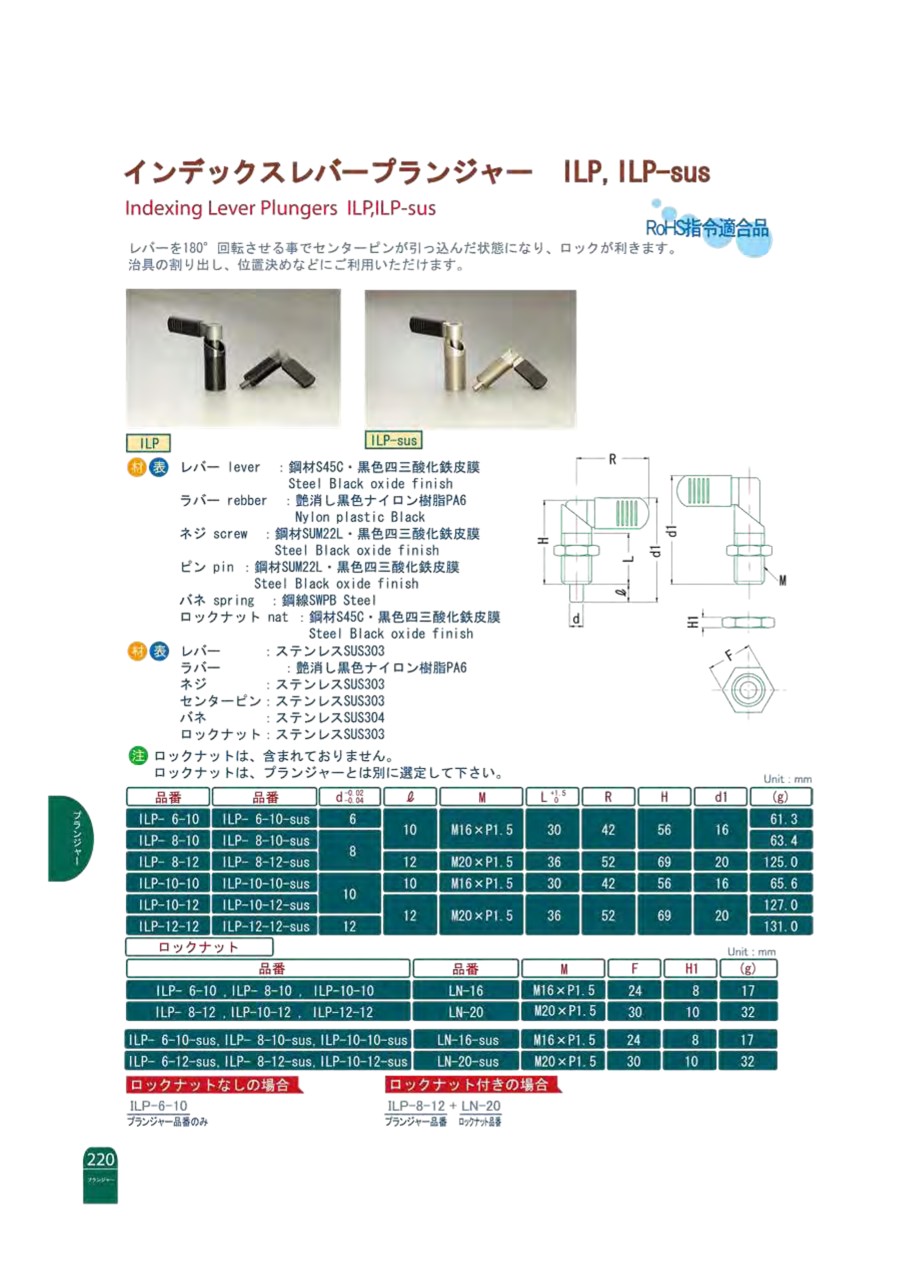

Indexing Lever Plungers (Stainless Steel) ILP-Sus

Indexing Lever Plungers (Stainless Steel) ILP-Sus

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    ILP-10-10-SUS
    ILP-10-12-SUS
    ILP-12-12-SUS

    Body O.D./Thread M

    (mm)

    Stroke l

    (mm)

    Pin Outer Diameter d

    (Ø)

    Length

    (mm)

    Outer Diameter M [Details]

    		RoHS?Minimum order quantity
    16
    10
    10
    56
    M16
    10
    1 pieces
    20
    12
    10
    69
    M20
    10
    1 pieces
    20
    12
    12
    69
    M20
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    112.42 €
    ( 133.78 € )
    7 working days
    129.33 €
    ( 153.90 € )
    7 working days
    129.37 €
    ( 153.95 € )
    7 working days
  • 1

    • More Information

    Basic information

    Rotate the lever 180° to retract the center pin and engage the lock. Use to calculate and adjust the position of jigs.
