OMRON

Type A High Capacity Basic Switch

Type A High Capacity Basic Switch

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1

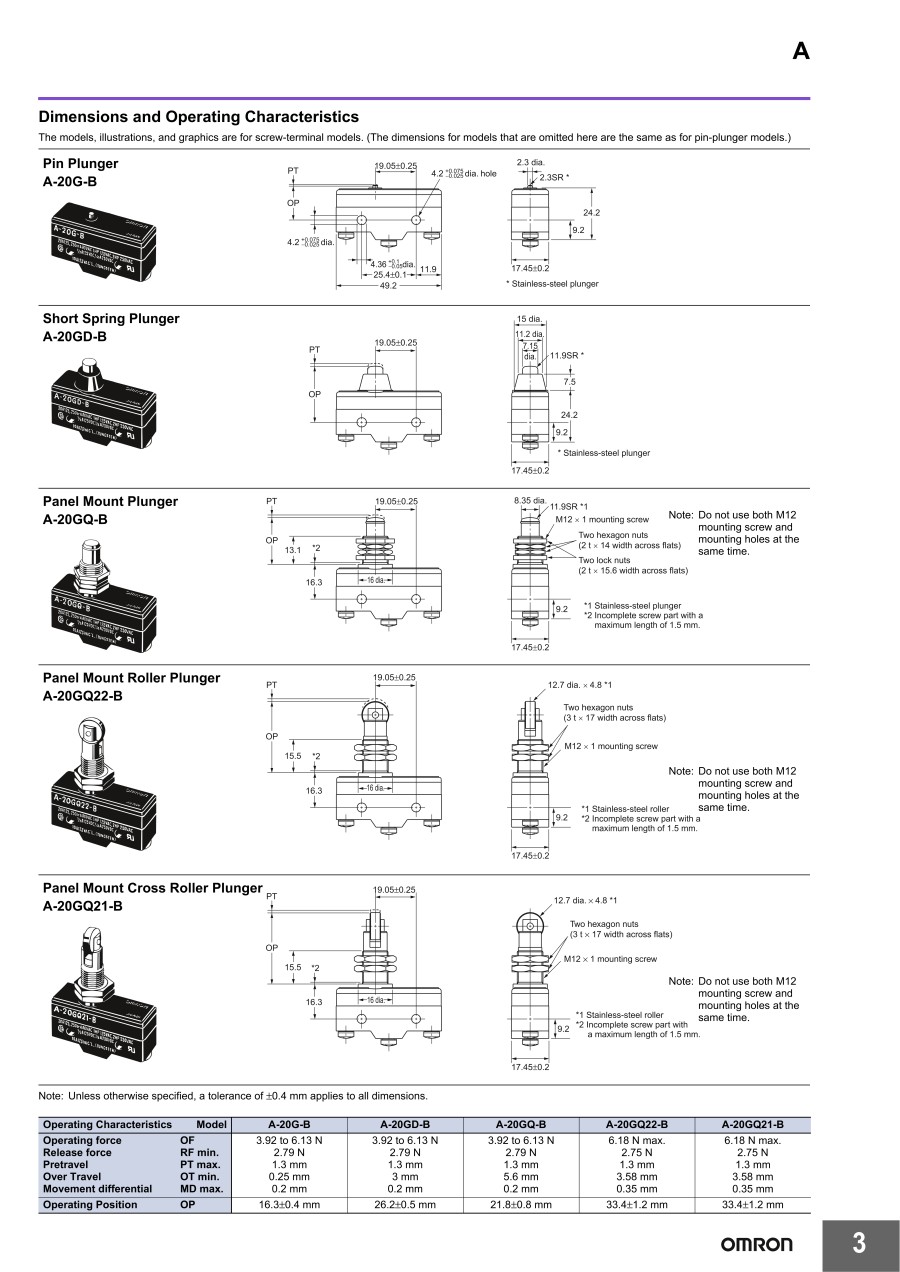

    • Part number
    A-20G-B
    A-20GD-B
    A-20GQ22-B
    A-20GQ-B
    A-20GV22-B
    A-20GV-B

    Detector Shape

    Lever Shape

    Kings of Plunger Type

    Required force to push side, O.F.

    (N)

    Movement up to switching, P.T.

    (mm)

    Actuator type

    Required force for push side, O.F. (detailed numerical values)

    (N)

    		Minimum order quantity
    Plunger Type
    -
    Top Plunger
    ~7
    1.3
    Pin push button type
    3.92~6.13
    1 pieces
    Plunger Type
    -
    Top Plunger
    ~7
    1.3
    Spring short push button type
    3.92~6.13
    1 pieces
    Plunger Type
    -
    Roller Plunger
    ~7
    1.3
    Panel mounting roller, push button type
    6.18
    1 pieces
    Plunger Type
    -
    Top Plunger
    ~7
    1.3
    Panel mounted push button type
    3.92~6.13
    1 pieces
    Lever Shape (push)
    Roller Lever
    -
    ~2
    6.3
    Hinge roller short lever type
    1.57
    20 pieces
    Lever Shape (push)
    -
    -
    Up to 1
    15.9
    Hinge lever type
    0.69
    20 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    14.20 €
    ( 16.90 € )
    7 working days
    15.05 €
    ( 17.91 € )
    9 working days
    34.68 €
    ( 41.27 € )
    7 working days
    19.72 €
    ( 23.47 € )
    6 working days
    26.55 €
    ( 31.59 € )
    7 working days
    22.87 €
    ( 27.22 € )
    7 working days
  • 1

    • More Information

    Basic information

    [Features]
    · High capacity basic switch with current capacity 20A, inrush current 75A.
    · External form is same as Z type general-purpose basic switch except position of push button and it has an ability to withstand inrush current of 75A
