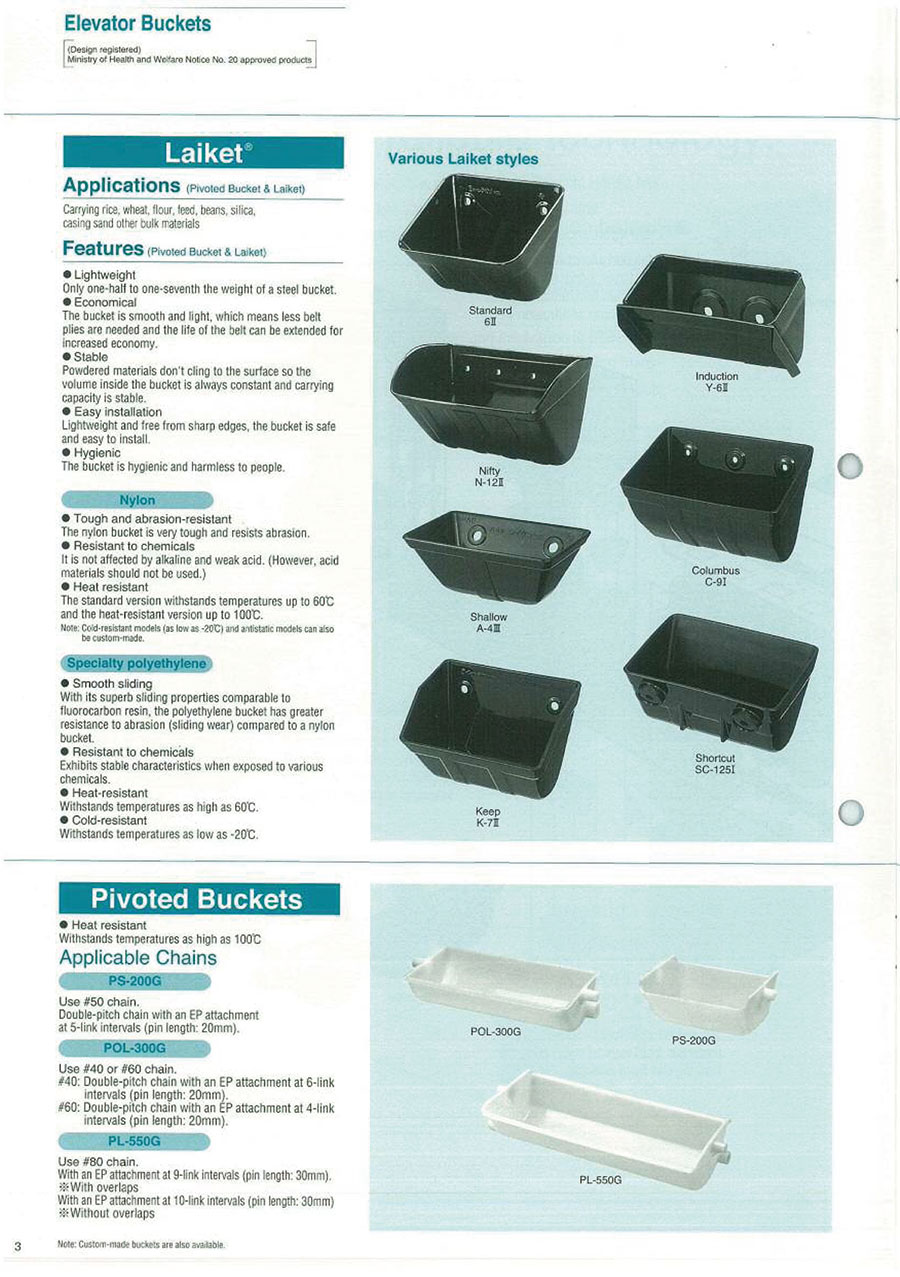

Elevator Bucket Riket Standard
- Volume Discount
· Lightweight
· Approximately 1/2 to 1/7 weight of iron bucket.
· Economical
· Because the surface is soft and light, the number of belt plies is low, and the life of the belt is long and economical.
· Stability
· There is no adhesion of powder, so the capacity can be kept constant, with stable transportation capacity.
· Easy installation
· There is no corner edge, and lightweight making installation work easy.
· Hygienic
· It is hygienic and harmless to the human body.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 3II-N-BK |
| 3II-N-WH |
| 4II-P-N-BK |
| 4III-N-BK |
| 4III-N-WH |
| 5II-N-BK |
| 5II-N-WH |
| 5III-N-BK |
| 6II-N-BK |
| 6II-N-WH |
| 8II-BK |
| 8II-N-WH |
| 10II-N-BK |
| 10II-N-WH |
| 12III-N-BK |
| 12III-N-WH |
| 31/2I-N-BK |
| 31/2II-P-N-BK |
| 41/2II-N-BK |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Pore back | A (mm) | B (mm) | D (mm) | Color | |
|---|---|---|---|---|---|---|---|---|---|
2.58 € | 1 | Available | 7 Days | Concave | 77 | 54 | 31 | Black | |
2.66 € | 1 | Available | 7 Days | Concave | 77 | 54 | 31 | White | |
3.11 € | 1 | Available | 7 Days | Concave | 98 | 73 | 45 | Black | |
3.25 € | 1 | Available | 7 Days | Flat | 98 | 73 | 45 | Black | |
3.49 € | 1 | Available | 7 Days | Flat | 98 | 73 | 45 | White | |
4.86 € | 1 | 7 Days | Flat | 120 | 84 | 45 | Black | ||
5.32 € | 1 | 7 Days | Flat | 120 | 84 | 45 | White | ||
4.86 € | 1 | Available | 7 Days | Concave | 120 | 84 | 45 | Black | |
8.03 € | 1 | Available | 7 Days | Flat | 146 | 102 | 52 | Black | |
9.18 € | 1 | Available | 7 Days | Flat | 146 | 102 | 52 | White | |
14.94 € | 1 | Available | 7 Days | Flat | 196 | 132 | 65 | Black | |
16.59 € | 1 | Available | 7 Days | Flat | 196 | 132 | 65 | White | |
20.67 € | 1 | Available |
Same day
Stock | Flat | 246 | 155 | 84 | Black | |
25.65 € | 1 | Available | 7 Days | Flat | 246 | 155 | 84 | White | |
26.61 € | 1 | 7 Days | Concave | 300 | 155 | 78 | Black | ||
30.69 € | 1 | Available | 7 Days | Concave | 300 | 155 | 78 | White | |
3.10 € | 1 | Available | 7 Days | Flat | 88 | 72 | 42 | Black | |
3.16 € | 1 | Available | 7 Days | Concave | 88 | 72 | 42 | Black | |
4.00 € | 1 | 7 Days | Concave | 107 | 75 | 47 | Black |
Loading...
Basic information
| Style | Standard | A´(mm) | - | Operating Temperature Min(°C) | -20 |
|---|---|---|---|---|---|
| Operating Temperature Max(°C) | 60 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Pore back
- Concave
- Flat
-
A(mm)
-
B(mm)
-
D(mm)
-
Color
- Black
- White
-
Type
- □-N
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
