Drawn Cup Roller Clutch HF
- Volume Discount
[Features]
· This one-way clutch comprises a thin‑walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, pressure springs and needle rollers.
· Can transmit torque in only one direction.
· The height of the radial direction cross-section is particularly low.
· High lock accuracy.
· The individual spring loading of the needle rollers ensures continuous contact between the shaft, needle rollers and ramps.
· High lock speed.
· This is due to the small mass of the locking parts and the resulting low moment of inertia.
· Low free-wheeling frictional torque.
· Lubricated using a lithium soap grease (DIN 51825-K2 E-25).
· Easy to install.
· The outer ring is press-fitted into the hole of the housing.
· It is not necessary to fix the direction of the shaft.
· Can be combined with drawn cup needle roller bearings from the HK and BK series.
· The height of the radial cross-section is the same.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available

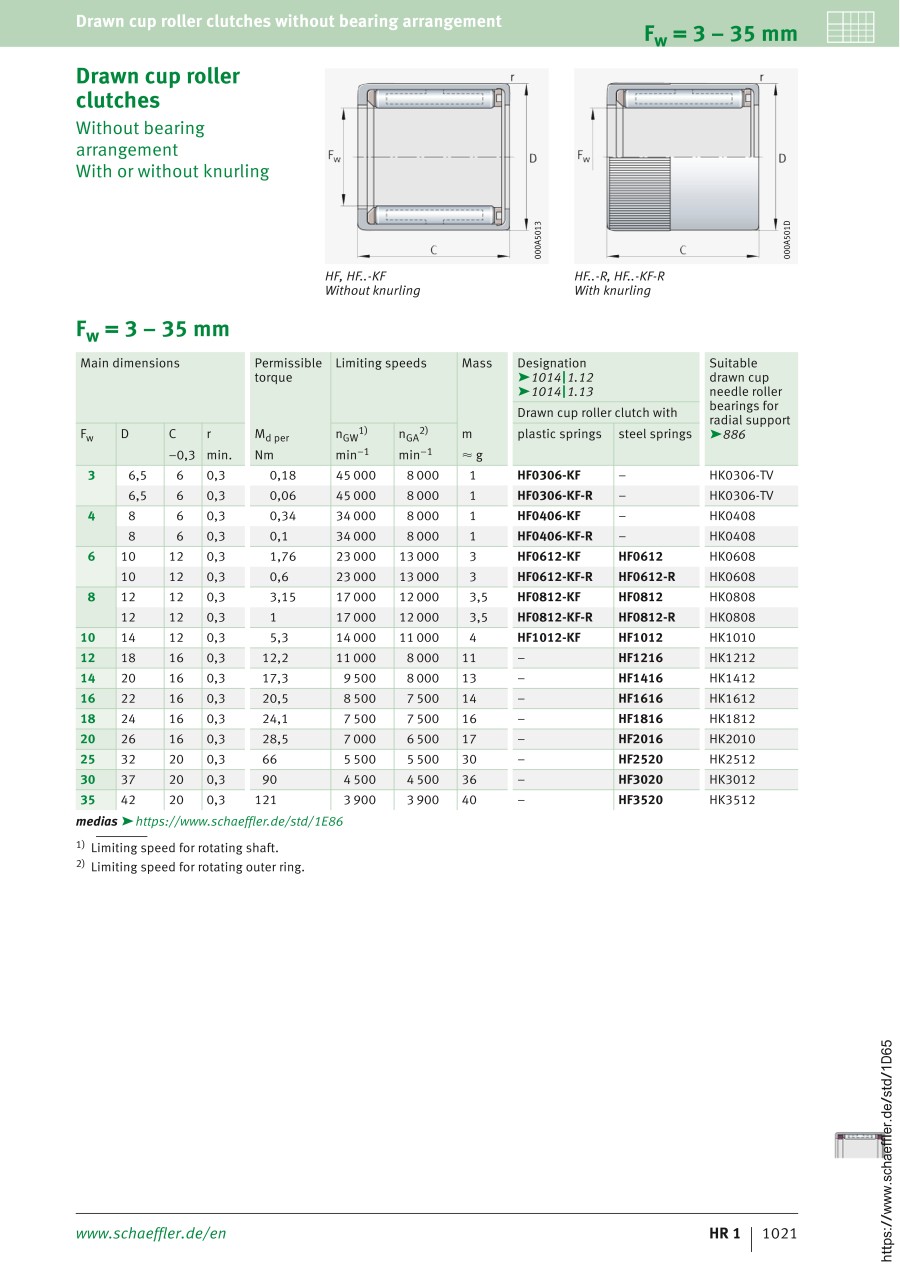

Part Number
|
|---|
| HF0306-KF |
| HF0406-KF |
| HF0812-KF |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Internal Diameter (mm) | Outer Diameter (mm) | Width (mm) | Allowable Torque (Nm) | Permissible speed in the case that the shaft is rotated | Allowable Rotational Speed When the Outer Ring Rotates | JAN Code | Order Code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
25.51 € | 1 | 5 Days | 10 | 3 | 6.5 | 6 | 0.18 | 45000 | 8000 | 4560120820019 | 219-7472 | ||
12.06 € | 1 | 5 Days | 10 | 4 | 8 | 6 | 0.34 | 34000 | 8000 | 4560120820026 | 219-7499 | ||
9.62 € | 1 | Available | 5 Days | 10 | 8 | 12 | 12 | 3.15 | 17000 | 12000 | 4560120820088 | 219-7561 |
Loading...
Basic information
| Raceway Ring Shape | One-Way Clutch | Load Direction | Radial | Specifications | Standard |
|---|
Configure
Basic Attributes
-
Internal Diameter(mm)
-
Outer Diameter(mm)
-
Width(mm)
-
Allowable Torque(Nm)
-
Permissible speed in the case that the shaft is rotated
-
Allowable Rotational Speed When the Outer Ring Rotates
-
Type
- HF
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
