NIPPON POP RIVETS AND FASTENERS

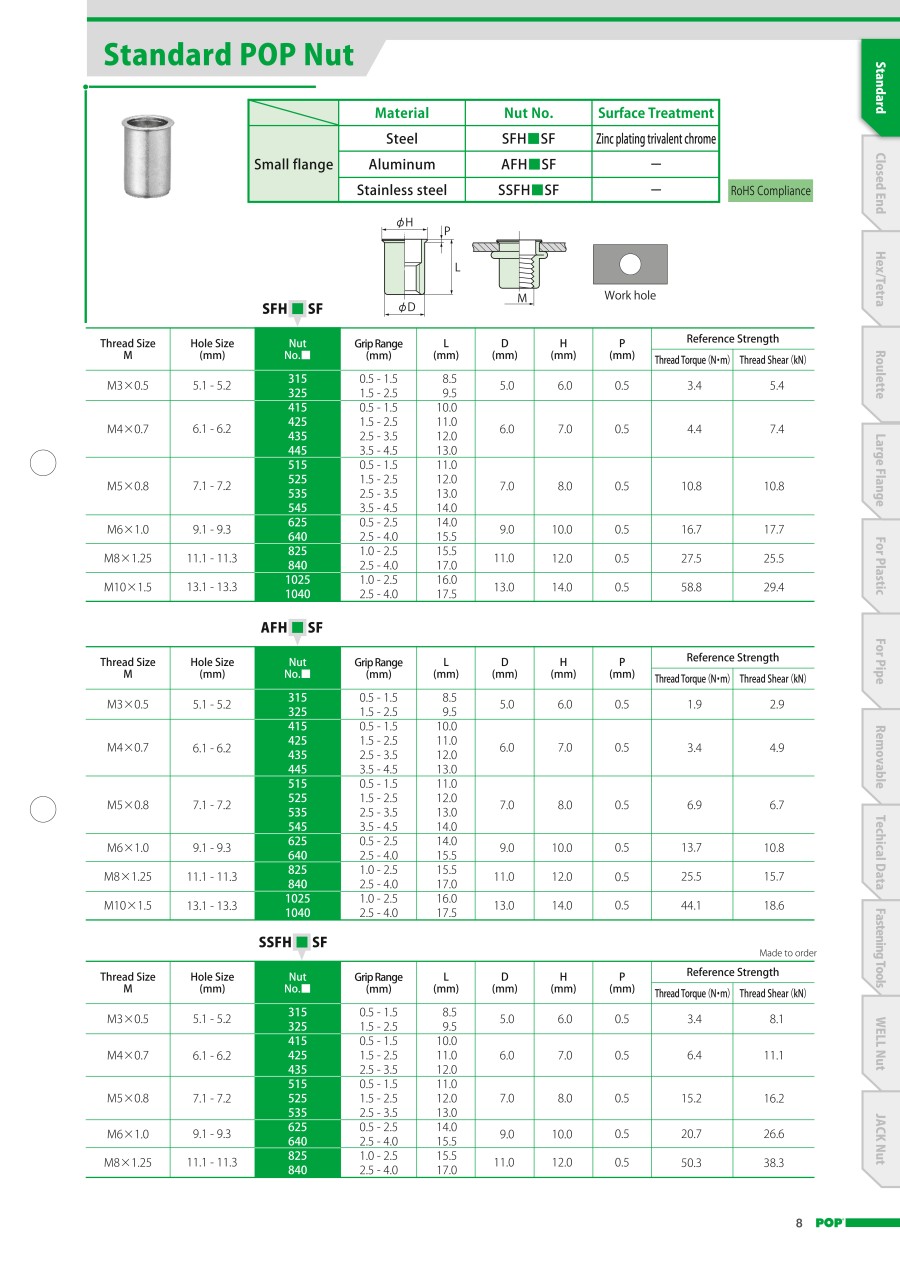

Pop Nut Standard Nut, Small Flange, Aluminum

Pop Nut Standard Nut, Small Flange, Aluminum

Part number:

Still undefined. 14 possible part numbers found.
Quantity:

Product information

Part number list

Number of items
  • 1
    • Part number
    AFH-1025SF
    AFH-1040SF
    AFH-315SF
    AFH-325SF
    AFH-415SF
    AFH-425SF
    AFH-435SF
    AFH-515SF
    AFH-525SF
    AFH-535SF
    AFH-625SF
    AFH-640SF
    AFH-825SF
    AFH-840SF

    Screw Nominal (M)

    Recommended Fastening Plate Thickness

    (mm)

    Pitch

    (mm)

    		RoHS?Minimum order quantity
    10
    1.0–2.5
    1.5
    10
    1 pieces
    10
    2.5~4.0
    1.5
    10
    1 pieces
    3
    0.5–1.5
    0.5
    10
    1 pieces
    3
    1.5–2.5
    0.5
    10
    1 pieces
    4
    0.5–1.5
    0.7
    10
    1 pieces
    4
    1.5–2.5
    0.7
    10
    1 pieces
    4
    2.5–3.5
    0.7
    10
    1 pieces
    5
    0.5–1.5
    0.8
    10
    1 pieces
    5
    1.5–2.5
    0.8
    10
    1 pieces
    5
    2.5–3.5
    0.8
    10
    1 pieces
    6
    0.5–2.5
    1
    10
    1 pieces
    6
    2.5~4.0
    1
    10
    1 pieces
    8
    1.0–2.5
    1.25
    10
    1 pieces
    8
    2.5~4.0
    1.25
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    0.76 €
    ( 0.90 € )
    6 working days
    0.82 €
    ( 0.98 € )
    6 working days
    0.47 €
    ( 0.56 € )
    6 working days
    0.48 €
    ( 0.57 € )
    6 working days
    1.89 €
    ( 2.25 € )
    6 working days
    1.89 €
    ( 2.25 € )
    6 working days
    1.90 €
    ( 2.26 € )
    6 working days
    1.93 €
    ( 2.30 € )
    6 working days
    1.94 €
    ( 2.31 € )
    6 working days
    1.96 €
    ( 2.33 € )
    6 working days
    0.48 €
    ( 0.57 € )
    6 working days
    0.50 €
    ( 0.59 € )
    6 working days
    0.53 €
    ( 0.63 € )
    6 working days
    0.58 €
    ( 0.69 € )
    6 working days
  • 1

    • More Information

    Basic information

    Standard pop nut for attaching a nut to a workpiece with single side fastening.
    [Features]
    · Flange is smaller than normal, making compact mounting possible.
    · Quick nut mounting is possible from a single side thanks to the compact dedicated tool.
    · Even those using it for the first time can handle it with ease.
    · Mounting is possible even after surface treatment, and can be done during the final assembly process of the product as the workpiece is not damaged.
    · With the reduction in man-hours thanks to speedy single side fastening, total costs can be reduced compared to conventional construction methods such as weld-on nuts.
    [Applications]
    · The most versatile nut, it can be used for all sorts of general purpose products such as car ports, server racks, etc.
    · Workpieces are used in aluminum. Can also be used for square pipe material.
