Ball Bearing US-J Type (Steel Body)

Ball Bearing US-J Type (Steel Body)

IGUCHI KIKO

IGUCHI KIKO

Pressed steel product. Workpiece transport without scratching due to main ball being made of resin.

[Features]
· Same heavy press as IM type product available at a low price, with quick delivery time.
· Embedded type keeps the installation height low.
· Mainly used for conveyor systems for moving lightweight equipment.

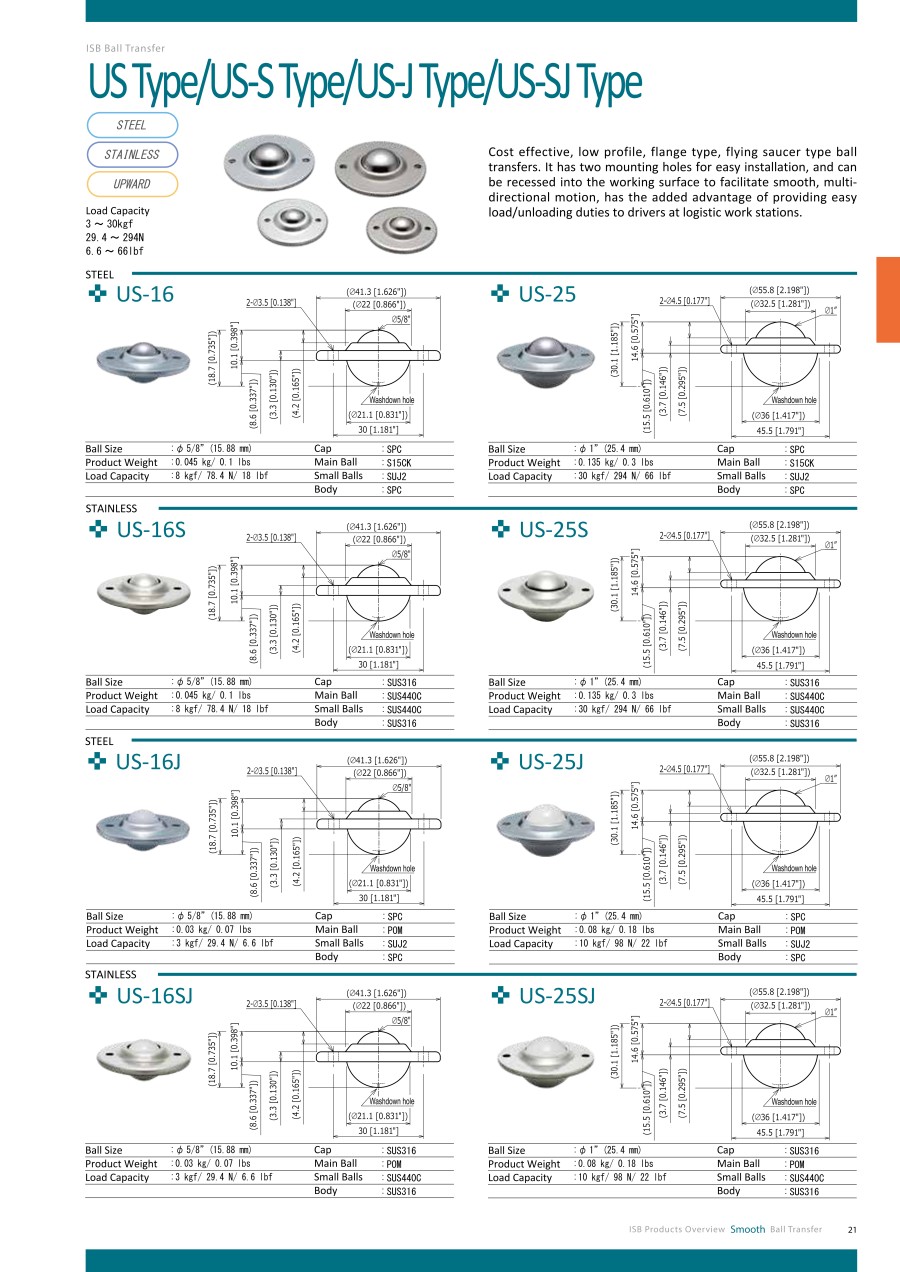

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
US-16J
US-25J
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSWithstand Operating Load Range
(N) 		Working Load
(N) 		O.D. D
(Ø) 		Ball Size (Inch)
(Ø)

7.35 €

1 8 Days 1020.1 to 50.029.441.315.88(5/8)

11.36 €

1 5 Days 1050.1 to 100.09855.825.4(1)

Loading...

  1. 1

Basic information

Type Standard Shape Flange Body Material Steel
Main Ball material POM Sub Ball Steel Application General-Purpose Air Ball Transfer

Configure

Clear all

2Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Withstand Operating Load Range(N)

    • 20.1 to 50.0
    • 50.1 to 100.0

    Clear

  • Working Load(N)

    • 29.4
    • 98

    Clear

  • O.D. D(Ø)

    • 41.3
    • 55.8

    Clear

  • Type

    • US-J

    Clear

  • Filter by CAD data type

    • 2D

    Clear

Filter by standard shipping days

    • All
    • 5 Days or Less
    • 8 Days or Less

    Reset
