Configure

Caster Type
- Plate Type Universal
- Related Components
Mounting Height H1(mm)
- 101
Load Range(daN)
Maximum Load Capacity(daN)
- 60
- 70
- 80
- 100
- 120
- 150
Wheel specification
Synthetic Rubber
Heat Resistant Rubber
Red rubber
Rubber
Nylon
Nylon
Urethane
Urethane
Wheel Characteristics
Mounting Hole Type
- Round Hole
Shaft Diameter D(mm)
- 10
Tire width R(mm)
- 32
Eccentricity E(mm)
- 22
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
Shaft Bearing
Type
- JA
Est. shipping days
- All
- Within 10 working days

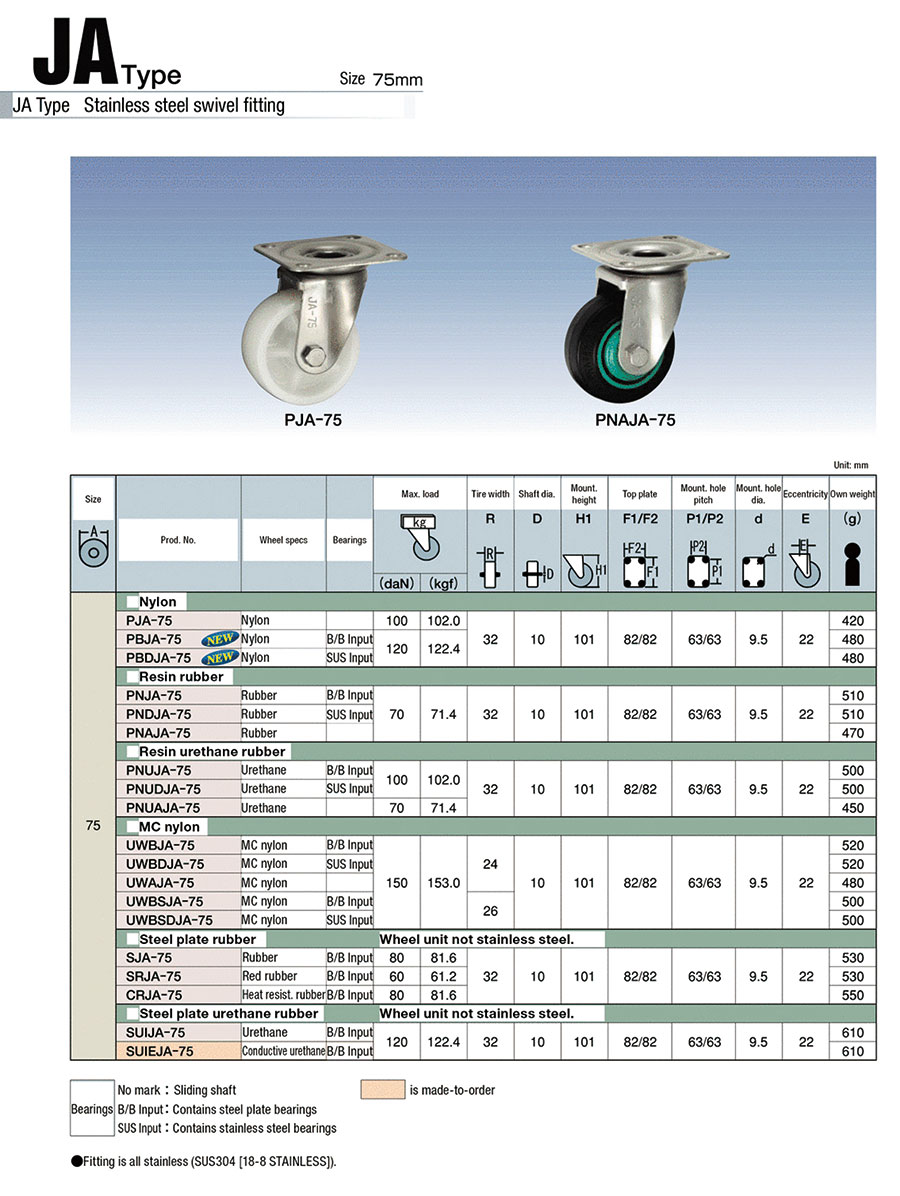

Stainless Steel Castors, Swivel JAtype Size 75 mm

Catalog

Part number:

Still undefined. 14 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Caster Type

Mounting Height H1

(mm)

Load Range

(daN)

Maximum Load Capacity

(daN)

Wheel specification

Wheel Characteristics

Mounting Hole Type

Shaft Diameter D

(mm)

Tire width R

(mm)

Eccentricity E

(mm)

Metal Fitting Specifications

Shaft Bearing

Minimum order quantity

Plate Type Universal	101	35.01~80.00	80	[Synthetic Rubber] Heat Resistant Rubber	Abrasion Resistance / Chemical Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal / Related Components	-	140.01~220.00	150	-	-	-	-	-	-	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal	101	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	10	32	22	The wheels on earth	Stainless Steel Bearing	1 pieces
Plate Type Universal	101	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	101	80.01~140.00	100	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	10	32	22	The wheels on earth	Slide Bearing	1 pieces
Plate Type Universal	101	35.01~80.00	70	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	10	32	22	The wheels on earth	Slide Bearing	1 pieces
Plate Type Universal	101	35.01~80.00	70	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	10	32	22	The wheels on earth	Stainless Steel Bearing	1 pieces
Plate Type Universal	101	35.01~80.00	70	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	101	35.01~80.00	70	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	10	32	22	The wheels on earth	Slide Bearing	1 pieces
Plate Type Universal	101	80.01~140.00	100	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	10	32	22	The wheels on earth	Stainless Steel Bearing	1 pieces
Plate Type Universal	101	80.01~140.00	100	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	101	35.01~80.00	80	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	101	35.01~80.00	60	[Synthetic Rubber] Red rubber	Abrasion Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	101	80.01~140.00	120	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	10	32	22	The wheels on earth	Steel Plate with Bearing	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

61.70 € ( 73.42 € )	10 working days
45.53 € ( 54.18 € )	10 working days
75.55 € ( 89.90 € )	10 working days
56.16 € ( 66.83 € )	10 working days
51.14 € ( 60.86 € )	10 working days
50.96 € ( 60.64 € )	10 working days
72.81 € ( 86.64 € )	10 working days
52.63 € ( 62.63 € )	10 working days
58.03 € ( 69.06 € )	10 working days
78.62 € ( 93.56 € )	10 working days
61.75 € ( 73.48 € )	10 working days
53.00 € ( 63.07 € )	10 working days
59.66 € ( 71.00 € )	10 working days
60.96 € ( 72.54 € )	10 working days

More Information

Basic information

Basic information

A free-swivel caster in which rust-resistant stainless steel has been used for all hardware.

Catalog

Products homepage

Catalog (2-page spread)
