Configure

Caster Type
- Plate Type Fixed
- Related Components
Mounting Height H1(mm)
- 144
Load Range(daN)
- 80.01~140.00
- 140.01~220.00
Maximum Load Capacity(daN)
- 100
- 120
- 130
- 150
- 180
- 200
Wheel specification
Synthetic Rubber
Heat Resistant Rubber
Red rubber
Rubber
Nylon
Nylon
Urethane
Urethane
Wheel Characteristics
Mounting Hole Type
- Round Hole
Shaft Diameter D(mm)
- 12
Tire width R(mm)
- 32
- 35
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
Shaft Bearing
Type
- KA
Est. shipping days
- All
- Within 10 working days

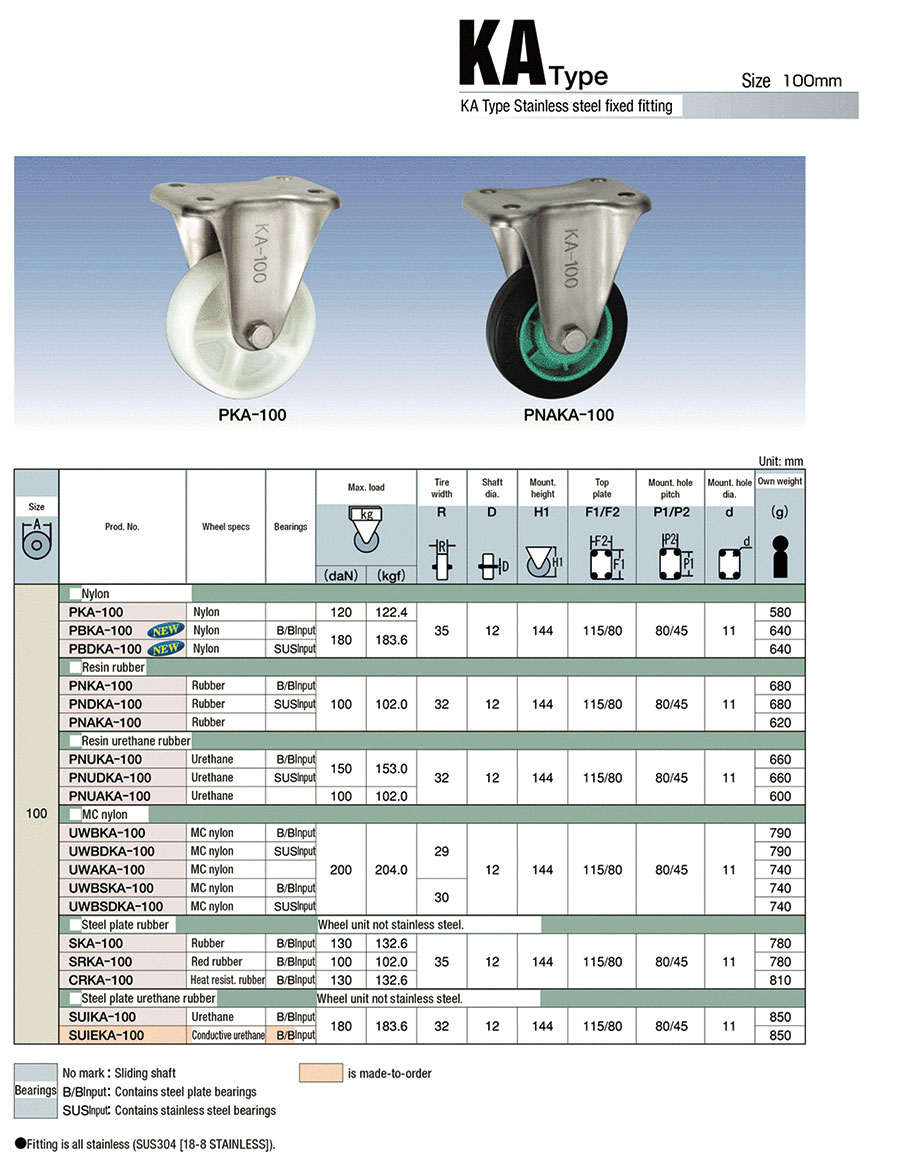

Stainless Steel Castors, Fixed KAtype Size 100 mm

Catalog

Part number:

Still undefined. 14 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Caster Type

Mounting Height H1

(mm)

Load Range

(daN)

Maximum Load Capacity

(daN)

Wheel specification

Wheel Characteristics

Mounting Hole Type

Shaft Diameter D

(mm)

Tire width R

(mm)

Metal Fitting Specifications

Shaft Bearing

Minimum order quantity

Plate Type Fixed	144	80.01~140.00	130	[Synthetic Rubber] Heat Resistant Rubber	Abrasion Resistance / Chemical Resistance	Round Hole	12	35	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Fixed / Related Components	-	140.01~220.00	200	-	-	-	-	-	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Fixed	144	140.01~220.00	180	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	12	35	The wheels on earth	Stainless Steel Bearing	1 pieces
Plate Type Fixed	144	140.01~220.00	180	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	12	35	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	120	[Nylon] Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	12	35	The wheels on earth	Slide Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	100	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	12	32	The wheels on earth	Slide Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	100	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	12	32	The wheels on earth	Stainless Steel Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	100	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	12	32	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	100	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	12	32	The wheels on earth	Slide Bearing	1 pieces
Plate Type Fixed	144	140.01~220.00	150	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	12	32	The wheels on earth	Stainless Steel Bearing	1 pieces
Plate Type Fixed	144	140.01~220.00	150	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	12	32	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	130	[Synthetic Rubber] Rubber	Abrasion Resistance	Round Hole	12	35	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Fixed	144	80.01~140.00	100	[Synthetic Rubber] Red rubber	Abrasion Resistance	Round Hole	12	35	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Fixed	144	140.01~220.00	180	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	12	32	The wheels on earth	Steel Plate with Bearing	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

69.08 € ( 82.21 € )	10 working days
45.58 € ( 54.24 € )	10 working days
80.28 € ( 95.53 € )	10 working days
60.21 € ( 71.65 € )	10 working days
54.62 € ( 65.00 € )	10 working days
54.48 € ( 64.83 € )	10 working days
77.93 € ( 92.74 € )	10 working days
56.30 € ( 67.00 € )	10 working days
64.99 € ( 77.34 € )	10 working days
84.98 € ( 101.13 € )	10 working days
68.00 € ( 80.92 € )	10 working days
55.65 € ( 66.22 € )	10 working days
65.09 € ( 77.46 € )	10 working days
66.96 € ( 79.68 € )	10 working days

More Information

Basic information

Basic information

[Features]
· A directionally-fixed type caster that uses stainless steel to achieve rust resistance for all hardware parts
