Castors for Heavy Loads (Compact Type) Swivel JMtype Size 50 to 75 mm

Configure

Caster Type
- Plate Type Universal
- Related Components
Mounting Height H1(mm)
- 72
- 92
- 105
Load Range(daN)
Maximum Load Capacity(daN)
- 60
- 80
- 100
- 170
- 200
- 300
- 400
Wheel specification
Nylon
MC Nylon
Reinforced Nylon
Urethane
Urethane
Iron
Wheel Characteristics
Mounting Hole Type
- Round Hole
Mounting Hole Pitch Longitudinal direction(mm)
- 50
- 71
Mounting Hole Pitch Transverse Direction(mm)
- 50
- 71
Top Plate F1(mm)
- 65
- 90
Top Plate F2(mm)
- 65
- 90
Shaft Diameter D(mm)
- 10
- 12
Size A or outer diameter A of the tire(mm)
- 50
- 65
- 75
Tire width R(mm)
- 20.5
- 27
- 28
- 34
- 36
- 38
Eccentricity E(mm)
- 25
- 35
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
Shaft Bearing
- Slide Bearing
- Steel Plate with Bearing
Type
- JM
Est. shipping days
- All
- Within 6 working days
- Within 7 working days
- Within 10 working days

Castors for Heavy Loads (Compact Type) Swivel JMtype Size 50 to 75 mm

Catalog

Part number:

Still undefined. 14 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Caster Type

Mounting Height H1

(mm)

Load Range

(daN)

Maximum Load Capacity

(daN)

Wheel specification

Wheel Characteristics

Mounting Hole Type

Mounting Hole Pitch Longitudinal direction

(mm)

Mounting Hole Pitch Transverse Direction

(mm)

Top Plate F1

(mm)

Top Plate F2

(mm)

Shaft Diameter D

(mm)

Size A or outer diameter A of the tire

(mm)

Tire width R

(mm)

Eccentricity E

(mm)

Load Category

Metal Fitting Specifications

Shaft Bearing

Minimum order quantity

Plate Type Universal	72	35.01~80.00	60	Iron	-	Round Hole	50	50	65	65	10	50	27	25	Light/Medium Load	The wheels on earth	Slide Bearing	1 pieces
Plate Type Universal	72	80.01~140.00	100	Iron	-	Round Hole	50	50	65	65	10	50	27	25	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal / Related Components	-	140.01~220.00	200	-	-	-	50	50	65	65	-	50	-	-	Light/Medium Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal / Related Components	-	220.01~320.00	300	-	-	-	71	71	90	90	-	65	-	-	Light/Medium Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal / Related Components	-	320.01~485.00	400	-	-	-	71	71	90	90	-	75	-	-	Heavy Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal	92	140.01~220.00	170	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	71	71	90	90	12	65	34	35	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	105	140.01~220.00	200	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	71	71	90	90	12	75	38	35	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	72	140.01~220.00	200	[Nylon] Reinforced Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	50	50	65	65	10	50	28	25	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	92	220.01~320.00	300	[Nylon] Reinforced Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	71	71	90	90	12	65	38	35	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	105	320.01~485.00	400	[Nylon] Reinforced Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Cold Resistance	Round Hole	71	71	90	90	12	75	38	35	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	72	140.01~220.00	200	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	50	50	65	65	10	50	27	25	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	92	220.01~320.00	300	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	71	71	90	90	12	65	34	35	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	105	320.01~485.00	400	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	71	71	90	90	12	75	36	35	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	72	35.01~80.00	80	[Urethane] Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	50	50	65	65	10	50	20.5	25	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

30.72 € ( 36.56 € )	10 working days
39.50 € ( 47.01 € )	10 working days
17.43 € ( 20.74 € )	10 working days
24.26 € ( 28.87 € )	10 working days
24.84 € ( 29.56 € )	10 working days
52.51 € ( 62.49 € )	10 working days
55.46 € ( 66.00 € )	10 working days
28.71 € ( 34.16 € )	10 working days
39.98 € ( 47.58 € )	6 working days
42.39 € ( 50.44 € )	7 working days
48.46 € ( 57.67 € )	10 working days
64.27 € ( 76.48 € )	10 working days
66.48 € ( 79.11 € )	10 working days
27.96 € ( 33.27 € )	10 working days

More Information

Basic information

Basic information

[Features]
· A caster that can withstand heavy loads and that features free-swivel hardware.

Catalog

Products homepage

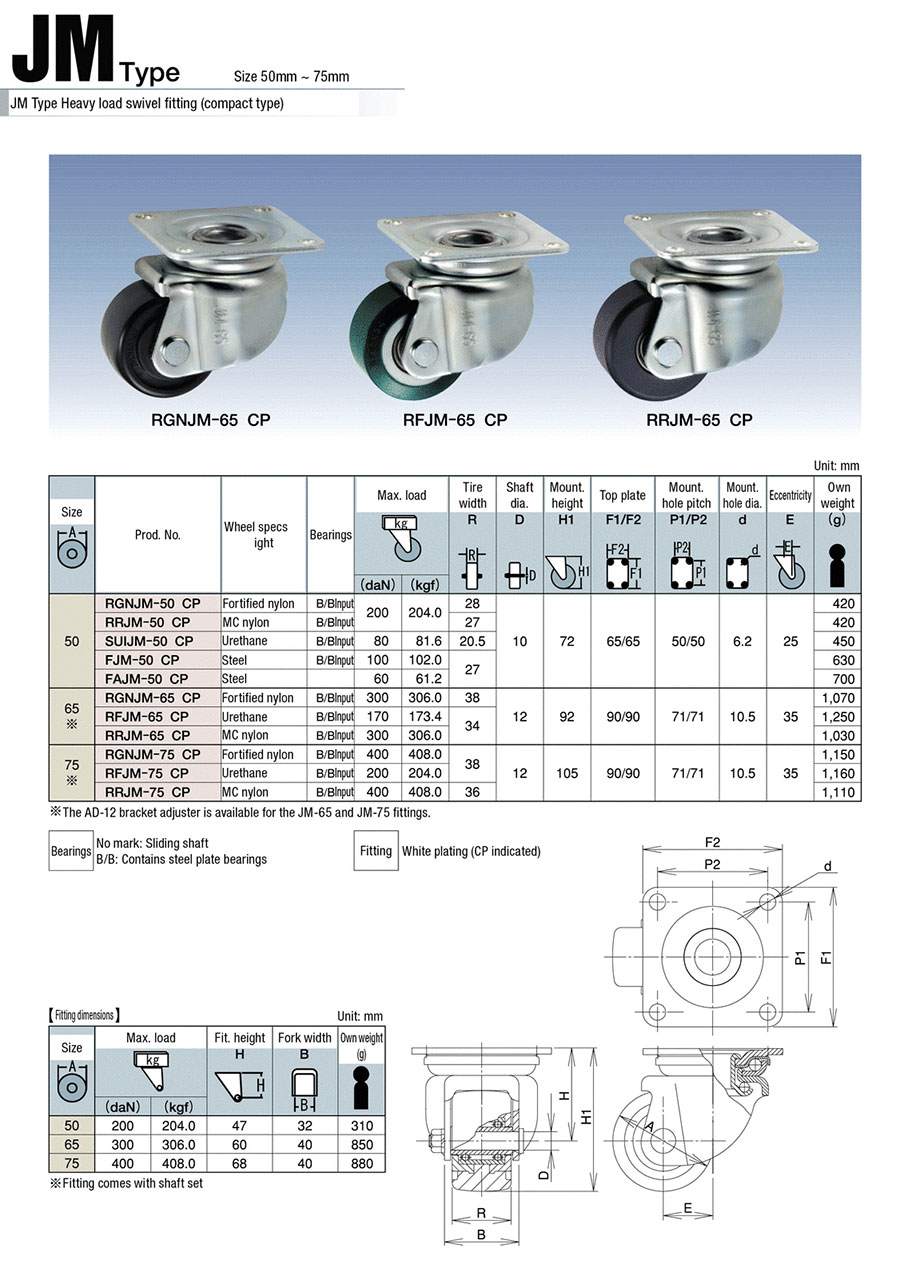

Catalog (2-page spread)
