Swivel Castors for Heavy Loads JMtype, Size 150 mm to 200 mm

Configure

Caster Type
- Plate Type Universal
- Related Components
Mounting Height H1(mm)
- 198
- 250
Load Range(daN)
Maximum Load Capacity(daN)
- 300
- 410
- 500
- 550
- 600
- 660
Wheel specification
Synthetic Rubber
Aluminum Rubber
Rubber made of steel plate
Nylon
Aluminum MC Nylon
MC Nylon
Urethane
Aluminum Urethane
Urethane made of steel plate
Wheel Characteristics
Mounting Hole Type
- Round Hole
Mounting Hole Pitch Longitudinal direction(mm)
- 90
- 112
Mounting Hole Pitch Transverse Direction(mm)
- 90
- 112
Top Plate F1(mm)
- 120
- 140
Top Plate F2(mm)
- 120
- 140
Shaft Diameter D(mm)
- 20
- 25
Size A or outer diameter A of the tire(mm)
- 150
- 200
Tire width R(mm)
- 40
- 42
- 50
- 63
Eccentricity E(mm)
- 45
- 58
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
Shaft Bearing
- Steel Plate with Bearing
Type
- JM
Est. shipping days
- All
- Within 6 working days
- Within 10 working days
- Within 22 working days

Swivel Castors for Heavy Loads JMtype, Size 150 mm to 200 mm

Catalog

Part number:

Still undefined. 11 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Caster Type

Mounting Height H1

(mm)

Load Range

(daN)

Maximum Load Capacity

(daN)

Wheel specification

Wheel Characteristics

Mounting Hole Type

Mounting Hole Pitch Longitudinal direction

(mm)

Mounting Hole Pitch Transverse Direction

(mm)

Top Plate F1

(mm)

Top Plate F2

(mm)

Shaft Diameter D

(mm)

Size A or outer diameter A of the tire

(mm)

Tire width R

(mm)

Eccentricity E

(mm)

Load Category

Metal Fitting Specifications

Shaft Bearing

Minimum order quantity

Plate Type Universal / Related Components	-	485.01~750.00	550	-	-	-	90	90	120	120	-	150	-	-	Heavy Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal / Related Components	-	485.01~750.00	660	-	-	-	112	112	140	140	-	200	-	-	Heavy Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal	198	485.01~750.00	500	[Urethane] Urethane made of steel plate	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	90	90	120	120	20	150	50	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	250	485.01~750.00	600	[Urethane] Urethane made of steel plate	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	112	112	140	140	25	200	63	58	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	220.01~320.00	300	[Synthetic Rubber] Aluminum Rubber	Abrasion Resistance	Round Hole	90	90	120	120	20	150	50	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	250	320.01~485.00	410	[Synthetic Rubber] Rubber made of steel plate	Abrasion Resistance	Round Hole	112	112	140	140	25	200	63	58	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	500	[Urethane] Aluminum Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	90	90	120	120	20	150	50	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	550	[Nylon] Aluminum MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	90	90	120	120	20	150	50	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	250	485.01~750.00	660	[Nylon] Aluminum MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	112	112	140	140	25	200	63	58	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	550	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	90	90	120	120	20	150	40	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	250	485.01~750.00	660	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	112	112	140	140	25	200	42	58	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

72.00 € ( 85.68 € )	10 working days
105.40 € ( 125.43 € )	10 working days
105.87 € ( 125.99 € )	6 working days
188.93 € ( 224.83 € )	10 working days
121.79 € ( 144.93 € )	10 working days
129.60 € ( 154.22 € )	10 working days
114.29 € ( 136.01 € )	10 working days
111.04 € ( 132.14 € )	10 working days
189.44 € ( 225.43 € )	10 working days
172.72 € ( 205.54 € )	22 working days
266.11 € ( 316.67 € )	22 working days

More Information

Basic information

Basic information

A caster that can withstand heavy loads and that includes hardware that is capable of swiveling freely.

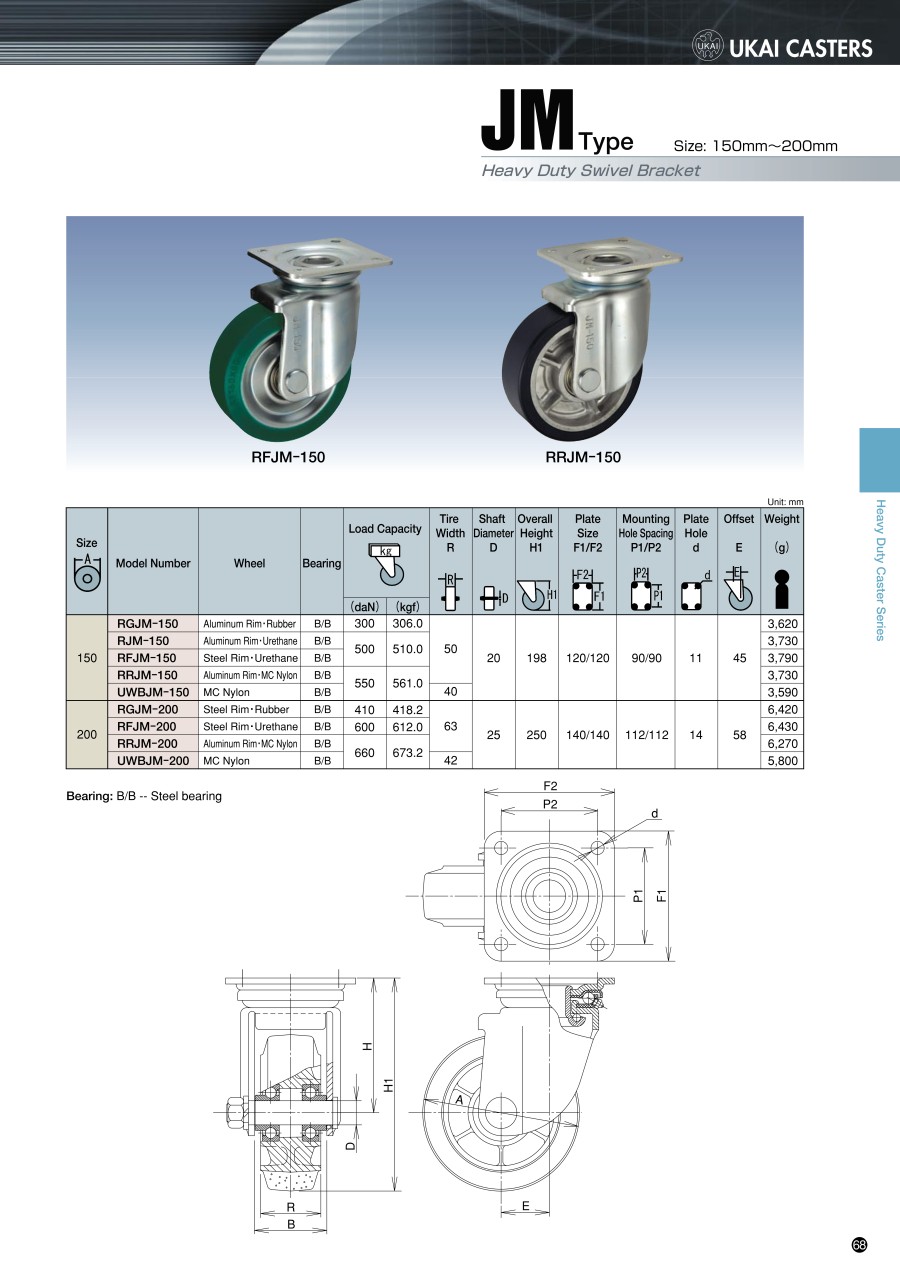

Catalog
