Swivel Castors for Heavy Loads JHtype, Size 130 mm to 150 mm

Configure

Caster Type
- Plate Type Universal
- Related Components
Mounting Height H1(mm)
- 177
- 198
Load Range(daN)
Maximum Load Capacity(daN)
- 240
- 300
- 450
- 500
- 550
- 600
Wheel specification
Synthetic Rubber
Aluminum Rubber
Nylon
Aluminum MC Nylon
MC Nylon
Urethane
Aluminum Urethane
Urethane made of steel plate
Wheel Characteristics
Mounting Hole Type
- Round Hole
Mounting Hole Pitch Longitudinal direction(mm)
- 80
- 90
Mounting Hole Pitch Transverse Direction(mm)
- 80
- 90
Top Plate F1(mm)
- 108
- 120
Top Plate F2(mm)
- 108
- 120
Shaft Diameter D(mm)
- 20
Size A or outer diameter A of the tire(mm)
- 130
- 150
Tire width R(mm)
- 36
- 40
- 50
Eccentricity E(mm)
- 45
- 50
Metal Fitting Specifications
- Metal Fitting Only - No Wheels
- The wheels on earth
Shaft Bearing
- Steel Plate with Bearing
Type
- JH
Est. shipping days
- All
- Within 9 working days
- Within 10 working days
- Within 21 working days

Swivel Castors for Heavy Loads JHtype, Size 130 mm to 150 mm

Catalog

Part number:

Still undefined. 12 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Caster Type

Mounting Height H1

(mm)

Load Range

(daN)

Maximum Load Capacity

(daN)

Wheel specification

Wheel Characteristics

Mounting Hole Type

Mounting Hole Pitch Longitudinal direction

(mm)

Mounting Hole Pitch Transverse Direction

(mm)

Top Plate F1

(mm)

Top Plate F2

(mm)

Shaft Diameter D

(mm)

Size A or outer diameter A of the tire

(mm)

Tire width R

(mm)

Eccentricity E

(mm)

Load Category

Metal Fitting Specifications

Shaft Bearing

Minimum order quantity

Plate Type Universal / Related Components	-	485.01~750.00	550	-	-	-	80	80	108	108	-	130	-	-	Heavy Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal / Related Components	-	485.01~750.00	600	-	-	-	90	90	120	120	-	150	-	-	Heavy Load	Metal Fitting Only - No Wheels	-	1 pieces
Plate Type Universal	177	320.01~485.00	450	[Urethane] Urethane made of steel plate	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	80	80	108	108	20	130	50	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	500	[Urethane] Urethane made of steel plate	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	90	90	120	120	20	150	50	50	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	177	220.01~320.00	240	[Synthetic Rubber] Aluminum Rubber	Abrasion Resistance	Round Hole	80	80	108	108	20	130	50	45	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	220.01~320.00	300	[Synthetic Rubber] Aluminum Rubber	Abrasion Resistance	Round Hole	90	90	120	120	20	150	50	50	Light/Medium Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	177	320.01~485.00	450	[Urethane] Aluminum Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	80	80	108	108	20	130	50	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	500	[Urethane] Aluminum Urethane	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance	Round Hole	90	90	120	120	20	150	50	50	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	177	485.01~750.00	500	[Nylon] Aluminum MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	80	80	108	108	20	130	50	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	550	[Nylon] Aluminum MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	90	90	120	120	20	150	50	50	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	177	485.01~750.00	550	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	80	80	108	108	20	130	36	45	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces
Plate Type Universal	198	485.01~750.00	600	[Nylon] MC Nylon	Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance / Heat-Resistance / Cold Resistance	Round Hole	90	90	120	120	20	150	40	50	Heavy Load	The wheels on earth	Steel Plate with Bearing	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

125.54 € ( 149.39 € )	10 working days
96.29 € ( 114.59 € )	10 working days
132.49 € ( 157.66 € )	9 working days
147.49 € ( 175.51 € )	9 working days
114.04 € ( 135.71 € )	9 working days
126.89 € ( 151.00 € )	9 working days
141.12 € ( 167.93 € )	9 working days
155.82 € ( 185.43 € )	9 working days
139.27 € ( 165.73 € )	9 working days
152.52 € ( 181.50 € )	9 working days
173.70 € ( 206.70 € )	21 working days
213.50 € ( 254.06 € )	21 working days

More Information

Basic information

Basic information

[Features]
· The swivel part has a thrust bearing built into the upper level and tapered roller bearing in the lower level, and features a design aimed at long-term stabilization of smooth swivel functions and minimal abrasion resistance during usage under heavy loads.

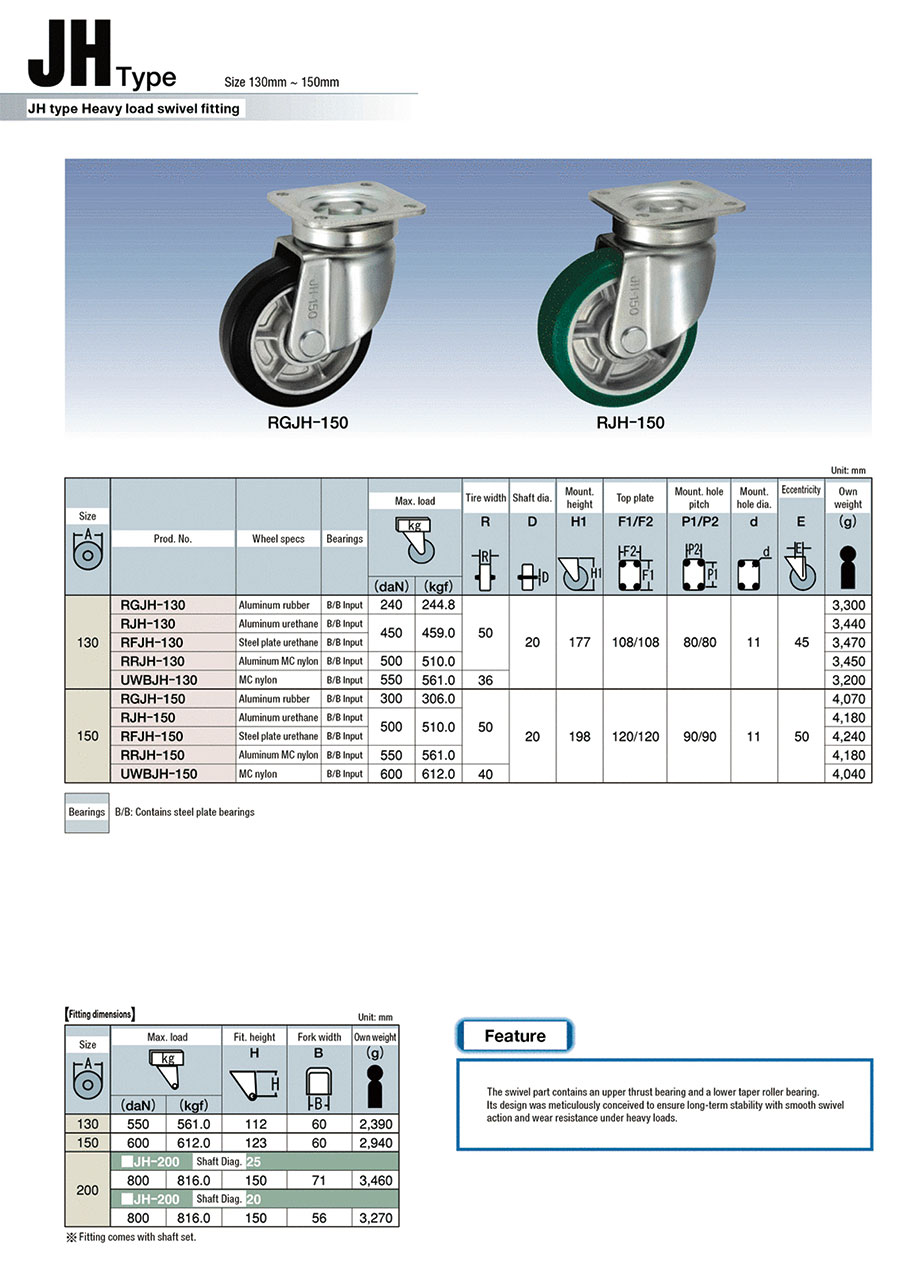

Catalog
