NITTA

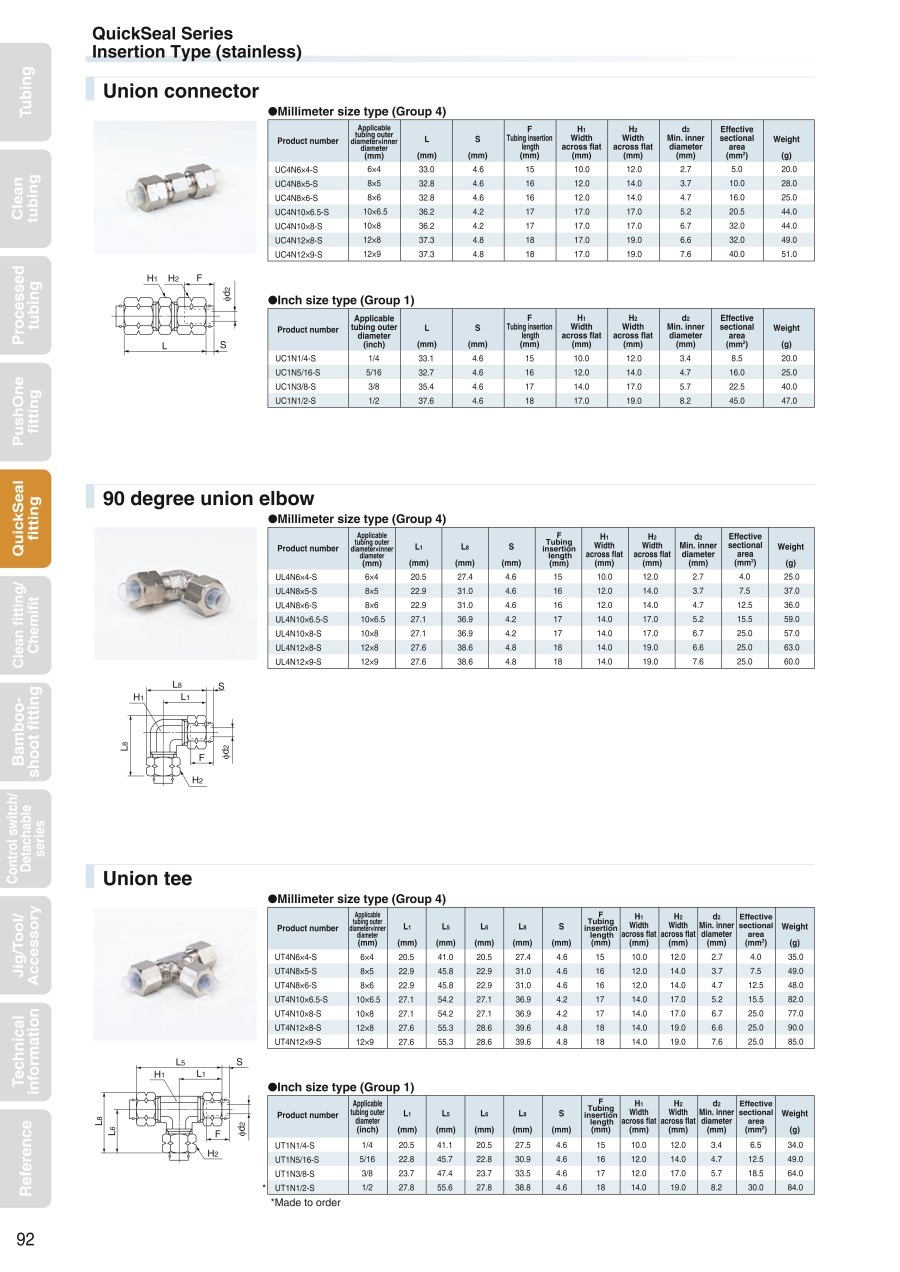

Quick Seal Series Insert Type (Stainless Steel) 90° Union Elbow (mm Size)

Quick Seal Series Insert Type (Stainless Steel) 90° Union Elbow (mm Size)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    UL4N6X4-S
    UL4N8X6-S
    UL4N10X6.5-S
    UL4N10X8-S
    UL4N12X9-S

    Compatible Tube Outer Diameter

    (mm)

    Compatible Tube Inner Diameter

    (mm)

    Minimum Internal Diameter d2

    Effective Sectional Area

    		Minimum order quantity
    6
    4
    2.7
    4.0
    1 pieces
    8
    6
    4.7
    12.5
    1 pieces
    10
    6.5
    5.2
    12.5
    1 pieces
    10
    8
    6.7
    25.0
    1 pieces
    12
    9
    7.6
    25.0
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    63.13 €
    ( 75.12 € )
    14 working days
    69.59 €
    ( 82.81 € )
    8 working days
    77.90 €
    ( 92.70 € )
    8 working days
    77.89 €
    ( 92.69 € )
    8 working days
    80.50 €
    ( 95.80 € )
    8 working days
  • 1

    • More Information

    Basic information

    Stainless steel 90° union elbow (mm size) consisting of three parts: fitting body, nut, and sleeve. The fitting body and insert are integrated. Also shows excellent performance at negative pressures.
