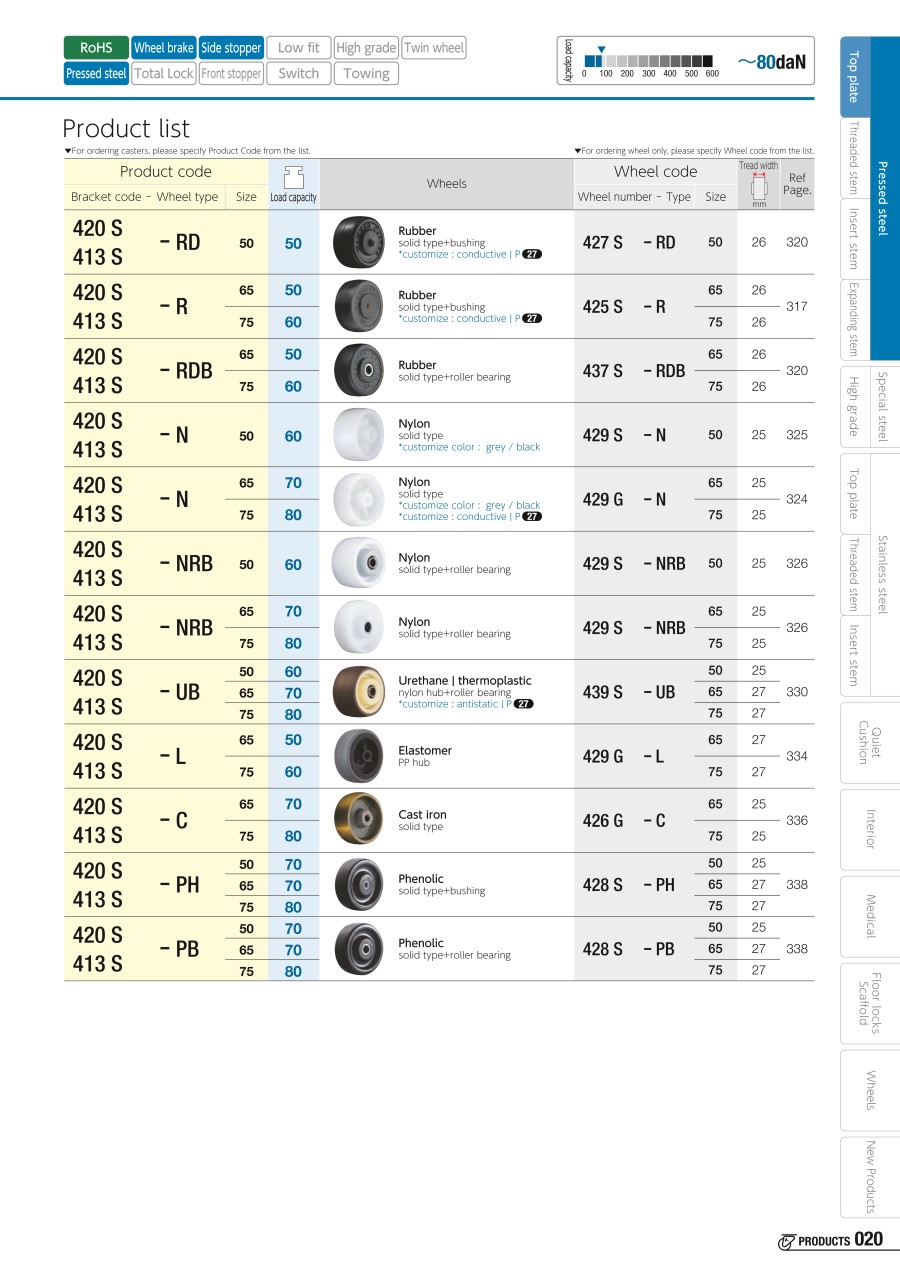

Flat Mounted Plate Type Castors 420S / 413S Wheel Diameter 50-75mm

Flat Mounted Plate Type Castors 420S / 413S Wheel Diameter 50-75mm
  • Promotional pricing
  • Volume Discount

TAKIGEN(HAMMER CASTER)

TAKIGEN(HAMMER CASTER)

A standard caster that has high load resistance and that swivel smoothly. Widely used in various environments such as factories, shops, and offices.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
413S-C65
413S-C75
413S-N50
413S-N65
413S-N75
413S-NRB50
413S-NRB65
413S-NRB75
413S-PB65
413S-PB75
413S-PH50
413S-PH65
413S-PH75
413S-R65
413S-R75
413S-RD50
413S-RDB65
413S-RDB75
413S-UB65
413S-UB75
420S-C65
420S-C75
420S-N50
420S-N65
420S-N75
420S-NRB50
420S-NRB65
420S-NRB75
420S-PB50
420S-PB65
420S-PB75
420S-PH50
420S-PH65
420S-PH75
420S-R65
420S-R75
420S-RD50
420S-RDB65
420S-RDB75
420S-UB75
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Mounting Height H or H1 and H2
(mm) 		Stopper Allowable Load 1 piece
(daN) 		Wheel Material Wheel Characteristics Wheel Dia. D
(mm) 		Car width
(mm) 		Swivel Radius
(mm) 		Eccentricity E or E1, E2
(mm) 		Variety of Vehicles Wheel configuration

18.18 €

1 8 Days 85With Rotation Stopper70Cast MetalHeat-Resistance / Cold Resistance65256929.0CIntegrated Casting Wheel

20.84 €

1 6 Days 93With Rotation Stopper80Cast MetalHeat-Resistance / Cold Resistance75256928.0CIntegrated Casting Wheel

10.05 €

1 6 Days 70With Rotation Stopper60[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50256826.0NNylon Integral Wheel

10.83 €

5.42 €

1 Same day

Stock

85With Rotation Stopper70[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65256929.0NNylon Integral Wheel

11.65 €

5.71 €

1 Same day

Stock

93With Rotation Stopper80[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75256928.0NNylon Integral Wheel

13.69 €

1 11 Days 70With Rotation Stopper60[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50256826.0NRBNylon Integral Wheel with Roller Bearings

12.82 €

1 Available 6 Days 85With Rotation Stopper70[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65256929.0NRBNylon Integral Wheel with Roller Bearings

14.07 €

1 Available 6 Days 93With Rotation Stopper80[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75256928.0NRBNylon Integral Wheel with Roller Bearings

20.12 €

1 11 Days 85With Rotation Stopper70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65276929.0PBPhenol Integrated Wheel Roller Bearings Built-In

22.30 €

1 14 Days 93With Rotation Stopper80PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75276928.0PBPhenol Integrated Wheel Roller Bearings Built-In

15.06 €

1 11 Days 70With Rotation Stopper70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50256826.0PHPhenol Integrated Wheel Resin Bushings Built-In

18.02 €

1 11 Days 85With Rotation Stopper70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65276929.0PHPhenol Integrated Wheel Resin Bushings Built-In

19.25 €

1 11 Days 93With Rotation Stopper80PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75276928.0PHPhenol Integrated Wheel Resin Bushings Built-In

12.13 €

5.94 €

1 Same day

Stock

85With Rotation Stopper50Rubber-65266929.0RRubber Integrated Wheels Containing Resin Bush

13.30 €

6.52 €

1 Same day

Stock

93With Rotation Stopper60Rubber-75266928.0RRubber Integrated Wheels Containing Resin Bush

11.96 €

7.42 €

1 Available Same day

Stock

70With Rotation Stopper50Rubber-50266826.0RDRubber Integrated Wheels Containing Resin Bush

12.50 €

1 11 Days 85With Rotation Stopper50Rubber-65266929.0NBRubber Integrated Wheels Containing Roller Bearing

13.54 €

1 11 Days 93With Rotation Stopper60Rubber-75266928.0NBRubber Integrated Wheels Containing Roller Bearing

20.32 €

1 5 Days 85With Rotation Stopper70UrethaneAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)65276929.0UBNylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings

23.12 €

12.25 €

1 Same day

Stock

93With Rotation Stopper80UrethaneAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)75276928.0UBNylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings

15.97 €

1 13 Days 85NA70Cast MetalHeat-Resistance / Cold Resistance65256329.0CIntegrated Casting Wheel

18.91 €

1 11 Days 93NA80Cast MetalHeat-Resistance / Cold Resistance75256728.0CIntegrated Casting Wheel

7.80 €

1 Available 6 Days 70NA60[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50255226.0NNylon Integral Wheel

8.76 €

1 5 Days 85NA70[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65256329.0NNylon Integral Wheel

9.23 €

1 5 Days 93NA80[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75256728.0NNylon Integral Wheel

10.97 €

1 11 Days 70NA60[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50255226.0NRBNylon Integral Wheel with Roller Bearings

11.00 €

1 Available 11 Days 85NA70[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65256329.0NRBNylon Integral Wheel with Roller Bearings

10.73 €

1 Available 11 Days 93NA80[Nylon] NylonAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75256728.0NRBNylon Integral Wheel with Roller Bearings

14.43 €

1 11 Days 70NA70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50255226.0PBPhenol Integrated Wheel Roller Bearings Built-In

18.00 €

1 11 Days 85NA70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65276329.0PBPhenol Integrated Wheel Roller Bearings Built-In

20.39 €

1 14 Days 93NA80PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75276728.0PBPhenol Integrated Wheel Roller Bearings Built-In

12.22 €

1 11 Days 70NA70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)50255226.0PHPhenol Integrated Wheel Resin Bushings Built-In

15.80 €

1 11 Days 85NA70PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)65276329.0PHPhenol Integrated Wheel Resin Bushings Built-In

17.30 €

1 11 Days 93NA80PhenolGasoline Resistance / Oil Resistance (Machine Oil) / Chemical Resistance (Weak Acids/Alkalis)75276728.0PHPhenol Integrated Wheel Resin Bushings Built-In

10.15 €

1 5 Days 85NA50Rubber-65266329.0RRubber Integrated Wheels Containing Resin Bush

11.69 €

1 6 Days 93NA60Rubber-75266728.0RRubber Integrated Wheels Containing Resin Bush

8.87 €

1 6 Days 70NA50Rubber-50265226.0RDRubber Integrated Wheels Containing Resin Bush

12.81 €

1 11 Days 85NA50Rubber-65266329.0NBRubber Integrated Wheels Containing Roller Bearing

13.93 €

1 11 Days 93NA60Rubber-75266728.0NBRubber Integrated Wheels Containing Roller Bearing

21.65 €

1 5 Days 93NA80UrethaneAbrasion Resistance / Gasoline Resistance / Oil Resistance (Machine Oil)75276728.0UBNylon-Wheel Thermoplastic Urethane Foam Winding Wheel with Roller Bearings

Loading...

  1. 1

Basic information

Caster Type Swiveling Direct Mount Plate Load Range(daN) 35.01~80.00 Fitting Material Steel
Mounting Hole Type Round Hole Mounting Hole Pitch Longitudinal direction (X)(mm) 55 Mounting Hole Pitch Transverse Direction (Y)(mm) 42
Mounting Seat A (Plate Length)(mm) 70 Mounting Seat B (Plate Width)(mm) 58 Load Category Light Load
Mounting Hole Diameter P(mm) 8.8 (Metal Fitting/Main Body) Processing - Finish Trivalent chromium chemical processing Swiveling/Fixed Swiveling
