TAKIGEN(HAMMER CASTER)

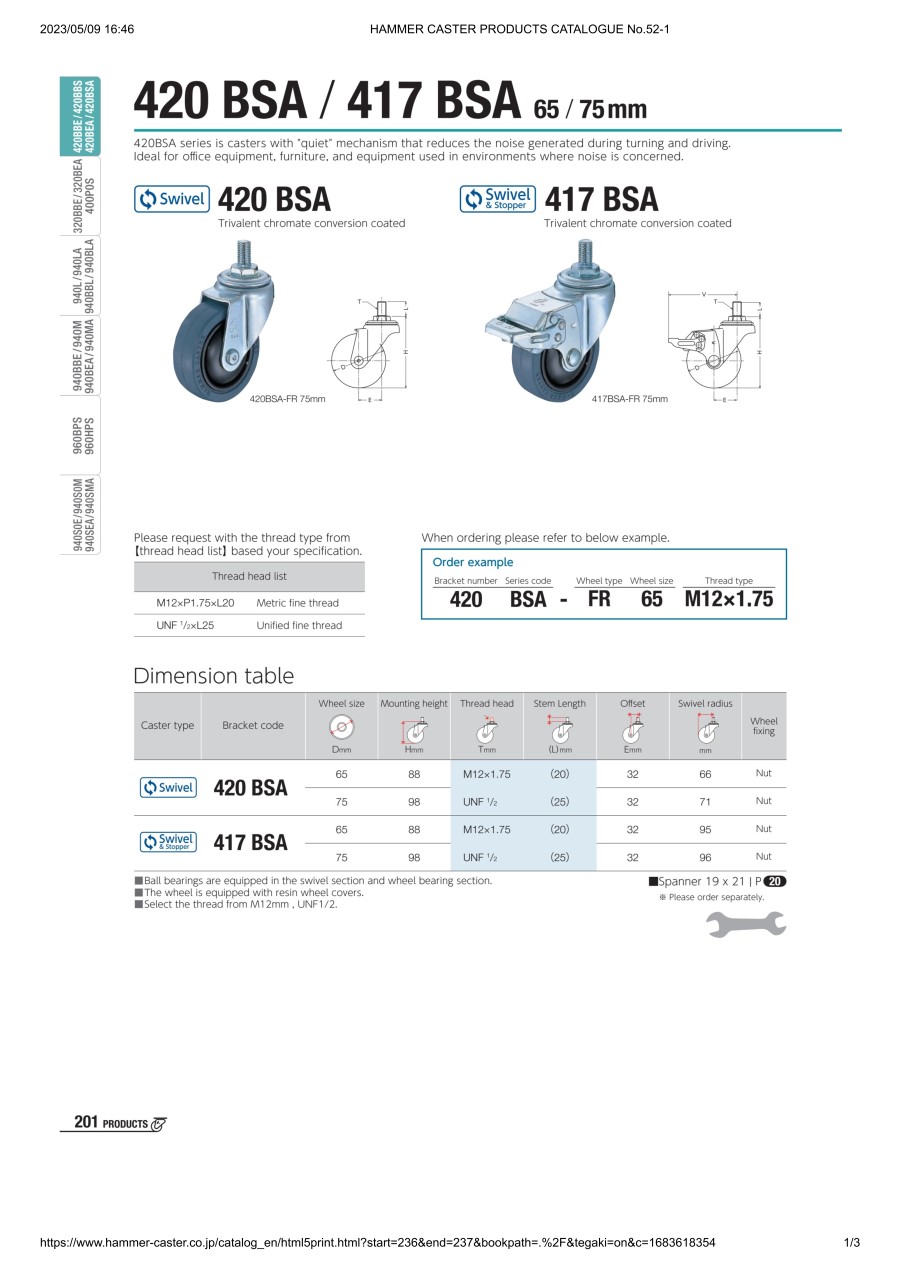

Quiet Cushion-Made Castors 420BSA / 417BSA Wheel Diameter 65 mm / 75 mm

Quiet Cushion-Made Castors 420BSA / 417BSA Wheel Diameter 65 mm / 75 mm

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    417BSA-FR65-M12X1.75
    417BSA-FR75-M12X1.75
    420BSA-FR65-M12X1.75
    420BSA-FR75-M12X1.75

    Mounting Height H or H1 and H2

    (mm)

    Stopper

    Allowable Load 1 piece

    (daN)

    Wheel Dia. D

    (mm)

    Swivel Radius

    (mm)

    		Minimum order quantity
    88
    With Rotation Stopper
    50
    65
    95
    1 pieces
    98
    With Rotation Stopper
    60
    75
    96
    1 pieces
    88
    NA
    50
    65
    66
    1 pieces
    98
    NA
    60
    75
    71
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    27.89 €
    ( 33.19 € )
    13 working days
    28.91 €
    ( 34.40 € )
    13 working days
    17.93 €
    ( 21.34 € )
    13 working days
    18.86 €
    ( 22.44 € )
    13 working days
  • 1

    • More Information

    Basic information

    [Features]
    · A screw-in caster featuring a "silencing" mechanism that reduces noise generated during swiveling and traveling.
    · Ideal for carts, equipment, etc., that are used in environments where noise is unacceptable, such as office equipment, furniture, and indoor transport carts.
    · Radial ball bearings are employed for the swivel part and wheel bearing part.
    · The wheel includes a resin wheel cover.
    · Screws are selectable from M12 mm/UNF1/2
