Angular contact ball bearings / single row / contact angle 30° / JTEKT KOYO

Configure

Accuracy (JIS)
Internal Diameter(φ)
- 10
- 12
- 15
- 17
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 65
- 70
- 75
- 80
- 85
- 90
- 95
- 100
- 105
- 110
- 120
- 130
- 140
- 150
- 160
- 170
- 180
- 190
- 200
Outer Diameter(φ)
- 26
- 28
- 32
- 35
- 40
- 42
- 47
- 52
- 55
- 62
- 68
- 72
- 75
- 80
- 85
- 90
- 95
- 100
- 110
- 115
- 120
- 125
- 130
- 140
- 145
- 150
- 160
- 170
- 180
- 190
- 200
- 210
- 215
- 225
- 230
- 240
- 250
- 260
- 270
- 280
- 290
- 300
- 310
- 320
- 340
- 360
Width(mm)
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 55
- 58
- 62
- 65
- 68
Basic Dynamic Load Rating(N)
- 6250
- 6750
- 7250
- 7650
- 8250
- 8400
- 9300
- 10000
- 10100
- 12700
- 12900
- 13600
- 14100
- 15400
- 16800
- 17600
- 18100
- 18200
- 18400
- 18500
- 19200
- 19400
- 19800
- 20000
- 20200
- 20700
- 21700
- 21900
- 23400
- 23900
- 25600
- 25700
- 27800
- 28100
- 28800
- 29500
- 30500
- 32500
- 33000
- 33800
- 35200
- 36600
- 37100
- 38000
- 38900
- 39900
- 40200
- 42000
- 42100
- 42600
- 43800
- 44100
- 45100
- 45400
- 45800
- 46300
- 46700
- 47200
- 49200
- 49600
- 49900
- 51000
- 51600
- 53300
- 53500
- 54600
- 56000
- 57700
- 58600
- 60100
- 61000
- 63700
- 66700
- 67000
- 68200
- 69900
- 73100
- 73300
- 73700
- 77100
- 79500
- 80000
- 81500
- 83300
- 85300
- 85500
- 86400
- 87300
- 87800
- 91400
- 93600
- 94900
- 95400
- 98400
- 99700
- 101000
- 103000
- 107000
- 108000
- 111000
- 113000
- 115000
- 116000
- 121000
- 123000
- 127000
- 129000
- 133000
- 139000
- 143000
- 145000
- 147000
- 150000
- 156000
- 160000
- 163000
- 169000
- 170000
- 171000
- 180000
- 182000
- 183000
- 184000
- 187000
- 194000
- 195000
- 197000
- 198000
- 202000
- 209000
- 213000
- 218000
- 222000
- 228000
- 232000
- 238000
- 245000
- 247000
- 259000
- 265000
- 266000
- 271000
- 273000
- 282000
- 288000
- 290000
- 304000
- 308000
- 310000
- 312000
- 340000
- 378000
- 397000
- 405000
- 411000
- 415000
- 434000
Retainer Type
- Pressed
- Machined Cage
Preload
- Light Preload
Contact angle(Degree)
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 6 working days
- Within 7 working days
- Within 8 working days
- Within 9 working days

Angular contact ball bearings / single row / contact angle 30° / JTEKT KOYO

Catalog

Part number:

Still undefined. 194 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Accuracy (JIS)

Internal Diameter

(φ)

Outer Diameter

(φ)

Width

(mm)

Basic Dynamic Load Rating

(N)

Maximum Allowable Rotational Speed

(1/min)

Retainer Type

Basic Load Rating Static Rating

(N)

Preload

Contact angle

(Degree)

Combination

RoHS?

Minimum order quantity

Grade 0	10	26	8	6250	34000	Machined Cage	2350	-	30°	-	10	1 pieces
Grade 0	12	28	8	6750	29000	Machined Cage	2750	-	30°	-	10	1 pieces
Grade 5	12	28	8	7250	40000	Machined Cage	2950	Light Preload	15°	-	10	1 pieces
Grade 0	15	32	9	7650	26000	Machined Cage	3450	-	30°	-	10	1 pieces
Grade 5	15	32	9	7650	26000	Machined Cage	3450	Light Preload	30°	-	10	1 pieces
Grade 4	15	32	9	8250	35000	Machined Cage	3700	Light Preload	15°	-	10	1 pieces
Grade 5	15	32	9	8250	35000	Machined Cage	3700	Light Preload	15°	-	10	1 pieces
Grade 4	15	32	9	8250	35000	Machined Cage	3700	Light Preload	15°	Combination of two pieces	10	1 pieces
Grade 0	17	35	10	8400	23000	Machined Cage	4150	-	30°	-	10	1 pieces
Grade 5	17	35	10	8400	23000	Machined Cage	4150	Light Preload	30°	-	10	1 pieces
Grade 0	20	42	12	12900	19000	Machined Cage	6100	-	30°	-	10	1 pieces
Grade 5	20	42	12	12900	19000	Machined Cage	6100	Light Preload	30°	-	10	1 pieces
Grade 0	25	47	12	14100	17000	Machined Cage	7400	-	30°	-	10	1 pieces
Grade 5	25	47	12	14100	17000	Machined Cage	7400	Light Preload	30°	-	10	1 pieces
Grade 4	25	47	12	15400	23000	Machined Cage	8000	Light Preload	15°	-	10	1 pieces
Grade 4	25	47	12	15400	23000	Machined Cage	8000	Light Preload	15°	Combination of two pieces	10	1 pieces
Grade 0	30	55	13	18200	14000	Machined Cage	10100	-	30°	-	10	1 pieces
Grade 5	30	55	13	18200	14000	Machined Cage	10100	Light Preload	30°	-	10	1 pieces
Grade 4	30	55	13	19800	20000	Machined Cage	11000	Light Preload	15°	-	10	1 pieces
Grade 5	30	55	13	19800	20000	Machined Cage	11000	Light Preload	15°	-	10	1 pieces
Grade 4	30	55	13	19800	20000	Machined Cage	11000	Light Preload	15°	Combination of two pieces	10	1 pieces
Grade 0	35	62	14	21900	12000	Machined Cage	12600	-	30°	-	10	1 pieces
Grade 4	35	62	14	23900	17000	Machined Cage	13700	Light Preload	15°	-	10	1 pieces
Grade 0	40	68	15	23400	11000	Machined Cage	14600	-	30°	-	10	1 pieces
Grade 5	40	68	15	23400	11000	Machined Cage	14600	Light Preload	30°	-	10	1 pieces
Grade 5	40	68	15	25700	15000	Machined Cage	15900	Light Preload	15°	-	10	1 pieces
Grade 0	45	75	16	27800	10000	Machined Cage	17700	-	30°	-	10	1 pieces
Grade 4	45	75	16	30500	14000	Machined Cage	19300	Light Preload	15°	-	10	1 pieces
Grade 5	45	75	16	30500	14000	Machined Cage	19300	Light Preload	15°	-	10	1 pieces
Grade 0	50	80	16	29500	9200	Machined Cage	20100	-	30°	-	10	1 pieces
Grade 4	50	80	16	29500	9200	Machined Cage	20100	Light Preload	30°	-	10	1 pieces
Grade 4	50	80	16	32500	13000	Machined Cage	21900	Light Preload	15°	-	10	1 pieces
Grade 5	50	80	16	32500	13000	Machined Cage	21900	Light Preload	15°	-	10	1 pieces
Grade 0	55	90	18	38900	8300	Machined Cage	26300	-	30°	-	10	1 pieces
Grade 5	55	90	18	42600	11000	Machined Cage	28600	Light Preload	15°	-	10	1 pieces
Grade 0	60	95	18	39900	7700	Machined Cage	28100	-	30°	-	10	1 pieces
Grade 4	60	95	18	43800	11000	Machined Cage	30600	Light Preload	15°	-	10	1 pieces
Grade 5	60	95	18	43800	11000	Machined Cage	30600	Light Preload	15°	-	10	1 pieces
Grade 0	65	100	18	42100	7200	Machined Cage	31400	-	30°	-	10	1 pieces
Grade 5	65	100	18	46300	10000	Machined Cage	34300	Light Preload	15°	-	10	1 pieces
Grade 0	70	110	20	53300	6600	Machined Cage	39400	-	30°	-	10	1 pieces
Grade 4	70	110	20	53300	6600	Machined Cage	39400	Light Preload	30°	-	10	1 pieces
Grade 4	70	110	20	58600	9200	Machined Cage	43000	Light Preload	15°	-	10	1 pieces
Grade 5	70	110	20	58600	9200	Machined Cage	43000	Light Preload	15°	-	10	1 pieces
Grade 0	75	115	20	54600	6300	Machined Cage	41700	-	30°	-	10	1 pieces
Grade 5	75	115	20	60100	8700	Machined Cage	45600	Light Preload	15°	-	10	1 pieces
Grade 0	80	125	22	66700	5800	Machined Cage	50600	-	30°	-	10	1 pieces
Grade 4	80	125	22	66700	5800	Machined Cage	50600	Light Preload	30°	-	10	1 pieces
Grade 4	80	125	22	73300	8000	Machined Cage	55300	Light Preload	15°	-	10	1 pieces
Grade 0	85	130	22	68200	5500	Machined Cage	53700	-	30°	-	10	1 pieces
Grade 5	85	130	22	68200	5500	Machined Cage	53700	Light Preload	30°	-	10	1 pieces
Grade 0	90	140	24	81500	5100	Machined Cage	63300	-	30°	-	10	1 pieces
Grade 4	90	140	24	81500	5100	Machined Cage	63300	Light Preload	30°	-	10	1 pieces
Grade 0	95	145	24	83300	4800	Machined Cage	67100	-	30°	-	10	1 pieces
Grade 0	100	150	24	85500	4700	Machined Cage	70600	-	30°	-	10	1 pieces
Grade 0	105	160	26	99700	4400	Machined Cage	81900	-	30°	-	10	1 pieces
Grade 0	110	170	28	115000	4200	Machined Cage	92800	-	30°	-	10	1 pieces
Grade 0	120	180	28	121000	3900	Machined Cage	103000	-	30°	-	10	1 pieces
Grade 5	120	180	28	133000	5400	Machined Cage	113000	Light Preload	15°	-	10	1 pieces
Grade 0	130	200	33	147000	3500	Machined Cage	125000	-	30°	-	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

13.59 € ( 16.17 € )	9 working days
13.77 € ( 16.39 € )	7 working days
25.32 € ( 30.13 € )	8 working days
16.06 € ( 19.11 € )	6 working days
29.15 € ( 34.69 € )	8 working days
43.84 € ( 52.17 € )	8 working days
29.15 € ( 34.69 € )	8 working days
91.57 € ( 108.97 € )	8 working days
16.46 € ( 19.59 € )	6 working days
30.05 € ( 35.76 € )	8 working days
18.94 € ( 22.54 € )	6 working days
34.78 € ( 41.39 € )	8 working days
21.34 € ( 25.39 € )	6 working days
38.61 € ( 45.95 € )	8 working days
57.92 € ( 68.92 € )	8 working days
85.45 € ( 101.69 € )	8 working days
23.76 € ( 28.27 € )	6 working days
42.69 € ( 50.80 € )	8 working days
63.74 € ( 75.85 € )	8 working days
42.69 € ( 50.80 € )	8 working days
94.44 € ( 112.38 € )	8 working days
25.54 € ( 30.39 € )	8 working days
68.99 € ( 82.10 € )	8 working days
31.79 € ( 37.83 € )	8 working days
57.21 € ( 68.08 € )	8 working days
57.21 € ( 68.08 € )	8 working days
38.69 € ( 46.04 € )	8 working days
107.66 € ( 128.12 € )	8 working days
75.21 € ( 89.50 € )	8 working days
44.48 € ( 52.93 € )	8 working days
87.29 € ( 103.88 € )	8 working days
87.29 € ( 103.88 € )	8 working days
86.45 € ( 102.88 € )	8 working days
52.83 € ( 62.87 € )	8 working days
102.33 € ( 121.77 € )	8 working days
61.31 € ( 72.96 € )	8 working days
124.40 € ( 148.04 € )	8 working days
83.95 € ( 99.90 € )	8 working days
75.77 € ( 90.17 € )	8 working days
103.65 € ( 123.34 € )	8 working days
87.18 € ( 103.74 € )	8 working days
171.95 € ( 204.62 € )	8 working days
171.95 € ( 204.62 € )	8 working days
118.93 € ( 141.53 € )	8 working days
95.67 € ( 113.85 € )	8 working days
130.23 € ( 154.97 € )	8 working days
115.17 € ( 137.05 € )	8 working days
234.55 € ( 279.11 € )	8 working days
234.55 € ( 279.11 € )	8 working days
93.75 € ( 111.56 € )	8 working days
184.43 € ( 219.47 € )	8 working days
108.43 € ( 129.03 € )	8 working days
312.46 € ( 371.83 € )	8 working days
122.59 € ( 145.88 € )	8 working days
142.09 € ( 169.09 € )	8 working days
172.90 € ( 205.75 € )	8 working days
211.68 € ( 251.90 € )	8 working days
238.91 € ( 284.30 € )	8 working days
469.84 € ( 559.11 € )	8 working days
297.98 € ( 354.60 € )	8 working days

Basic information

Basic information

Angular contact ball bearings are suitable for applications which require high accuracy and good high-speed performance. This type of bearing is designed to carry a combined load. The smaller the contact angle, the better the high speed rotation, and the larger the contact angle, the greater the axial load capacity.

Catalog

Products homepage

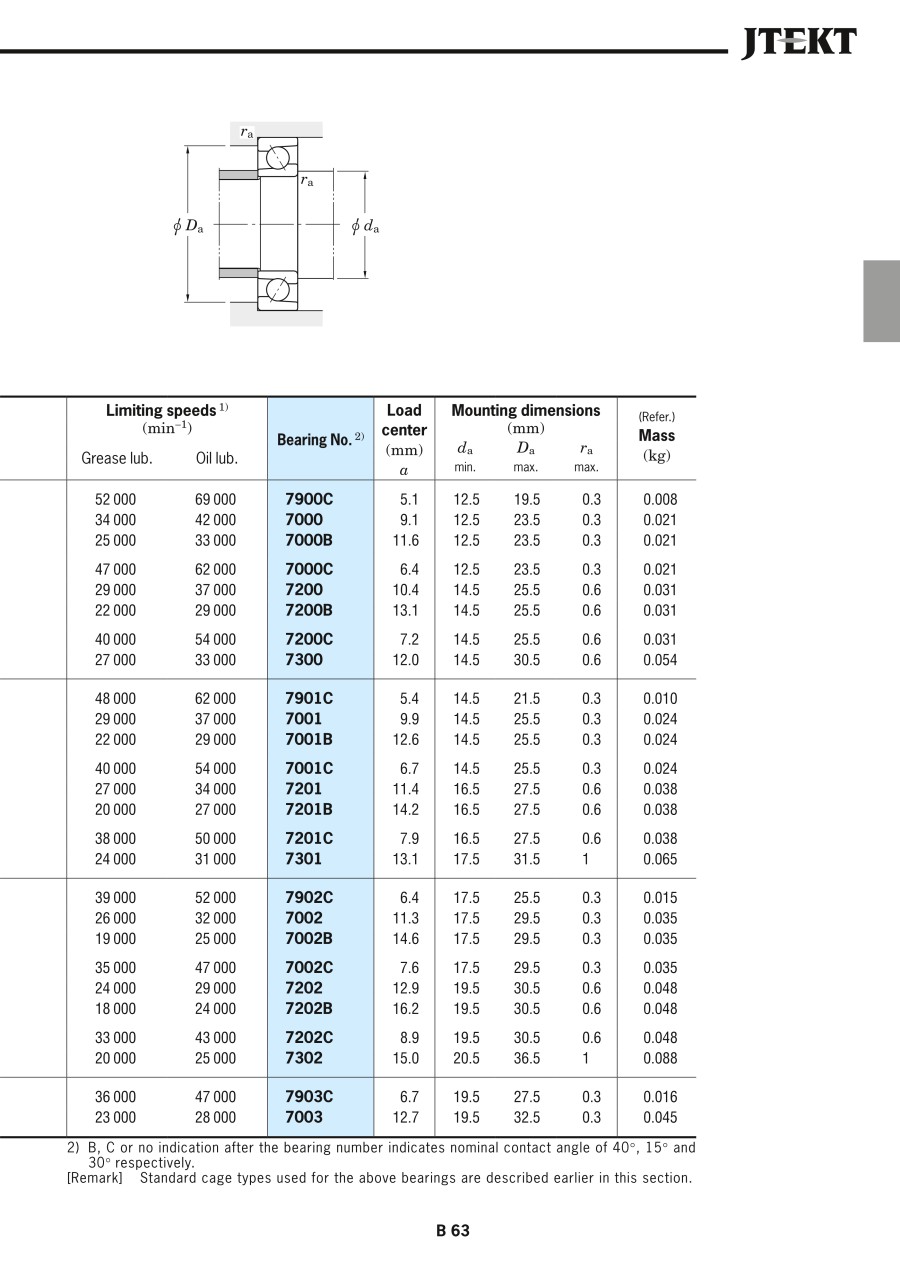

Catalog (2-page spread)
