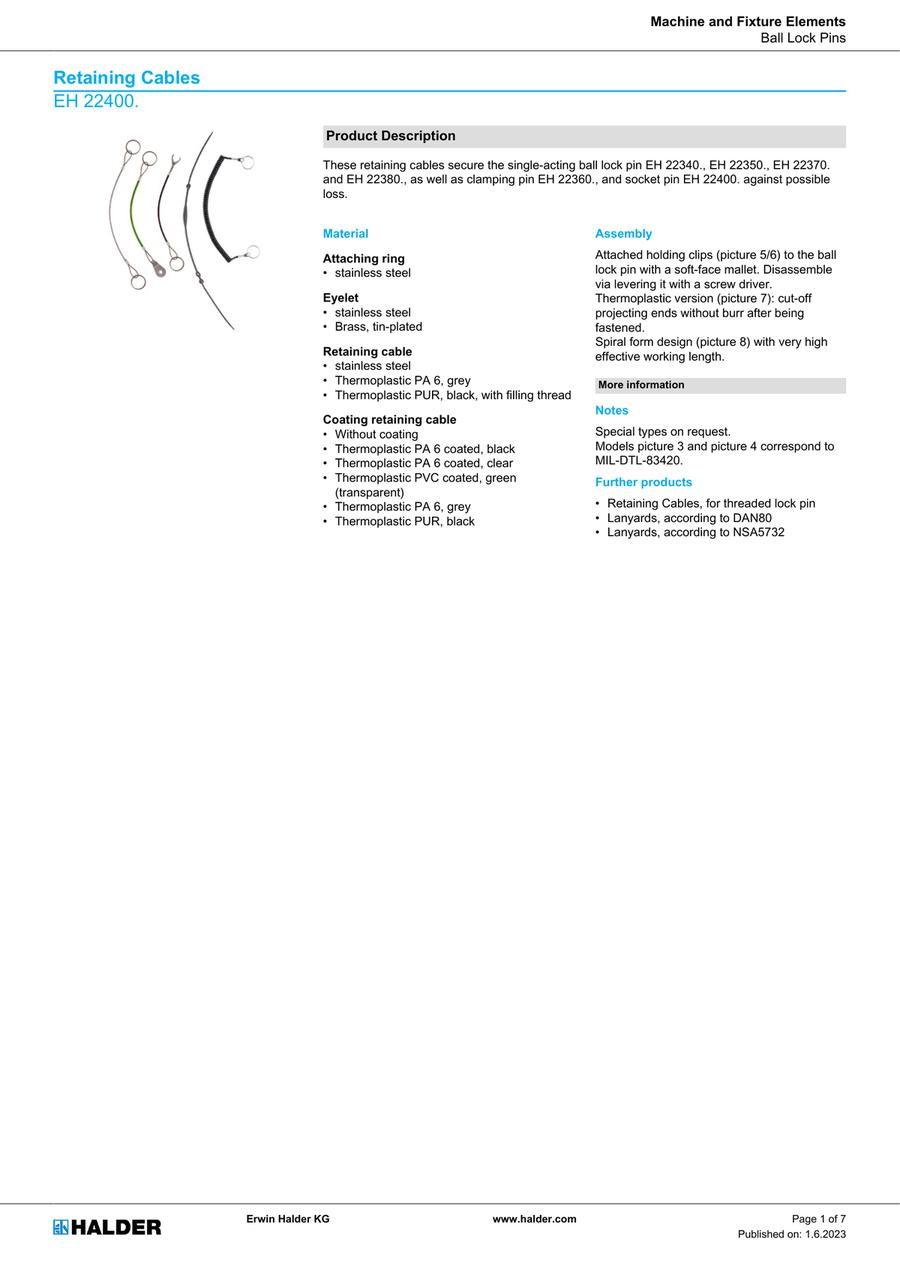

Retaining Cables

Attaching ring
• Stainless steel
Eyelet
• Stainless steel
• Brass, tin-plated
Retaining cable
• Stainless steel
• Thermoplastic PA 6, grey
• Thermoplastic PUR, black, with filling thread
Coating retaining cable
• Without coating
• Thermoplastic PA 6 coated, black
• Thermoplastic PA 6 coated, clear
• Thermoplastic PVC coated, green (transparent)
• Thermoplastic PA 6, grey
• Thermoplastic PUR, black

Attached holding clips (picture 5/6) to the ball lock pin with a soft-face mallet. Disassemble via levering it with a screw driver.
Thermoplastic version (picture 7): cut-off projecting ends without burr after being fastened.
Spiral form design (picture 8) with very high effective working length.

Special types on request.
Models picture 3 and picture 4 correspond to MIL-DTL-83420.

• Retaining Cables, for threaded lock pin
• Lanyards, according to DAN80
• Lanyards, according to NSA5732

picture 1 picture 5 picture 2 picture 6 picture 3 picture 7 picture 4 picture 8

Dimensions			Suitable for size	Operating temperature range	Weight	Art. No.
l	l1	l2		max.
		max.
[mm]			[mm]	[°C]	[g]
stainless steel, with 2 attaching rings – picture 1, Thermoplastic PA 6 coated, black
150	–	–	–	80	7.8	22400.09401)
200	–	–	–	80	8.4	22400.09411)
300	–	–	–	80	9.1	22400.09431)
stainless steel, with attaching ring and eyelet – picture 2, Thermoplastic PA 6 coated, black
150	–	–	–	80	7.7	22400.09451)
200	–	–	–	80	7.5	22400.09461)
300	–	–	–	80	8.6	22400.09481)
stainless steel, with 2 attaching rings – picture 1, Thermoplastic PA 6 coated, clear
150	–	–	–	80	7.8	22400.09501)
200	–	–	–	80	8.5	22400.09521)
300	–	–	–	80	9.7	22400.09561)
stainless steel, with attaching ring and eyelet – picture 2, Thermoplastic PA 6 coated, clear
150	–	–	–	80	7.8	22400.09601)
200	–	–	–	80	7.6	22400.09621)
300	–	–	–	80	8.6	22400.09661)
stainless steel, with 2 attaching rings – picture 1, Without coating
150	–	–	–	250	7.4	22400.09301)
200	–	–	–	250	7.9	22400.09311)
300	–	–	–	250	8.9	22400.09331)
stainless steel, with attaching ring and eyelet – picture 2, Without coating
150	–	–	–	250	6.6	22400.09351)
200	–	–	–	250	7.0	22400.09361)
300	–	–	–	250	8.0	22400.09381)
stainless steel, with fixing tab, rectangular and attaching ring – picture 3, Thermoplastic PVC coated, green (transparent)
150	–	–	–	80	11.0	22400.13011)
200	–	–	–	80	12.0	22400.13021)
300	–	–	–	80	14.0	22400.13031)
stainless steel, with fixing tab in drop shape and attaching ring – picture 4, Thermoplastic PVC coated, green (transparent)
150	–	–	–	80	11.0	22400.13111)
200	–	–	–	80	12.0	22400.13121)
300	–	–	–	80	14.0	22400.13131)
stainless steel, with holding clip and eyelet – picture 5, Thermoplastic PA 6 coated, clear
150	–	–	5/ 6	80	6.1	22400.10012)
150	–	–	8/10	80	7.0	22400.10212)
150	–	–	12/16	80	8.2	22400.10412)
150	–	–	20/25	80	11.0	22400.10612)
200	–	–	5/ 6	80	6.8	22400.10022)
200	–	–	8/10	80	7.6	22400.10222)
200	–	–	12/16	80	8.8	22400.10422)
200	–	–	20/25	80	12.0	22400.10622)
300	–	–	5/ 6	80	8.0	22400.10032)
300	–	–	8/10	80	8.9	22400.10232)
300	–	–	12/16	80	10.0	22400.10432)
300	–	–	20/25	80	13.0	22400.10632)
stainless steel, with holding clip and eyelet – picture 5, Thermoplastic PA 6 coated, black
150	–	–	5/ 6	80	6.2	22400.11012)
150	–	–	8/10	80	7.1	22400.11212)
150	–	–	12/16	80	8.2	22400.11412)
150	–	–	20/25	80	11.0	22400.11612)
200	–	–	5/ 6	80	6.8	22400.11022)
200	–	–	8/10	80	7.7	22400.11222)
200	–	–	12/16	80	8.9	22400.11422)
200	–	–	20/25	80	12.0	22400.11622)
300	–	–	5/ 6	80	8.0	22400.11032)
300	–	–	8/10	80	8.9	22400.11232)
300	–	–	12/16	80	10.0	22400.11432)
300	–	–	20/25	80	13.0	22400.11632)
stainless steel, with holding clip and eyelet – picture 5, Without coating
150	–	–	5/ 6	250	5.8	22400.12012)
150	–	–	8/10	250	6.7	22400.12212)
150	–	–	12/16	250	7.9	22400.12412)
150	–	–	20/25	250	11.0	22400.12612)
200	–	–	5/ 6	250	6.3	22400.12022)
200	–	–	8/10	250	7.2	22400.12222)
200	–	–	12/16	250	8.4	22400.12422)
200	–	–	20/25	250	11.0	22400.12622)
300	–	–	5/ 6	250	7.3	22400.12032)
300	–	–	8/10	250	8.2	22400.12232)
300	–	–	12/16	250	9.5	22400.12432)
300	–	–	20/25	250	13.0	22400.12632)
stainless steel, with holding clip and attaching ring – picture 6, Thermoplastic PA 6 coated, clear
150	–	–	5/ 6	80	6.3	22400.10112)
150	–	–	8/10	80	7.2	22400.10312)
150	–	–	12/16	80	8.4	22400.10512)
150	–	–	20/25	80	11.0	22400.10712)
200	–	–	5/ 6	80	6.9	22400.10122)
200	–	–	8/10	80	7.8	22400.10322)
200	–	–	12/16	80	9.0	22400.10522)
200	–	–	20/25	80	12.0	22400.10722)
300	–	–	5/ 6	80	8.2	22400.10132)
300	–	–	8/10	80	9.0	22400.10332)
300	–	–	12/16	80	10.0	22400.10532)
300	–	–	20/25	80	13.0	22400.10732)
stainless steel, with holding clip and attaching ring – picture 6, Thermoplastic PA 6 coated, black
150	–	–	5/ 6	80	6.3	22400.11112)
150	–	–	8/10	80	7.3	22400.11312)
150	–	–	12/16	80	8.4	22400.11512)
150	–	–	20/25	80	11.0	22400.11712)
200	–	–	5/ 6	80	7.0	22400.11122)
200	–	–	8/10	80	7.8	22400.11322)
200	–	–	12/16	80	9.0	22400.11522)
200	–	–	20/25	80	12.0	22400.11722)
300	–	–	5/ 6	80	8.2	22400.11132)
300	–	–	8/10	80	9.0	22400.11332)
300	–	–	12/16	80	10.0	22400.11532)
300	–	–	20/25	80	13.0	22400.11732)
stainless steel, with holding clip and attaching ring – picture 6, Without coating
150	–	–	5/ 6	250	5.9	22400.12112)
150	–	–	8/10	250	6.8	22400.12312)
150	–	–	12/16	250	8.0	22400.12512)
150	–	–	20/25	250	11.0	22400.12712)
200	–	–	5/ 6	250	6.4	22400.12122)
200	–	–	8/10	250	7.3	22400.12322)
200	–	–	12/16	250	8.5	22400.12522)
200	–	–	20/25	250	12.0	22400.12722)
300	–	–	5/ 6	250	7.4	22400.12132)
300	–	–	8/10	250	8.6	22400.12332)
300	–	–	12/16	250	9.5	22400.12532)
300	–	–	20/25	250	13.0	22400.12732)
with double sided clamping/indexing mechanism – picture 7, Thermoplastic PA 6, grey
150	–	–	–	80	1.8	22400.0970
250	–	–	–	80	2.4	22400.0974
spiral form, with attaching rings – picture 8, Thermoplastic PUR, black
–	100	600	–	80	15.0	22400.09801)
–	200	1200	–	80	16.0	22400.09821)

¹⁾ not for ball lock pins, basic type
²⁾ for ball lock pins, basic type
