Forehead washers / conical countersunk hole, chamfered / steel / burnished
Part number:
possible part numbers found.Product information

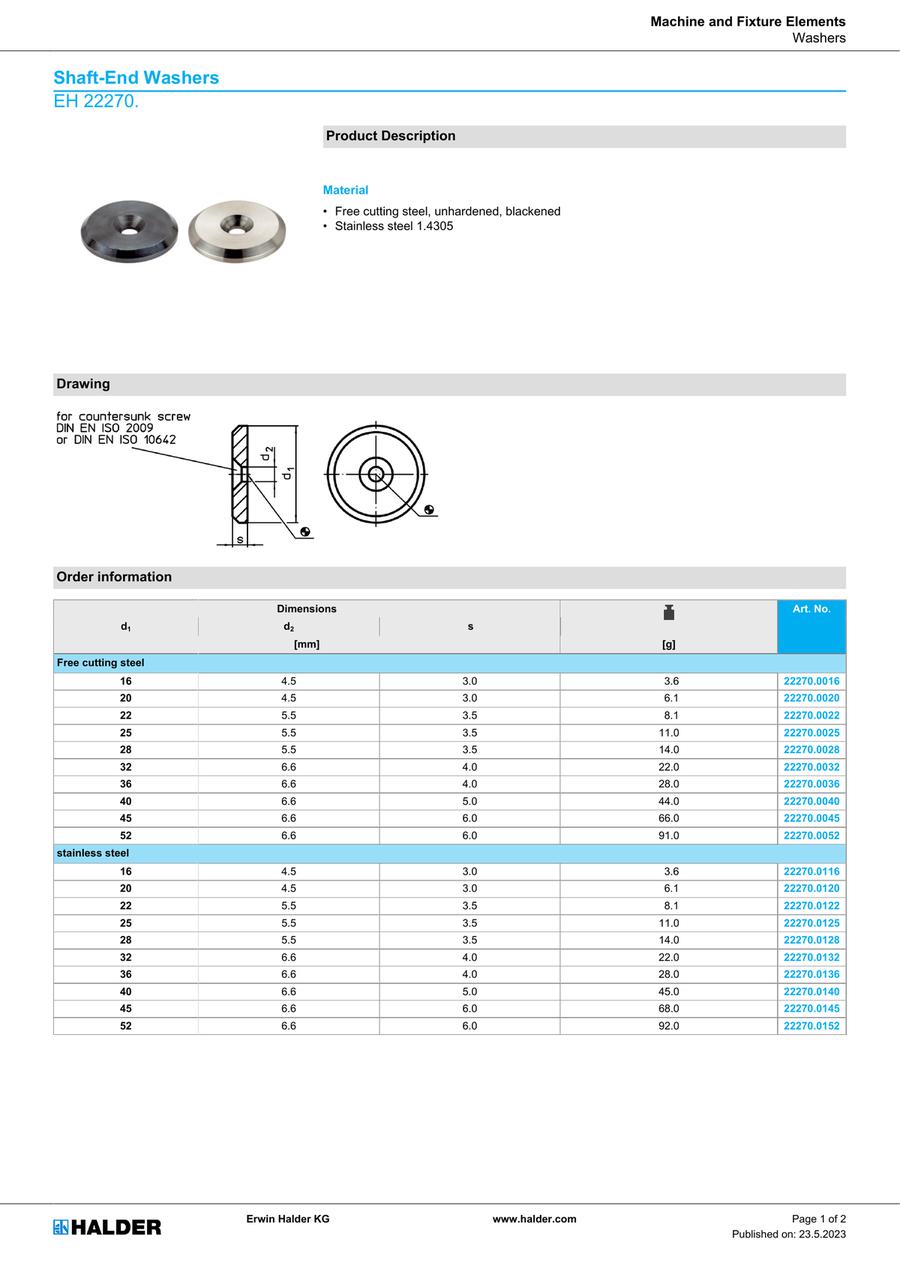

Shaft-End Washers, EH 22270.
Product Description
Material
• Free cutting steel, unhardened, blackened
• Stainless steel 1.4305
• Stainless steel 1.4305
Drawing
Order Information
| Dimensions | Weight | Art. No. | ||
| d1 | d2 | s | ||
| [mm] | [g] | |||
| Free cutting steel | ||||
| 16 | 4.5 | 3.0 | 3.6 | 22270.0016 |
| 20 | 4.5 | 3.0 | 6.1 | 22270.0020 |
| 22 | 5.5 | 3.5 | 8.1 | 22270.0022 |
| 25 | 5.5 | 3.5 | 11.0 | 22270.0025 |
| 28 | 5.5 | 3.5 | 14.0 | 22270.0028 |
| 32 | 6.6 | 4.0 | 22.0 | 22270.0032 |
| 36 | 6.6 | 4.0 | 28.0 | 22270.0036 |
| 40 | 6.6 | 5.0 | 44.0 | 22270.0040 |
| 45 | 6.6 | 6.0 | 66.0 | 22270.0045 |
| 52 | 6.6 | 6.0 | 91.0 | 22270.0052 |
| Stainless steel | ||||
| 16 | 4.5 | 3.0 | 3.6 | 22270.0116 |
| 20 | 4.5 | 3.0 | 6.1 | 22270.0120 |
| 22 | 5.5 | 3.5 | 8.1 | 22270.0122 |
| 25 | 5.5 | 3.5 | 11.0 | 22270.0125 |
| 28 | 5.5 | 3.5 | 14.0 | 22270.0128 |
| 32 | 6.6 | 4.0 | 22.0 | 22270.0132 |
| 36 | 6.6 | 4.0 | 28.0 | 22270.0136 |
| 40 | 6.6 | 5.0 | 44.0 | 22270.0140 |
| 45 | 6.6 | 6.0 | 66.0 | 22270.0145 |
| 52 | 6.6 | 6.0 | 91.0 | 22270.0152 |
Application Example
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
1.05 € ( 1.25 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.08 € ( 1.29 € ) | 3 working days |
1.50 € ( 1.78 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.58 € ( 1.88 € ) | 2 working days |
1.73 € ( 2.06 € ) | 4 working days |
2.20 € ( 2.62 € ) | Stock item: 1 working dayAvailable for same-day shipping |
2.54 € ( 3.02 € ) | Stock item: 1 working dayAvailable for same-day shipping |
3.27 € ( 3.89 € ) | Stock item: 1 working dayAvailable for same-day shipping |
4.05 € ( 4.82 € ) | 4 working days |
5.18 € ( 6.16 € ) | 4 working days |
1.63 € ( 1.94 € ) | Stock item: 1 working dayAvailable for same-day shipping |
1.95 € ( 2.32 € ) | 4 working days |
2.78 € ( 3.31 € ) | 4 working days |
2.91 € ( 3.46 € ) | Stock item: 1 working dayAvailable for same-day shipping |
2.93 € ( 3.49 € ) | 4 working days |
3.72 € ( 4.43 € ) | 4 working days |
3.60 € ( 4.28 € ) | 4 working days |
4.19 € ( 4.99 € ) | 2 working days |
5.24 €3.25 € ( 3.87 € ) | Stock item: 1 working dayAvailable for same-day shipping |
6.43 € ( 7.65 € ) | 2 working days |
More Information
Basic information
[Specifications]
・Product type: Forehead washers
・Shape: Straight
・Material: Steel, Stainless Steel
・Surface Treatment: No, Triiron Film
・REACH compliant: Yes
[Features]
・Free cutting steel, unhardened, blackened
