    • HALDER

    Eccentric Clamping Clamps

    Eccentric Clamping Clamps

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Product information

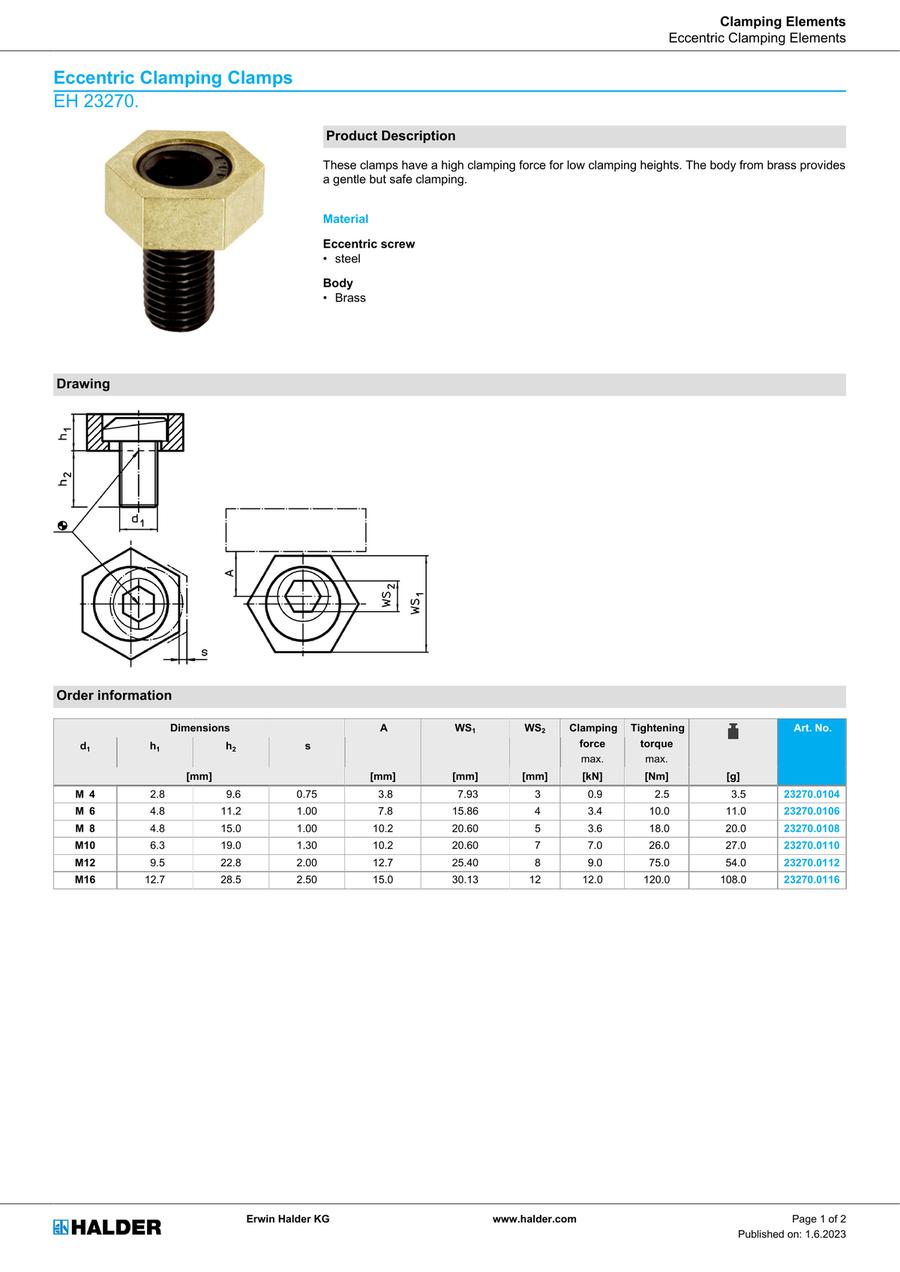

    Eccentric Clamping Clamps, EH 23270.

    Product Description

    These clamps have a high clamping force for low clamping heights. The body from brass provides a gentle but safe clamping.

    Material

    Eccentric screw
    • Steel
    Body
    • Brass

    Drawing

    Order Information

    DimensionsAWS1WS2Clamping force
    max.    		Tightening torque
    max.    		WeightArt. No.
    d1h1h2s
    [mm][mm][mm][mm][kN][Nm][g]
    M 42.89.60.753.87.9330.92.53.523270.0104
    M 64.811.21.007.815.8643.410.011.023270.0106
    M 84.815.01.0010.220.6053.618.020.023270.0108
    M106.319.01.3010.220.6077.026.027.023270.0110
    M129.522.82.0012.725.4089.075.054.023270.0112
    M1612.728.52.5015.030.131212.0120.0108.023270.0116

    Application Example

    Part number list

    Number of items
  • 1
    • Part number
    23270.0104
    23270.0106
    23270.0108
    23270.0110
    23270.0112
    23270.0116
    Related

    d1

    (mm)

    h1

    (mm)

    h2

    (mm)

    WS1

    (mm)

    WS2

    (mm)

    A

    (mm)

    s

    (mm)

    Tightening torque max.

    (Nm)

    Clamping force

    (kN)

    		RoHS?Minimum order quantity

    Data sheet

    M4
    2.8
    9.6
    7.93
    3
    3.8
    0.75
    2.5
    0.9
    10
    1 pieces

    Data sheet

    M6
    4.8
    11.2
    15.86
    4
    7.8
    1
    10
    3.4
    10
    1 pieces

    Data sheet

    M8
    4.8
    15
    20.6
    5
    10.2
    1
    18
    3.6
    10
    1 pieces

    Data sheet

    M10
    6.3
    19
    20.6
    7
    10.2
    1.3
    26
    7
    10
    1 pieces

    Data sheet

    M12
    9.5
    22.8
    25.4
    8
    12.7
    2
    75
    9
    10
    2 pieces

    Data sheet

    M16
    12.7
    28.5
    30.13
    12
    15
    2.5
    120
    12
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    9.69 €
    ( 11.53 € )
    Stock item: 1 working dayAvailable for same-day shipping
    10.32 €
    ( 12.28 € )
    Stock item: 1 working dayAvailable for same-day shipping
    11.08 €
    ( 13.19 € )
    Stock item: 1 working dayAvailable for same-day shipping
    11.65 €
    ( 13.86 € )
    4 working days
    16.19 €
    ( 19.27 € )
    4 working days
    24.47 €
    ( 29.12 € )
    4 working days
  • 1

    • More Information

    Basic information

    These clamps have a high clamping force for low clamping heights. The body from brass provides a gentle but safe clamping.
