    • HALDER

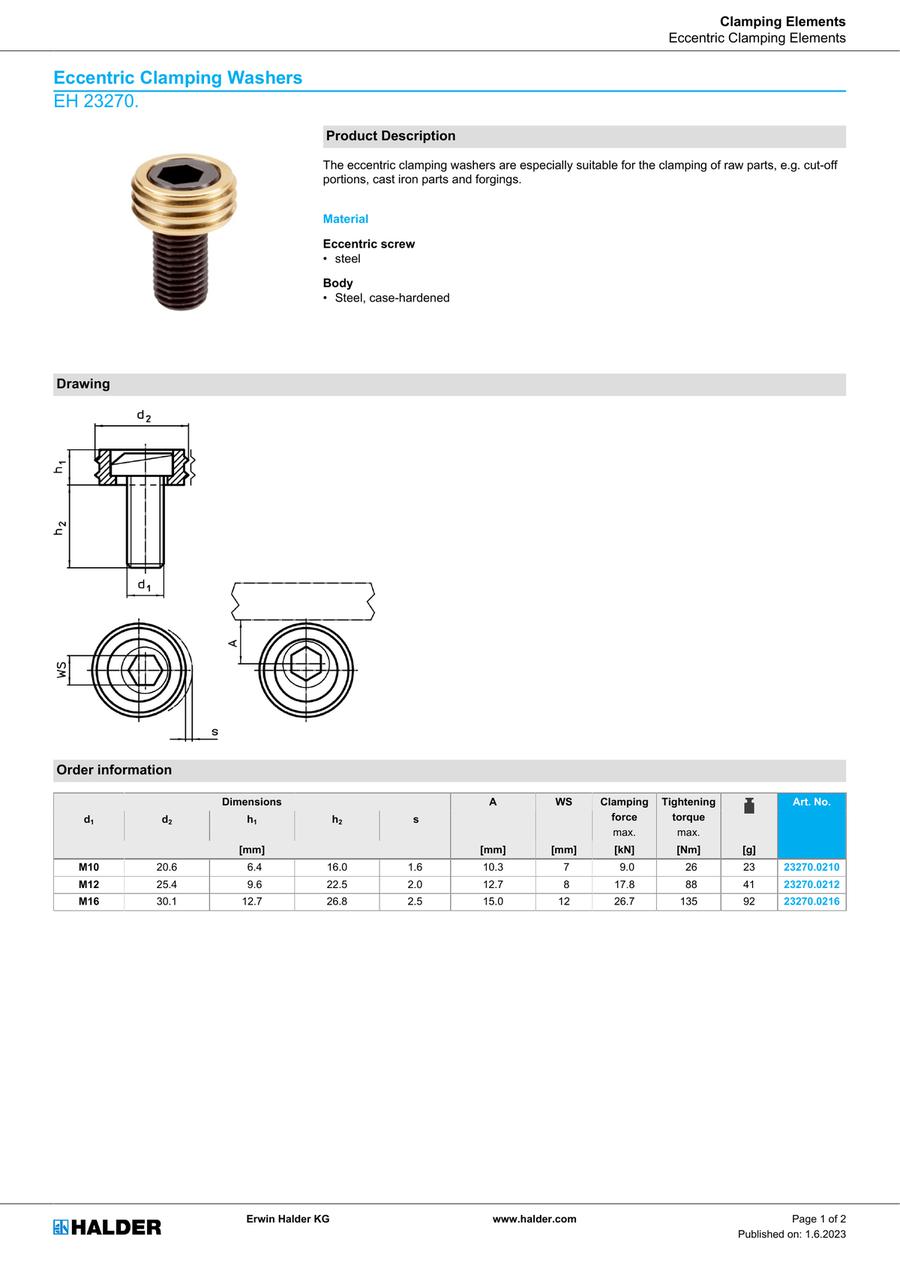

    Eccentric Clamping Washers

    Eccentric Clamping Washers

    Part number:

    Still undefined. 3 possible part numbers found.
    Quantity:

    Product information



    Example

    Part number list

    Number of items
  • 1
    • Part number
    23270.0210
    23270.0212
    23270.0216
    Related

    d1

    (mm)

    d2

    (mm)

    h1

    (mm)

    h2

    (mm)

    WS

    (mm)

    A

    (mm)

    s

    (mm)

    Tightening torque max.

    (Nm)

    Clamping force

    (kN)

    		RoHS?Minimum order quantity

    Data sheet

    M10
    20.6
    9.6
    16
    7
    10.3
    1.6
    26
    9
    10
    1 pieces

    Data sheet

    M12
    25.4
    9.6
    22.5
    8
    12.7
    2
    88
    17.8
    10
    1 pieces

    Data sheet

    M16
    30.1
    12.7
    26.8
    12
    15
    2.5
    135
    26.7
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    37.12 €
    ( 44.17 € )
    4 working days
    32.31 €
    ( 38.45 € )
    4 working days
    42.00 €26.04 €
    ( 30.99 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    The eccentric clamp washers are especially suitable for the clamping of raw parts, e.g. cut-off portions, cast iron parts and forgings.
