Index Bolt Compact, With Hexagon Collar And Locking
- Promotional pricing ends 30/11/2024
· For index holes.
· Pull the knob and rotate 90 degrees to fix the pin in place in a withdrawn state using the notch.
· External dimensions are the same regardless of whether or not holding mechanisms are present.
· The roots of screw parts are loosened, so they can be screwed in fully.
· Operating temperature range is from -30 to +80°C.
· Use the distance collar (EH22120) to adjust the depth of the screw-in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

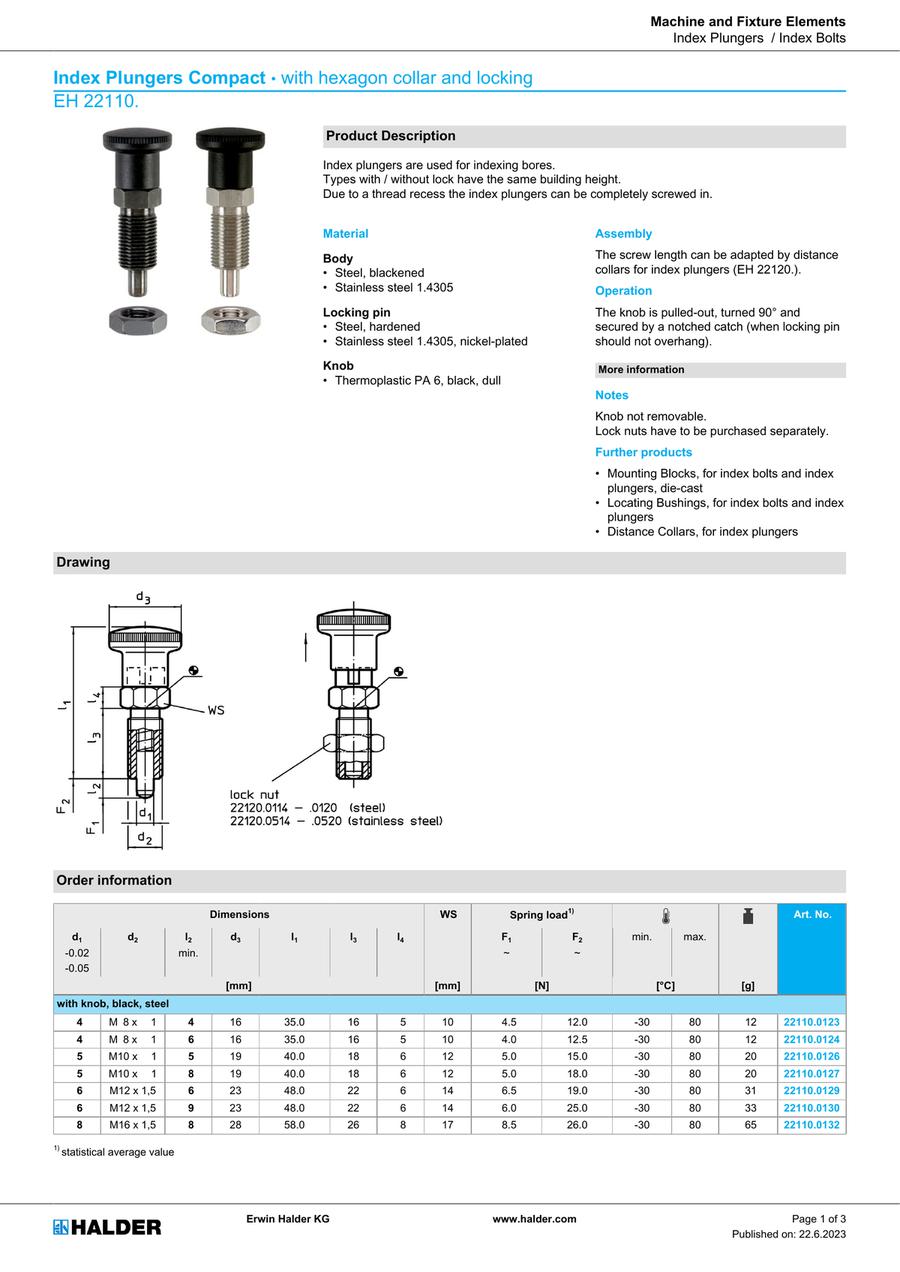

Index Plungers Compact • with hexagon collar and locking, EH 22110.
Product Description
 | Index plungers are used for indexing bores. Types with / without lock have the same building height. Due to a thread recess the index plungers can be completely screwed in. |
Material
• Steel, blackened
• Stainless steel 1.4305
Locking pin
• Steel, hardened
• Stainless steel 1.4305, nickel-plated
Knob
• Thermoplastic PA 6, black, dull
Assembly
Operation
Notes
Lock nuts have to be purchased separately.
Further products
• Locating Bushings, for index bolts and index plungers
• Distance Collars, for index plungers
Drawing
Order Information
| Dimensions | WS | Spring load1) | Operating temperature range | Weight | Art. No. | ||||||||
| d1 | d2 | l2 | d3 | l1 | l3 | l4 | F1 | F2 | min. | max. | |||
| -0.02 -0.05 | min. | ~ | ~ | ||||||||||
| [mm] | [mm] | [N] | [°C] | [g] | |||||||||
| with knob, black, steel | |||||||||||||
| 4 | M 8 x 1 | 4 | 16 | 35.0 | 16 | 5 | 10 | 4.5 | 12.0 | -30 | 80 | 12 | 22110.0123 |
| 4 | M 8 x 1 | 6 | 16 | 35.0 | 16 | 5 | 10 | 4.0 | 12.5 | -30 | 80 | 12 | 22110.0124 |
| 5 | M10 x 1 | 5 | 19 | 40.0 | 18 | 6 | 12 | 5.0 | 15.0 | -30 | 80 | 20 | 22110.0126 |
| 5 | M10 x 1 | 8 | 19 | 40.0 | 18 | 6 | 12 | 5.0 | 18.0 | -30 | 80 | 20 | 22110.0127 |
| 6 | M12 x 1,5 | 6 | 23 | 48.0 | 22 | 6 | 14 | 6.5 | 19.0 | -30 | 80 | 31 | 22110.0129 |
| 6 | M12 x 1,5 | 9 | 23 | 48.0 | 22 | 6 | 14 | 6.0 | 25.0 | -30 | 80 | 33 | 22110.0130 |
| 8 | M16 x 1,5 | 8 | 28 | 58.0 | 26 | 8 | 17 | 8.5 | 26.0 | -30 | 80 | 65 | 22110.0132 |
| 8 | M16 x 1,5 | 12 | 28 | 58.0 | 26 | 8 | 17 | 8.5 | 28.0 | -30 | 80 | 68 | 22110.0133 |
| 10 | M16 x 1,5 | 12 | 28 | 58.0 | 26 | 8 | 17 | 9.5 | 38.0 | -30 | 80 | 69 | 22110.0135 |
| 12 | M20 x 1,5 | 15 | 33 | 67.0 | 33 | 10 | 22 | 11.5 | 40.0 | -30 | 80 | 125 | 22110.0136 |
| 16 | M24 x 2 | 20 | 33 | 78.5 | 38 | 12 | 27 | 13.0 | 54.0 | -30 | 80 | 219 | 22110.0137 |
| with knob, black, stainless steel | |||||||||||||
| 4 | M 8 x 1 | 4 | 16 | 35.0 | 16 | 5 | 10 | 4.5 | 12.0 | -30 | 80 | 12 | 22110.0223 |
| 4 | M 8 x 1 | 6 | 16 | 35.0 | 16 | 5 | 10 | 4.0 | 12.5 | -30 | 80 | 12 | 22110.0224 |
| 5 | M10 x 1 | 5 | 19 | 40.0 | 18 | 6 | 12 | 5.0 | 15.0 | -30 | 80 | 20 | 22110.0226 |
| 5 | M10 x 1 | 8 | 19 | 40.0 | 18 | 6 | 12 | 5.0 | 18.0 | -30 | 80 | 20 | 22110.0227 |
| 6 | M12 x 1,5 | 6 | 23 | 48.0 | 22 | 6 | 14 | 6.5 | 19.0 | -30 | 80 | 31 | 22110.0229 |
| 6 | M12 x 1,5 | 9 | 23 | 48.0 | 22 | 6 | 14 | 6.0 | 25.0 | -30 | 80 | 33 | 22110.0230 |
| 8 | M16 x 1,5 | 8 | 28 | 58.0 | 26 | 8 | 17 | 8.5 | 26.0 | -30 | 80 | 65 | 22110.0232 |
| 8 | M16 x 1,5 | 12 | 28 | 58.0 | 26 | 8 | 17 | 8.5 | 28.0 | -30 | 80 | 68 | 22110.0233 |
| 10 | M16 x 1,5 | 12 | 28 | 58.0 | 26 | 8 | 17 | 9.5 | 38.0 | -30 | 80 | 69 | 22110.0235 |
| 12 | M20 x 1,5 | 15 | 33 | 67.0 | 33 | 10 | 22 | 11.5 | 40.0 | -30 | 80 | 125 | 22110.0236 |
| 16 | M24 x 2 | 20 | 33 | 78.5 | 38 | 12 | 27 | 13.0 | 54.0 | -30 | 80 | 219 | 22110.0237 |
Accessories
| Dimensions | Wrench size | Weight | Art. No. | |
| d2 | ||||
| [mm] | [mm] | [g] | ||
| Lock nuts ISO 8675 (DIN 439), steel | ||||
 | M 8 x 1 | 13 | 2.7 | 22120.0114 |
| M10 x 1 | 16 | 5.2 | 22120.0115 | |
| M12 x 1,5 | 18 | 7.5 | 22120.0116 | |
| M16 x 1,5 | 24 | 15.0 | 22120.0118 | |
| M20 x 1,5 | 30 | 32.0 | 22120.0120 | |
| M24 x 2 | 36 | 58.0 | 22120.0122 | |
| Lock nuts ISO 8675 (DIN 439), stainless steel | ||||
 | M 8 x 1 | 13 | 2.7 | 22120.0514 |
| M10 x 1 | 16 | 5.2 | 22120.0515 | |
| M12 x 1,5 | 18 | 7.5 | 22120.0516 | |
| M16 x 1,5 | 24 | 15.0 | 22120.0518 | |
| M20 x 1,5 | 30 | 32.0 | 22120.0520 | |
| M24 x 2 | 36 | 58.0 | 22120.0522 | |
Application Example
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Type | Mounting Method | Operation Knob | Main Body Surface Treatment | Tip O.D. d (Ø) | d2 (mm) | d3 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | F1 (N) | F2 (N) | Stroke (mm) | WS (mm) | Knob | Locking pin | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.75 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | Black Oxide | 4 | M8 x 1 | 16 | 35 | 4 | 16 | 5 | ~ 4.5 | ~ 12 | 4 | 10 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
9.75 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 4 | M8 x 1 | 16 | 35 | 6 | 16 | 5 | ~ 4 | ~ 12.5 | 6 | 10 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
10.44 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 5 | M10 x 1 | 19 | 40 | 5 | 18 | 6 | ~ 5 | ~ 15 | 5 | 12 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
10.44 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 5 | M10 x 1 | 19 | 40 | 8 | 18 | 6 | ~ 5 | ~ 18 | 8 | 12 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
11.72 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | Black Oxide | 6 | M12 x 1,5 | 23 | 48 | 6 | 22 | 6 | ~ 6.5 | ~ 19 | 6 | 14 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
11.72 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 6 | M12 x 1,5 | 23 | 48 | 9 | 22 | 6 | ~ 6 | ~ 25 | 9 | 14 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
13.92 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 8 | M16 x 1,5 | 28 | 58 | 8 | 26 | 8 | ~ 8.5 | ~ 26 | 8 | 17 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
13.92 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 8 | M16 x 1,5 | 28 | 58 | 12 | 26 | 8 | ~ 8.5 | ~ 28 | 12 | 17 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
13.92 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | Black Oxide | 10 | M16 x 1,5 | 28 | 58 | 12 | 26 | 8 | ~ 9.5 | ~ 38 | 12 | 17 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
19.88 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | Black Oxide | 12 | M20 x 1,5 | 33 | 67 | 15 | 33 | 10 | ~ 11.5 | ~ 40 | 15 | 22 | Thermoplastic PA 6, black, dull | Steel, hardened | |||
13.18 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | - | 4 | M8 x 1 | 16 | 35 | 4 | 16 | 5 | ~ 4.5 | ~ 12 | 4 | 10 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
13.18 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | - | 4 | M8 x 1 | 16 | 35 | 6 | 16 | 5 | ~ 4 | ~ 12.5 | 6 | 10 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
14.84 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | - | 5 | M10 x 1 | 19 | 40 | 5 | 18 | 6 | ~ 5 | ~ 15 | 5 | 12 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
14.84 € | 1 | 3 Days | 10 | Standard knob | Screw-In | Presence | - | 5 | M10 x 1 | 19 | 40 | 8 | 18 | 6 | ~ 5 | ~ 18 | 8 | 12 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
17.68 € 12.38 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | - | 6 | M12 x 1,5 | 23 | 48 | 6 | 22 | 6 | ~ 6.5 | ~ 19 | 6 | 14 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
17.68 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | - | 6 | M12 x 1,5 | 23 | 48 | 9 | 22 | 6 | ~ 6 | ~ 25 | 9 | 14 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
23.94 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | - | 8 | M16 x 1,5 | 28 | 58 | 8 | 26 | 8 | ~ 8.5 | ~ 26 | 8 | 17 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
23.94 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | - | 8 | M16 x 1,5 | 28 | 58 | 12 | 26 | 8 | ~ 8.5 | ~ 28 | 12 | 17 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
23.94 € | 1 | 2 Days | 10 | Standard knob | Screw-In | Presence | - | 10 | M16 x 1,5 | 28 | 58 | 12 | 26 | 8 | ~ 9.5 | ~ 38 | 12 | 17 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
34.75 € | 1 |
Same day
Stock | 10 | Standard knob | Screw-In | Presence | - | 12 | M20 x 1,5 | 33 | 67 | 15 | 33 | 10 | ~ 11.5 | ~ 40 | 15 | 22 | Thermoplastic PA 6, black, dull | Stainless steel 1.4305, nickel-plated | |||
9.84 € | 1 | 4 Days | - | - | - | - | - | 4 | M8 x 1 | 16 | 35 | 4 | 16 | 5 | ~ 4.5 | ~ 12 | - | 10 | Thermoplast PA 6, red, dull | Steel, hardened | |||
9.84 € | 1 | 4 Days | - | - | - | - | - | 4 | M8 x 1 | 16 | 35 | 6 | 16 | 5 | ~ 4 | ~ 12.5 | - | 10 | Thermoplast PA 6, red, dull | Steel, hardened | |||
10.55 € | 1 | 4 Days | - | - | - | - | - | 5 | M10 x 1 | 19 | 40 | 5 | 18 | 6 | ~ 5 | ~ 15 | - | 12 | Thermoplast PA 6, red, dull | Steel, hardened | |||
10.55 € | 1 | 4 Days | - | - | - | - | - | 5 | M10 x 1 | 19 | 40 | 8 | 18 | 6 | ~ 5 | ~ 18 | - | 12 | Thermoplast PA 6, red, dull | Steel, hardened | |||
11.84 € | 1 | 4 Days | - | - | - | - | - | 6 | M12 x 1.5 | 23 | 48 | 6 | 22 | 6 | ~ 6.5 | ~ 19 | - | 14 | Thermoplast PA 6, red, dull | Steel, hardened | |||
11.84 € | 1 | 4 Days | - | - | - | - | - | 6 | M12 x 1.5 | 23 | 48 | 9 | 22 | 6 | ~ 6 | ~ 25 | - | 14 | Thermoplast PA 6, red, dull | Steel, hardened | |||
14.07 € | 1 | 4 Days | - | - | - | - | - | 8 | M16 x 1.5 | 28 | 58 | 8 | 26 | 8 | ~ 8.5 | ~ 26 | - | 17 | Thermoplast PA 6, red, dull | Steel, hardened | |||
14.07 € | 1 | 4 Days | - | - | - | - | - | 8 | M16 x 1.5 | 28 | 58 | 12 | 26 | 8 | ~ 8.5 | ~ 28 | - | 17 | Thermoplast PA 6, red, dull | Steel, hardened | |||
14.07 € | 1 | 4 Days | - | - | - | - | - | 10 | M16 x 1.5 | 28 | 58 | 12 | 26 | 8 | ~ 9.5 | ~ 38 | - | 17 | Thermoplast PA 6, red, dull | Steel, hardened | |||
20.10 € | 1 | 4 Days | - | - | - | - | - | 12 | M20 x 1.5 | 33 | 71.5 | 15 | 33 | 10 | ~ 11.5 | ~ 40 | - | 22 | Thermoplast PA 6, red, dull | Steel, hardened | |||
26.91 € | 1 | 4 Days | - | - | - | - | - | 16 | M24 x 2 | 33 | 78.5 | 20 | 38 | 12 | ~ 13 | ~ 54 | - | 27 | Thermoplast PA 6, red, dull | Steel, hardened | |||
13.31 € | 1 | 4 Days | - | - | - | - | - | 4 | M8 x 1 | 16 | 35 | 4 | 16 | 5 | ~ 4.5 | ~ 12 | - | 10 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
13.31 € | 1 | 4 Days | - | - | - | - | - | 4 | M8 x 1 | 16 | 35 | 6 | 16 | 5 | ~ 4 | ~ 12.5 | - | 10 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
15.00 € | 1 | 4 Days | - | - | - | - | - | 5 | M10 x 1 | 19 | 40 | 5 | 18 | 6 | ~ 5 | ~ 15 | - | 12 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
15.00 € | 1 | 4 Days | - | - | - | - | - | 5 | M10 x 1 | 19 | 40 | 8 | 18 | 6 | ~ 5 | ~ 18 | - | 12 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
17.88 € | 1 | 4 Days | - | - | - | - | - | 6 | M12 x 1.5 | 23 | 48 | 6 | 22 | 6 | ~ 6.5 | ~ 19 | - | 14 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
17.88 € | 1 | 4 Days | - | - | - | - | - | 6 | M12 x 1.5 | 23 | 48 | 9 | 22 | 6 | ~ 6 | ~ 25 | - | 14 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
24.21 € | 1 | 4 Days | - | - | - | - | - | 8 | M16 x 1.5 | 28 | 58 | 8 | 26 | 8 | ~ 8.5 | ~ 26 | - | 17 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
24.21 € | 1 | 4 Days | - | - | - | - | - | 8 | M16 x 1.5 | 28 | 58 | 12 | 26 | 8 | ~ 8.5 | ~ 28 | - | 17 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
24.21 € | 1 | 4 Days | - | - | - | - | - | 10 | M16 x 1.5 | 28 | 58 | 12 | 26 | 8 | ~ 9.5 | ~ 38 | - | 17 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
35.12 € | 1 | 4 Days | - | - | - | - | - | 12 | M20 x 1.5 | 33 | 71.5 | 15 | 33 | 10 | ~ 11.5 | ~ 40 | - | 22 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated | |||
51.17 € | 1 | 4 Days | - | - | - | - | - | 16 | M24 x 2 | 33 | 78.5 | 20 | 38 | 12 | ~ 13 | ~ 54 | - | 27 | Thermoplast PA 6, red, dull | Stainless steel 1.4305, nickel-plated |
Loading...
Basic information
| Temperature min.(°C) | -30 | Temperature max.(°C) | 80 | Conflict Minerals free | yes |
|---|---|---|---|---|---|
| REACH compliant | yes |
