    Index Plungers For Thin-Walled Pieces

    Index Plungers For Thin-Walled Pieces

    Part number:

    Still undefined. 9 possible part numbers found.
    Quantity:

    Product information



    Example

    Part number list

    Number of items
  • 1
    • Part number
    22120.0266
    22120.0267
    22120.0268
    22120.0269
    22120.0286
    22120.0287
    22120.0288
    22120.0289
    22120.0299
    Related

    Mounting Method

    Main Body Surface Treatment

    Tip O.D. d

    (Ø)

    d2

    (mm)

    d3

    (mm)

    l1

    (mm)

    l2

    (mm)

    l3

    (mm)

    l4

    (mm)

    F1

    (N)

    F2

    (N)

    s

    (mm)

    WS1

    (mm)

    WS2

    (mm)

    Knob

    Locking pin

    Temperature min.

    (°C)

    Temperature max.

    (°C)

    Conflict Minerals free

    REACH compliant

    		RoHS?Minimum order quantity

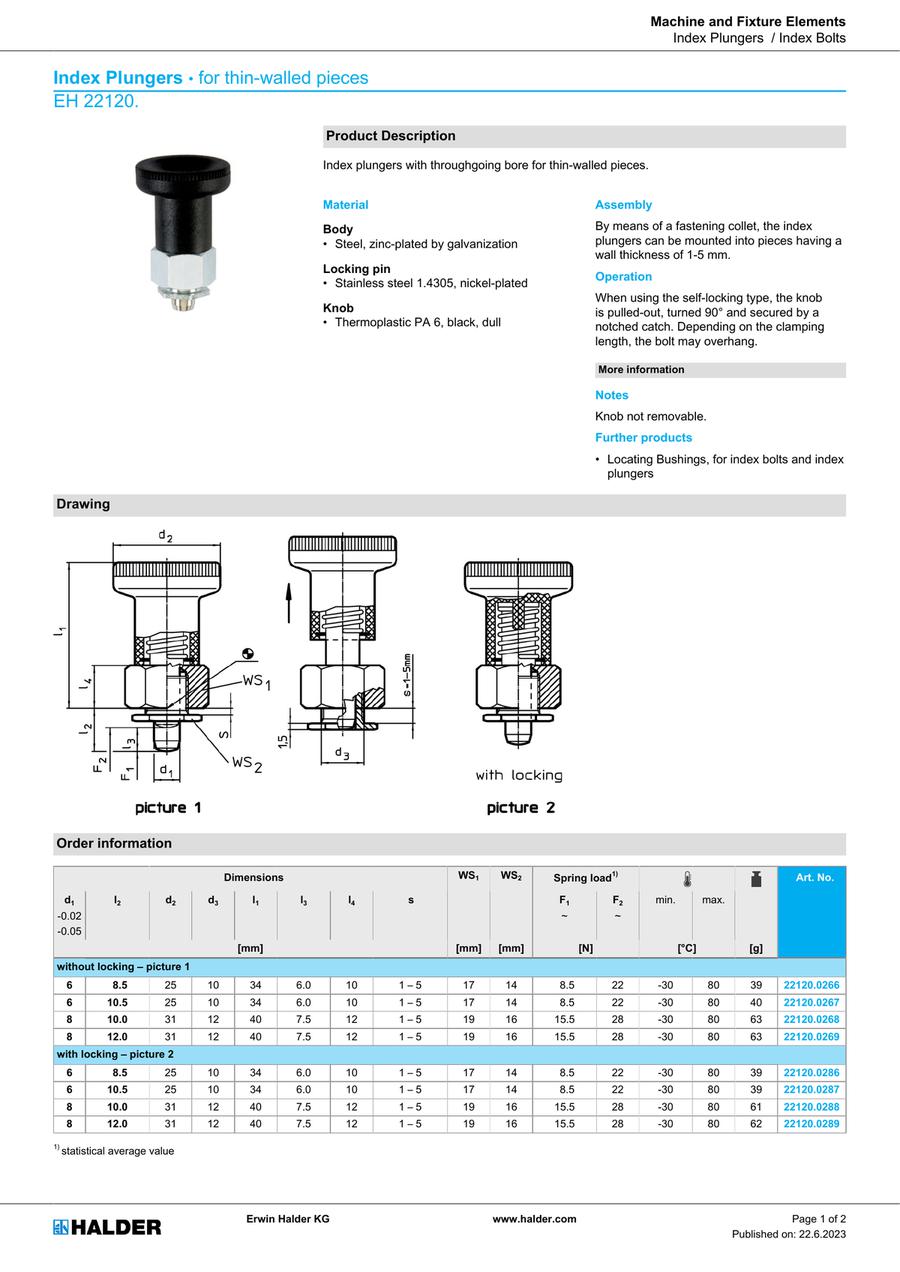

    Data sheet

    Screw-In
    Zinc Plating
    6
    25
    10
    34
    8.5
    6
    10
    ~ 8.5
    ~ 22
    1 - 5
    17
    14
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    6
    25
    10
    34
    10.5
    6
    10
    ~ 8.5
    ~ 22
    1 - 5
    17
    14
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    8
    31
    12
    40
    10
    7.5
    12
    ~ 15.5
    ~ 28
    1 - 5
    19
    16
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    8
    31
    12
    40
    12
    7.5
    12
    ~ 15.5
    ~ 28
    1 - 5
    19
    16
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    6
    25
    10
    34
    8.5
    6
    10
    ~ 8.5
    ~ 22
    1 - 5
    17
    14
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    6
    25
    10
    34
    10.5
    6
    10
    ~ 8.5
    ~ 22
    1 - 5
    17
    14
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    8
    31
    12
    40
    10
    7.5
    12
    ~ 15.5
    ~ 28
    1 - 5
    19
    16
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    Data sheet

    Screw-In
    Zinc Plating
    8
    31
    12
    40
    12
    7.5
    12
    ~ 15.5
    ~ 28
    1 - 5
    19
    16
    Thermoplastic PA 6, black, dull
    Stainless steel 1.4305, nickel-plated
    -30
    80
    yes
    yes
    10
    1 pieces

    -

    Others
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    -
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    19.60 €
    ( 23.32 € )
    4 working days
    19.84 €
    ( 23.61 € )
    4 working days
    21.51 €13.34 €
    ( 15.87 € )
    Stock item: 1 working dayAvailable for same-day shipping
    21.57 €
    ( 25.67 € )
    4 working days
    20.71 €
    ( 24.64 € )
    2 working days
    21.34 €13.23 €
    ( 15.74 € )
    Stock item: 1 working dayAvailable for same-day shipping
    22.51 €
    ( 26.79 € )
    4 working days
    22.90 €
    ( 27.25 € )
    4 working days
    4.08 €
    ( 4.86 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Features]
    · Index bolt for through holes in thin sheets.
    · A fixing sleeve can be used to mount sheets 1 to 5 mm thick
    · For types with locks, pulling the knob and rotating it 90 degrees locks the mechanism with the notch.
    · For this element, depending on the thickness of the opposing part, the pin may not fit fully into the notch, even if the knob is pulled all the way out.
    · Operating temperature range: from -30 to +80°C.
