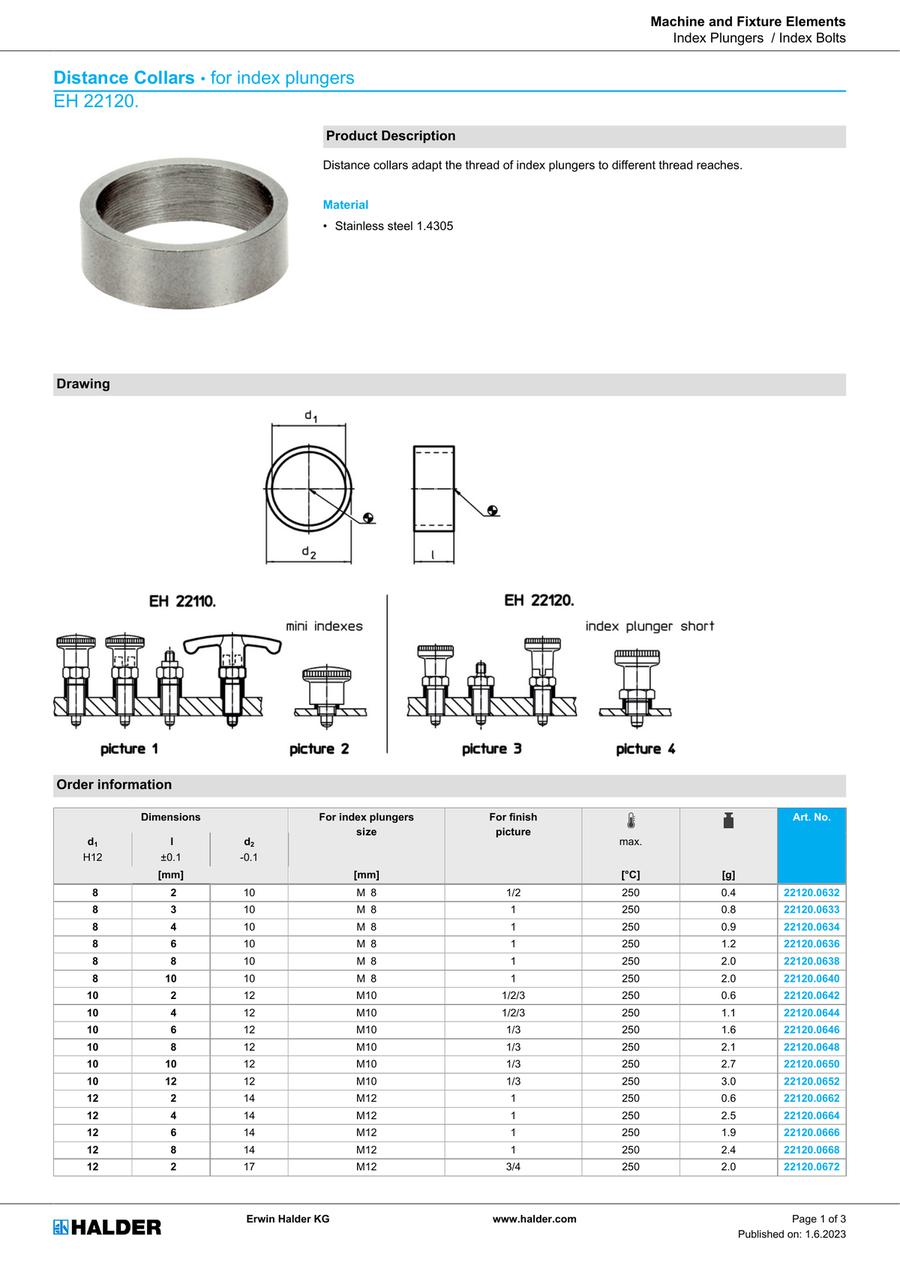

Distance Collar For Index Plungers
- Promotional pricing ends 30/11/2024
· Use this distance collar to adjust index bolt screw-in depth.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Example
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Mounting Method | Tip O.D. d (Ø) | d2 (mm) | l (mm) | For index plungers Size | |
|---|---|---|---|---|---|---|---|---|---|---|---|
0.56 € 0.39 € | 1 |
Same day
Stock | 10 | Others | 8 | 10 | 2 | M8 | |||
0.60 € 0.42 € | 1 |
Same day
Stock | 10 | Others | 8 | 10 | 3 | M8 | |||
0.65 € | 1 | 2 Days | 10 | Others | 8 | 10 | 4 | M8 | |||
0.72 € | 1 | 3 Days | 10 | Others | 8 | 10 | 6 | M8 | |||
0.86 € 0.60 € | 1 |
Same day
Stock | 10 | Others | 8 | 10 | 8 | M8 | |||
1.00 € | 1 | 2 Days | 10 | Others | 8 | 10 | 10 | M8 | |||
0.70 € 0.49 € | 1 |
Same day
Stock | 10 | Others | 10 | 12 | 2 | M10 | |||
0.78 € 0.55 € | 1 |
Same day
Stock | 10 | Others | 10 | 12 | 4 | M10 | |||
0.86 € | 1 | 3 Days | 10 | Others | 10 | 12 | 6 | M10 | |||
0.97 € 0.68 € | 1 |
Same day
Stock | 10 | Others | 10 | 12 | 8 | M10 | |||
1.04 € | 1 | 2 Days | 10 | Others | 10 | 12 | 10 | M10 | |||
1.15 € 0.81 € | 1 |
Same day
Stock | 10 | Others | 10 | 12 | 12 | M10 | |||
0.76 € | 1 | 2 Days | 10 | Others | 12 | 14 | 2 | M12 | |||
0.86 € | 1 | 2 Days | 10 | Others | 12 | 14 | 4 | M12 | |||
0.96 € 0.67 € | 1 |
Same day
Stock | 10 | Others | 12 | 14 | 6 | M12 | |||
1.05 € 0.74 € | 1 |
Same day
Stock | 10 | Others | 12 | 14 | 8 | M12 | |||
1.01 € | 1 | 2 Days | 10 | Others | 12 | 17 | 2 | M12 | |||
1.08 € | 1 | 2 Days | 10 | Others | 12 | 17 | 4 | M12 | |||
1.10 € 0.77 € | 1 |
Same day
Stock | 10 | Others | 12 | 17 | 5 | M12 | |||
1.11 € | 1 | 2 Days | 10 | Others | 16 | 17 | 4 | M16 | |||
1.17 € | 1 | 2 Days | 10 | Others | 16 | 17 | 6 | M16 | |||
1.21 € | 1 | 2 Days | 10 | Others | 16 | 17 | 8 | M16 | |||
1.47 € | 1 | 2 Days | 10 | Others | 16 | 17 | 10 | M16 | |||
1.69 € | 1 | 2 Days | 10 | Others | 16 | 17 | 12 | M16 | |||
1.24 € | 1 | 2 Days | 10 | Others | 16 | 19 | 2 | M16 | |||
1.33 € | 1 | 2 Days | 10 | Others | 16 | 19 | 4 | M16 | |||
1.40 € 0.98 € | 1 |
Same day
Stock | 10 | Others | 16 | 19 | 6 | M16 | |||
1.49 € | 1 | 2 Days | 10 | Others | 16 | 19 | 8 | M16 | |||
1.69 € | 1 | 2 Days | 10 | Others | 16 | 19 | 12 | M16 | |||
1.65 € | 1 | 3 Days | 10 | - | 20 | 22 | 6 | M20 | |||
1.76 € | 1 | 3 Days | 10 | - | 20 | 22 | 8 | M20 | |||
1.84 € | 1 | 3 Days | 10 | - | 20 | 22 | 10 | M20 | |||
1.95 € | 1 | 3 Days | 10 | - | 20 | 22 | 12 | M20 | |||
2.08 € | 1 | 3 Days | 10 | - | 20 | 22 | 14 | M20 | |||
2.17 € | 1 | 3 Days | 10 | - | 20 | 22 | 16 | M20 | |||
2.30 € | 1 | 3 Days | 10 | - | 20 | 22 | 18 | M20 |
Loading...
Basic information
| Temperature max.(°C) | 250 | Conflict Minerals free | yes | REACH compliant | yes |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Mounting Method
- Others
-
Tip O.D. d(Ø)
-
d2(mm)
- 10
- 12
- 14
- 17
- 19
- 22
-
l(mm)
-
For index plungers Size
- M8
- M10
- M12
- M16
- M20
-
Type
- 22120
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- Same day
- 2 Days or Less
- 3 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
