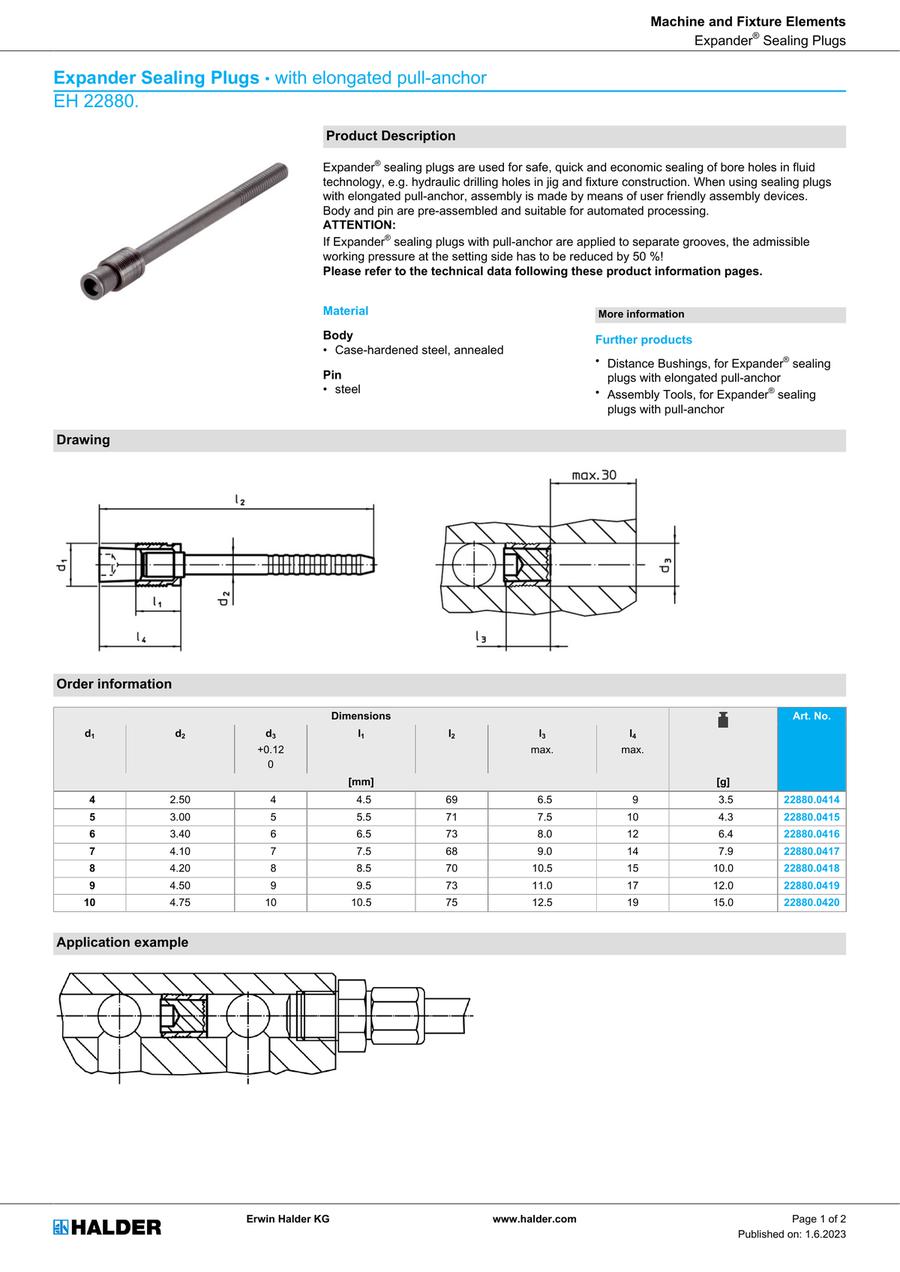

Tie rods with Expander® sealing plugs / 22880
Part number:
possible part numbers found.Product information
Example
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
2.48 € ( 2.95 € ) | 4 working days |
2.73 € ( 3.25 € ) | 2 working days |
2.76 €1.71 € ( 2.03 € ) | Stock item: 1 working dayAvailable for same-day shipping |
3.62 € ( 4.31 € ) | 4 working days |
4.06 €2.52 € ( 3.00 € ) | Stock item: 1 working dayAvailable for same-day shipping |
4.55 €2.82 € ( 3.36 € ) | Stock item: 1 working dayAvailable for same-day shipping |
5.36 € ( 6.38 € ) | 4 working days |
More Information
Basic information
Expander® sealing plugs are used for safe, quick and economic sealing of bore holes in fluid technology, e.g. hydraulic drilling holes in jig and fixture construction. When using sealing plugs with elongated pull-anchor, assembly is made by means of user friendly assembly devices.
Body and pin are pre-assembled and suitable for automated processing.
ATTENTION:
If Expander® sealing plugs with pull-anchor are applied to separate grooves, the admissible working pressure at the setting side has to be reduced by 50 %!
Please refer to the technical data following these product information pages.
