MS5H / Miniature Fitting / SUS316 - Hose Elbow MS-5HLH-4, 6 / Stainless Steel EN 1.4401 Equiv.
Caution
- Refer to the catalog for product specifications.
- Product images may be representative images. Refer to the catalog for details.
Part number:
possible part numbers found.Product information
Hose Elbow MS-5HLH-4, -6 Specifications

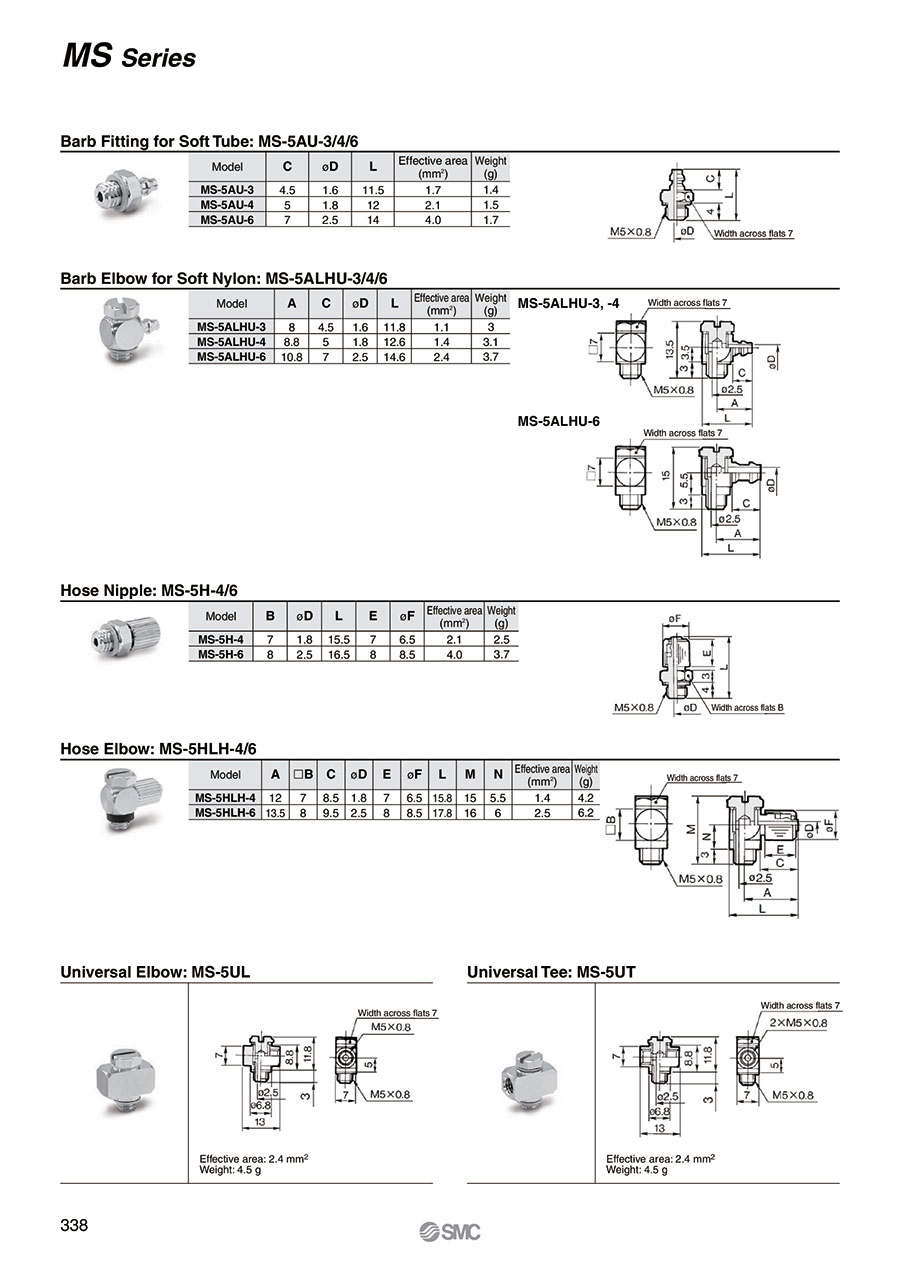

Hose Elbow MS-5HLH-4, -6 outline drawing
| Model | A | □B | C | øD | E | øF | L | M | N | Effective area mm2 | Weight g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MS-5HLH-4 | 12 | 7 | 8.5 | 1.8 | 7 | 6.5 | 15.8 | 15 | 5.5 | 1.4 | 4.2 |
| MS-5HLH-6 | 13.5 | 8 | 9.5 | 2.5 | 8 | 8.5 | 17.8 | 16 | 6 | 2.5 | 6.2 |
Mini Fitting SUS316 MS Series Common Specifications (Reference)
- For use in corrosive environments
- Made of Stainless steel 316.
- Compact piping space: Tube has a large retaining force. Hose nipple assures easy installation and removal.
- Wide variety of types available: Possible for special tubing in the same direction. Accepts many types of plastic tubing
- Hose nipple / hose elbow: Accepts nylon, soft nylon, and polyurethane tubing.
Structure
Mini Fitting SUS316 MS series structural drawing
Specifications
| Applicable tubing material | Nylon | Soft nylon Note 1: | Polyurethane | PFA Note 2: | FEP Note 3: | Modified PTFE Note 4: | |
|---|---|---|---|---|---|---|---|
| Applicable tubing O.D. / I.D. | ø4/ø2.5 ø6/ø4 | ø3.18/ø2.18 | ø4/ø2.5 ø6/ø4 | ø3.18/ø2 ø4/ø2.5 ø6/ø4 | ø6/ø4 | ø4/ø2.5 ø6/ø4 | ø4/ø2.5 ø6/ø4 |
| Usable fluids | Air, water Note 5: | ||||||
| Maximum operating pressure (at 20°C) | 1.5 MPa | 1 MPa | 0.8 MPa | 1 MPa | 1.5 MPa | 1.4 MPa | |
| Ambient and fluid temperature | -5 to 60°C, For water: 0 to 40°C (no freezing) | ||||||
| Connection size | M5, R1/8 | M5 | |||||
| Thread | JIS B0205 (metric fine thread) JIS B0203 (taper thread for piping) | JIS B0205, Class 2 (metric fine thread) | |||||
Note 1) For soft nylon tube, water cannot be used.
For Note 2, Note 3 and Note 4, use only hose nipple types.
Note 5: Water cannot be used for barb fittings, barb elbows or barb tees.
Main Component Materials
| Materials | Body | Stainless steel 316 |
|---|---|---|
| Gasket | PVC, Nylon 66, GF30% |
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
14.00 € ( 16.66 € ) | Stock item: 1 working dayAvailable for same-day shipping |
16.71 € ( 19.88 € ) | 6 working days |
14.74 € ( 17.54 € ) | 4 working days |
15.53 € ( 18.48 € ) | 26 working days |
18.90 € ( 22.49 € ) | 26 working days |
More Information
Basic information
A miniature tube fitting from SMC Corporation.
[Features]
· Compact piping space.
· Rotates 360° around the stud as an axis, allowing it to be fixed at any angle.
· Can be used in corrosive environments.
Caution
- Refer to the catalog for product specifications.
- Product images may be representative images. Refer to the catalog for details.
