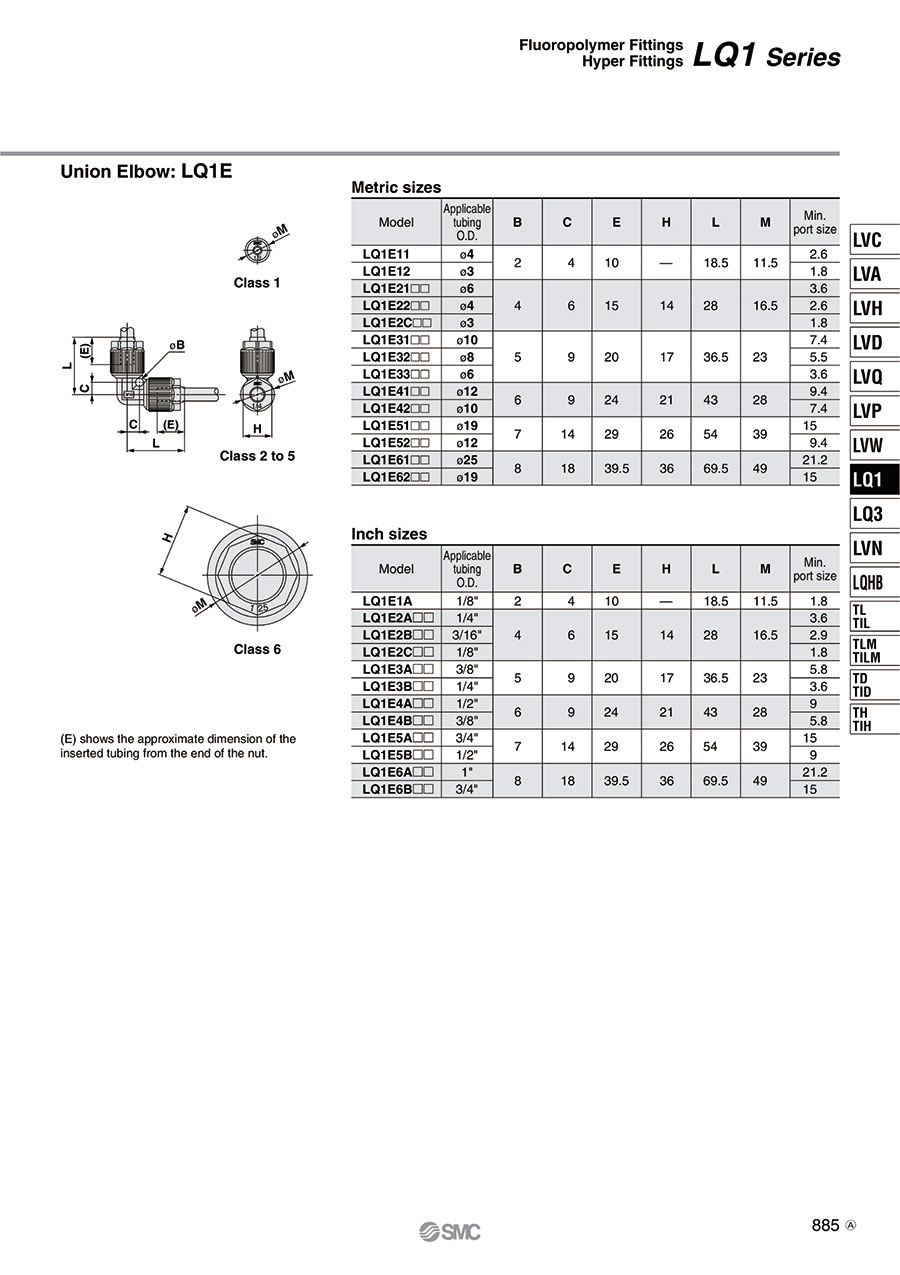

LQ1E, High Purity Fluoropolymer Fitting, Tubing Connection, Union Elbow

LQ1E, High Purity Fluoropolymer Fitting, Tubing Connection, Union Elbow
  • Promotional pricing ends 30/11/2024

SMC

SMC

A fluoropolymer fitting with a tube holding section on the nut that utilizes a 2-stage system for securely holding tubes in place.
[Features]
· Quadruple-sealing construction (PAT.) provides a strong sealing effect and highly reliable performance against the leakage of liquids.
· Offers outstanding flow-through characteristics with minimized liquid pooling.
· The seal lock on the nut helps prevent loosening.
· The trapezoidal thread allows for the application of high levels of torque.
· Shows strong resistance to tube bending and deformation. The tube support allows it to withstand use with lateral loads.
· Simply screw-in as far as the ends of the fitting to tighten the nuts. No need for gauge management for positioning.
· For use at 200°C. The trapezoidal thread prevents the angled insertion of nuts.
· The reducer system allows you to switch tube sizes without having to change the body itself.

(i)Remark

  • Refer to the catalog for product specifications.
  • Product images may be representative images. Refer to the catalog for details.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
LQ1E2C
LQ1E2C2A
LQ1E11
LQ1E12
LQ1E21
LQ1E21-1
LQ1E22
LQ1E22-1
LQ1E31
LQ1E31-1
LQ1E32
LQ1E32-1
LQ1E33
LQ1E41
LQ1E41-1
LQ1E42
LQ1E51
LQ1E52
LQ1E61
LQ1E62
LQ1E2122
LQ1E212A
LQ1E3132
LQ1E3133
LQ1E3231
LQ1E3331
LQ1E3332
LQ1E4142
LQ1E4241
LQ1E5251
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Connection Type Pipe-to-Pipe Same Diameter Connection Type Pipe-to-Pipe Reducer Connection Type Compatible Tube Outer Diameter (mm) D (D1) Compatible Tube Outer Diameter (mm) D2 Compatible Tube Outer Diameter (inch) D2 Tube Size Standard Packaging Size of Body

27.60 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-3---Clean Packaging Class M3.5 Equivalent2

27.60 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow3-1/4-Clean Packaging Class M3.5 Equivalent2

19.45 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-4--MetricClean Packaging Class M3.5 Equivalent1

19.47 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-3---Clean Packaging Class M3.5 Equivalent1

27.53 €

1 4 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-6--MetricClean Packaging Class M3.5 Equivalent2

27.02 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-6---Standard Packaging Class M5.5 Equivalent2

27.60 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-4---Clean Packaging Class M3.5 Equivalent2

27.02 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-4---Standard Packaging Class M5.5 Equivalent2

39.68 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-10--MetricClean Packaging Class M3.5 Equivalent3

39.27 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-10---Standard Packaging Class M5.5 Equivalent3

39.68 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-8--MetricClean Packaging Class M3.5 Equivalent3

39.02 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-8---Standard Packaging Class M5.5 Equivalent3

39.68 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-6---Clean Packaging Class M3.5 Equivalent3

51.16 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-12--MetricClean Packaging Class M3.5 Equivalent4

50.47 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-12---Standard Packaging Class M5.5 Equivalent4

51.16 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-10---Clean Packaging Class M3.5 Equivalent4

86.94 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-19--MetricClean Packaging Class M3.5 Equivalent5

87.02 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-12---Clean Packaging Class M3.5 Equivalent5

170.55 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-25--MetricClean Packaging Class M3.5 Equivalent6

170.55 €

1 26 Days Pipe⇔Pipe, same diameters connectionUnion Elbow-19---Clean Packaging Class M3.5 Equivalent6

27.60 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow64--Clean Packaging Class M3.5 Equivalent2

27.60 €

19.32 €

1 Same day

Stock

Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow6-1/4-Clean Packaging Class M3.5 Equivalent2

39.66 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow108-MetricClean Packaging Class M3.5 Equivalent3

39.68 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow106--Clean Packaging Class M3.5 Equivalent3

39.66 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow810--Clean Packaging Class M3.5 Equivalent3

39.66 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow610--Clean Packaging Class M3.5 Equivalent3

39.66 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow68--Clean Packaging Class M3.5 Equivalent3

51.16 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow1210--Clean Packaging Class M3.5 Equivalent4

51.16 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow1012--Clean Packaging Class M3.5 Equivalent4

87.02 €

1 26 Days Pipe⇔Pipe, different diameters connection-[Reducing Union Elbow] Reducing Union Elbow1219--Clean Packaging Class M3.5 Equivalent5

Loading...

  1. 1

Basic information

Type Fitting Body Main Body Material PFA Maximum Operating Temperature(℃) 200
