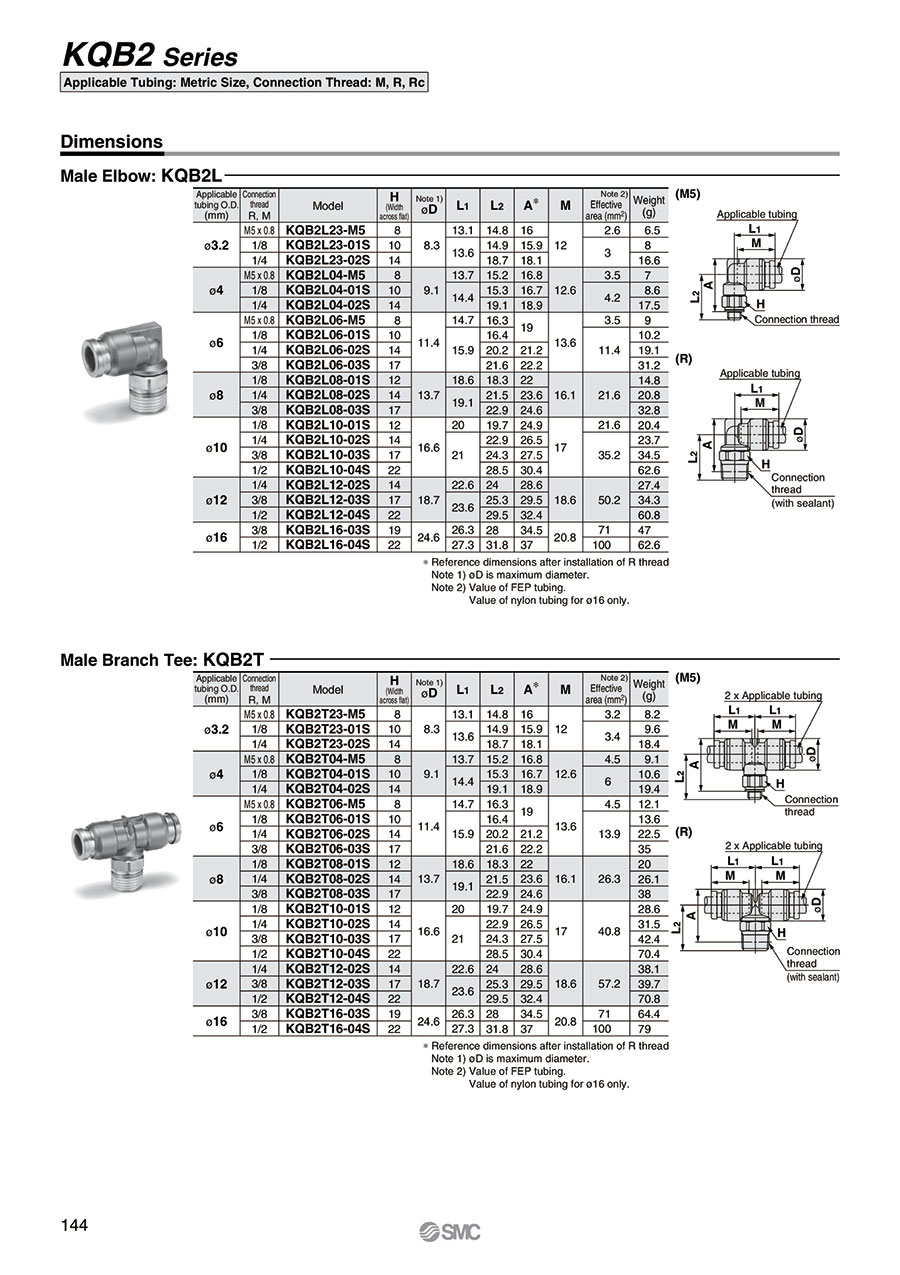

Male Branch Tee KQB2T Metal One-Touch Fitting
[Features]
· Compact and lightweight.
· Grease-free.
· Fluid temperature: -5 to 150°C.
· Brass parts: Electroless nickel plated.
[Applications]
· Use to branch line from female thread in both 90° directions.
(i)Remark
- Product images may be representative images. Refer to the catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Compatible Tube Outer Diameter 1 (mm) | Connection Type | Connection screw | |
|---|---|---|---|---|---|---|---|
10.44 € | 1 | 26 Days | - | NPT | 1/8 | ||
9.31 € | 1 | 26 Days | - | UNF | 10-32 | ||
9.68 € | 1 | 26 Days | - | NPT | 1/8 | ||
9.68 € | 1 | 26 Days | 4 | R | 1/8 | ||
10.05 € | 1 | 26 Days | 4 | R | 1/4 | ||
10.55 € | 1 | 4 Days | 4 | G | 1/8 | ||
11.32 € | 1 | 4 Days | 4 | G | 1/4 | ||
9.18 € | 1 | 4 Days | 4 | M | 5×0.8 | ||
9.68 € | 1 | 4 Days | 6 | R | 1/8 | ||
10.05 € | 1 | 4 Days | 6 | R | 1/4 | ||
10.66 € | 1 | 26 Days | 6 | R | 3/8 | ||
10.55 € | 1 | 4 Days | 6 | G | 1/8 | ||
11.32 € | 1 | 4 Days | 6 | G | 1/4 | ||
12.03 € | 1 | 4 Days | 6 | G | 3/8 | ||
12.32 € | 1 | 4 Days | 6 | M | 5×0.8 | ||
11.52 € | 1 | 26 Days | - | NPT | 1/8 | ||
11.92 € | 1 | 26 Days | - | NPT | 1/4 | ||
12.19 € | 1 | 26 Days | - | NPT | 3/8 | ||
16.24 € | 1 | 4 Days | 8 | R | 1/8 | ||
16.47 € | 1 | 4 Days | 8 | R | 1/4 | ||
17.06 € | 1 | 26 Days | 8 | R | 3/8 | ||
16.97 € | 1 | 4 Days | 8 | G | 1/8 | ||
17.74 € | 1 | 4 Days | 8 | G | 1/4 | ||
18.56 € | 1 | 4 Days | 8 | G | 3/8 | ||
16.45 € | 1 | 26 Days | - | NPT | 1/8 | ||
16.56 € | 1 | 26 Days | - | NPT | 1/4 | ||
17.06 € | 1 | 26 Days | - | NPT | 3/8 | ||
24.74 € | 1 | 26 Days | 10 | R | 1/8 | ||
24.74 € | 1 | 4 Days | 10 | R | 1/4 | ||
24.74 € | 1 | 26 Days | 10 | R | 3/8 | ||
24.74 € | 1 | 26 Days | 10 | R | 1/2 | ||
25.65 € | 1 | 4 Days | 10 | G | 1/8 | ||
25.65 € | 1 | 4 Days | 10 | G | 1/4 | ||
25.65 € | 1 | 4 Days | 10 | G | 3/8 | ||
25.65 € | 1 | 4 Days | 10 | G | 1/2 | ||
27.10 € | 1 | 26 Days | - | NPT | 1/8 | ||
24.74 € | 1 | 26 Days | - | NPT | 1/4 | ||
27.10 € | 1 | 26 Days | - | NPT | 3/8 | ||
27.10 € | 1 | 26 Days | - | NPT | 1/2 | ||
28.23 € | 1 | 26 Days | - | R | 1/4 | ||
28.23 € | 1 | 26 Days | - | R | 3/8 | ||
28.23 € | 1 | 26 Days | - | R | 1/2 | ||
29.50 € | 1 | 26 Days | - | G | 1/4 | ||
29.50 € | 1 | 7 Days | - | G | 3/8 | ||
29.50 € | 1 | 22 Days | - | G | 1/2 | ||
32.48 € | 1 | 26 Days | - | NPT | 1/4 | ||
32.48 € | 1 | 26 Days | - | NPT | 3/8 | ||
32.48 € | 1 | 26 Days | - | NPT | 1/2 | ||
41.44 € | 1 | 26 Days | - | R | 3/8 | ||
43.44 € | 1 | 26 Days | - | R | 1/2 | ||
42.82 € | 1 | 4 Days | - | G | 3/8 | ||
45.90 € | 1 | 4 Days | - | G | 1/2 | ||
10.44 € | 1 | 26 Days | - | R | 1/8 | ||
10.82 € | 1 | 26 Days | - | R | 1/4 | ||
12.48 € | 1 | 4 Days | - | M | 5×0.8 |
Loading...
Basic information
| Type | Single-Action / Screw | Fitting Type | Screw Mount Branch | Applicable Fluid | Water / Air |
|---|---|---|---|---|---|
| Main Body Material | Others | Application | Standard/Mini | Thread Material | EN CW614N Equiv. (Electroless nickel plating) |
| Screw Mounting, Branch | Double Port Tee Union | Number of Connection Tubes(pc.) | 2 |
Configure
Basic Attributes
-
Compatible Tube Outer Diameter 1(mm)
-
Connection Type
- G
- M
- NPT
- R
- UNF
-
Connection screw
- 1/2
- 1/4
- 1/8
- 3/8
- 5×0.8
- 10-32
-
Type
- KQB2T
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
- 7 Days or Less
- 22 Days or Less
- 26 Days or Less
Optional Attributes
- Product images may be representative images. Refer to the catalog for shape details.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
