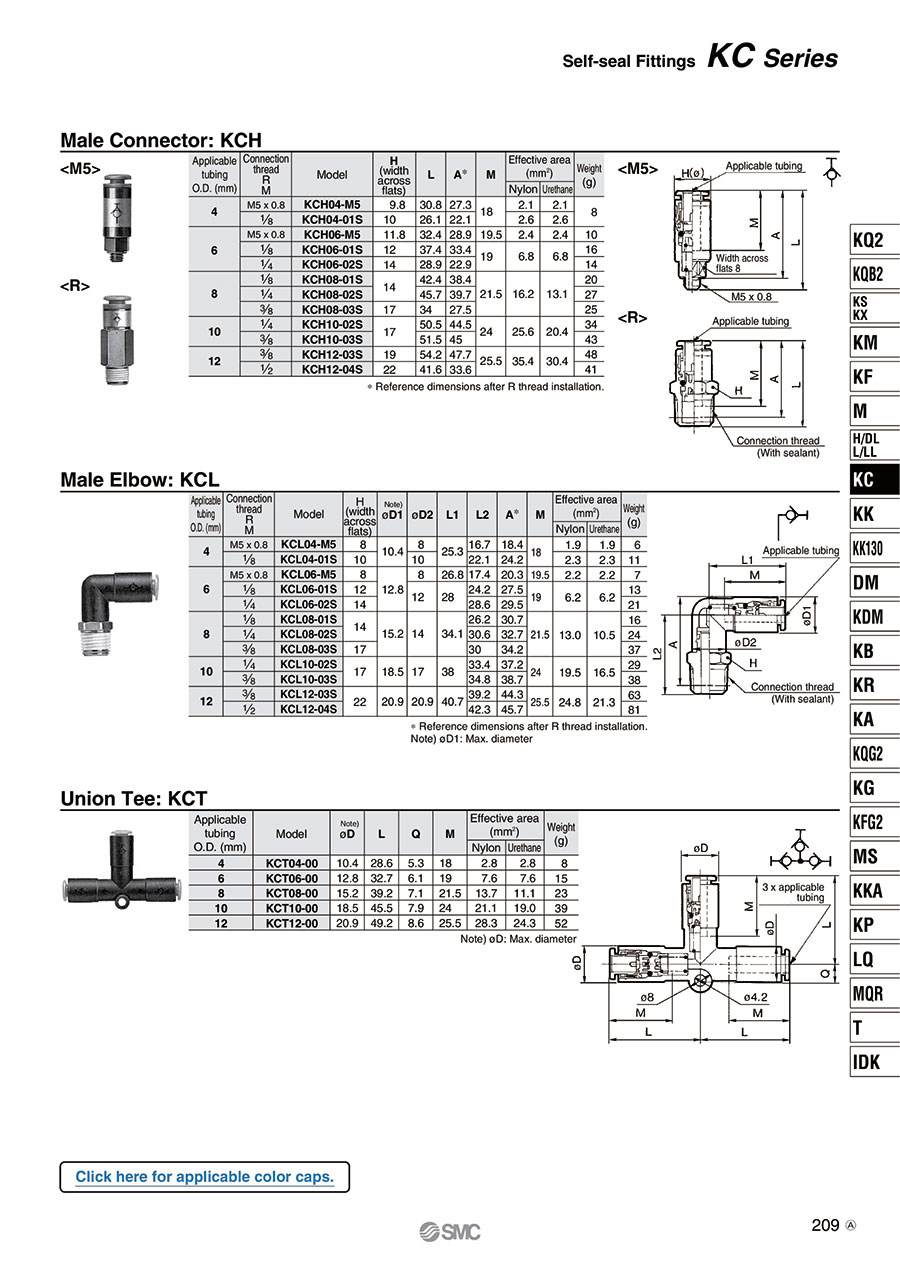

KCL, Tube Coupler, Self Seal Fittings, Male Elbow
[Features]
· Streamlines and reduces labor for piping work.
· One-touch fitting that stops air flow when detached. (Built-in self-sealing mechanism)
· Specification not acceptable for copper (electroless nickel plating).
· Sealant is standard.
[Applications]
· Use for piping at right angles from the female thread part.
(i)Remark
- Product images may be representative images. Refer to the catalog for details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| KCL04-01S |
| KCL04-M5 |
| KCL06-01S |
| KCL06-02S |
| KCL06-M5 |
| KCL08-01S |
| KCL08-02S |
| KCL08-03S |
| KCL10-02S |
| KCL10-03S |
| KCL12-03S |
| KCL12-04S |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Compatible Tube Outer Diameter 1 (mm) | Connection Type | Connection screw | |
|---|---|---|---|---|---|---|---|
8.42 € | 10 | 4 Days | 4 | R | 1/8 | ||
8.65 € | 10 | 4 Days | 4 | M | 5×0.8 | ||
8.65 € | 10 | 4 Days | 6 | R | 1/8 | ||
9.05 € | 10 | 4 Days | 6 | R | 1/4 | ||
8.76 € | 10 | 4 Days | 6 | M | 5×0.8 | ||
9.39 € | 10 | 4 Days | 8 | R | 1/8 | ||
9.39 € | 10 | 4 Days | 8 | R | 1/4 | ||
9.39 € | 10 | 4 Days | 8 | R | 3/8 | ||
10.24 € | 10 | 4 Days | 10 | R | 1/4 | ||
10.24 € | 10 | 4 Days | 10 | R | 3/8 | ||
13.77 € | 10 | 26 Days | - | R | 3/8 | ||
13.77 € | 10 | 4 Days | - | R | 1/2 |
Loading...
Basic information
| Type | Single-Action / Screw | Fitting Type | Screw Mount Direction | Applicable Fluid | Air |
|---|---|---|---|---|---|
| Main Body Material | PP | Application | Standard/Mini | Packing, Material of O-Ring | EPDM (Fluorine Coating) |
| Screw Mounting, Direction | Elbow | Elbows | Elbow Union | Color | Black |
| Release button color | Blue |
Configure
- Product images may be representative images. Refer to the catalog for details.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
