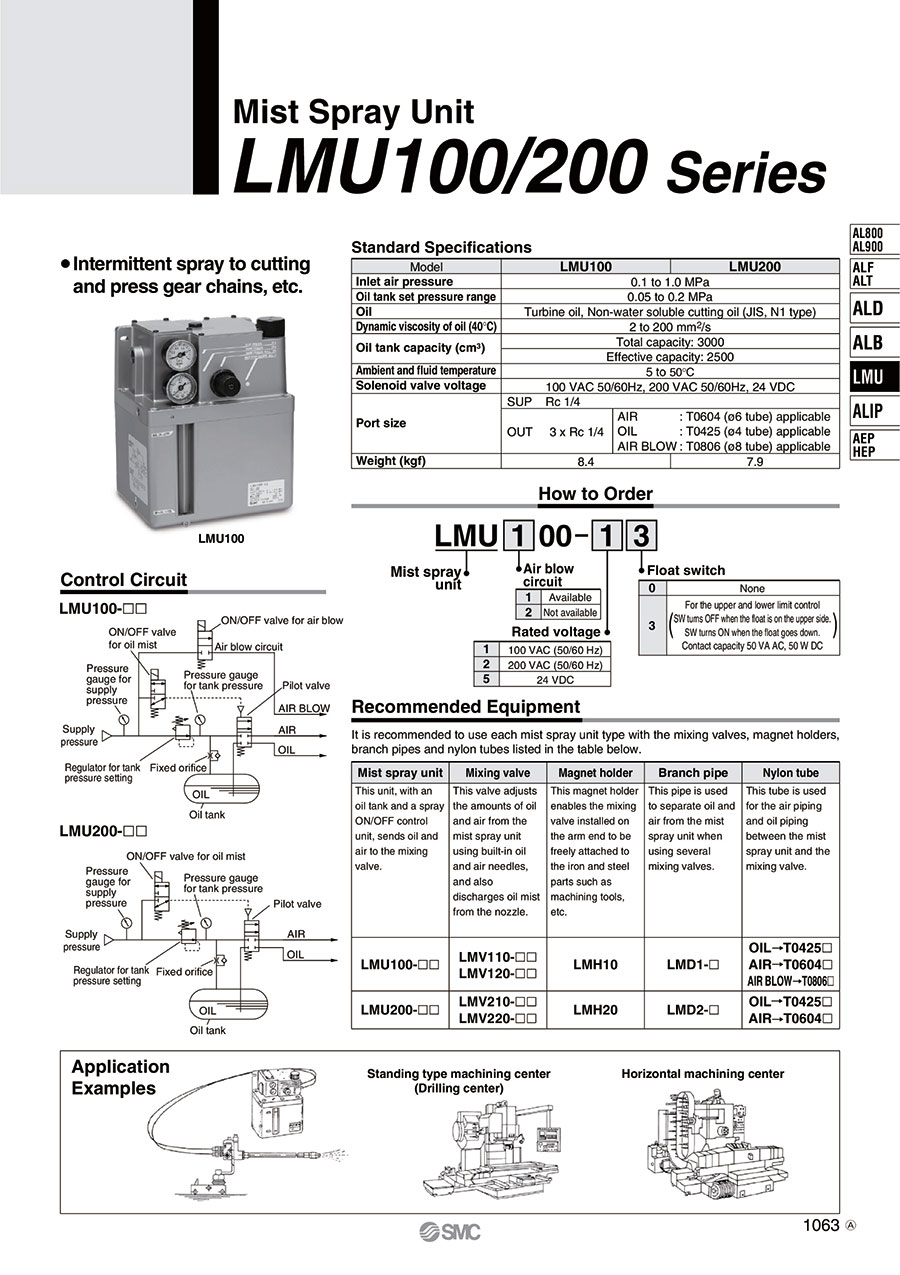

Mist Spray Unit LMU100 / 200 Series (LMV / LMH / LMD)
[Features]
· Intermittent spray for cutting, press gear chains, etc.
· Mist spray unit: Designed so that oil and air can be sent to the mixing valve.
· Mixing valve: Oil and air volumes sent by the mist spray unit can be adjusted with the oil and air needles.
· The mixing valve also discharges oil mist from the nozzle.
· Magnet holder: Allows the mixing valve to be freely attached to iron and steel parts on machine tools, etc.
[Applications]
· Use for standing type machining centers (drilling centers) and horizontal machining centers.
(i)Remark
- Refer to the catalog for details on product specifications.
- The products shown in the image are representative.
