    Cam action indexing plungers, Stainless Steel

    Cam action indexing plungers, Stainless Steel

    Part number:

    Still undefined. 84 possible part numbers found.
    Quantity:

    Product information

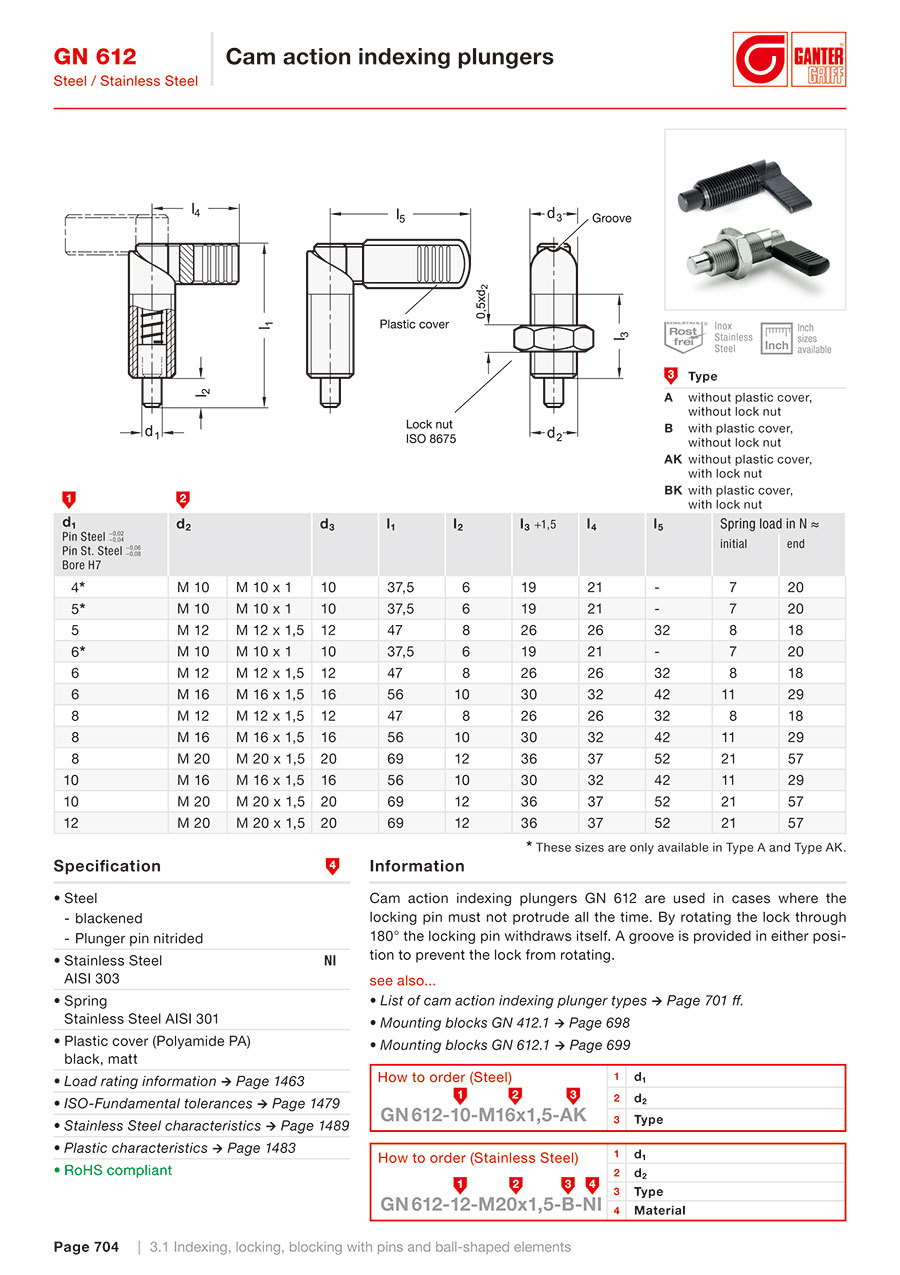

    GN 612 / Stainless Steel / Cam Action Indexing Plungers

    Information


    Cam action indexing plungers GN 612 are used in cases where the locking pin must not protrude all the time. By rotating the lock through 180° the locking pin withdraws itself. A groove is provided in either position to prevent the lock from rotating.

    see also...
    • List of cam action indexing plunger types
    • Mounting blocks GN 412.1
    • Mounting blocks GN 612.1

    How to order

    How to order (Stainless Steel)
    		1d1
    2d2
    3Type
    4Material

    Specification

    Stainless Steel AISI 301
    • Plastic cover (Polyamide PA)
     black, matt
    • Load rating information
    • ISO-Fundamental tolerances
    • Stainless Steel characteristics
    • Plastic characteristics
    • RoHS compliant     NI







    Dimensions


    d1
    Pin Steel−0.02
    −0.04
    Pin St. Steel−0.06
    −0.08
    Bore H7
    		d2 d3l1l2l3 +1,5l4l5Spring load in N ≈
            initialend
    4*M 10M 10 x 11037.561921-720
    5*M 10M 10 x 11037.561921-720
    5M 12M 12 x 1,512478262632818
    6*M 10M 10 x 11037.561921-720
    6M 12M 12 x 1,512478262632818
    6M 16M 16 x 1,51656103032421129
    8M 12M 12 x 1,512478262632818
    8M 16M 16 x 1,51656103032421129
    8M 20M 20 x 1,52069123637522157
    10M 16M 16 x 1,51656103032421129
    10M 20M 20 x 1,52069123637522157
    12M 20M 20 x 1,52069123637522157
    * These sizes are only available in Type A and Type AK.
