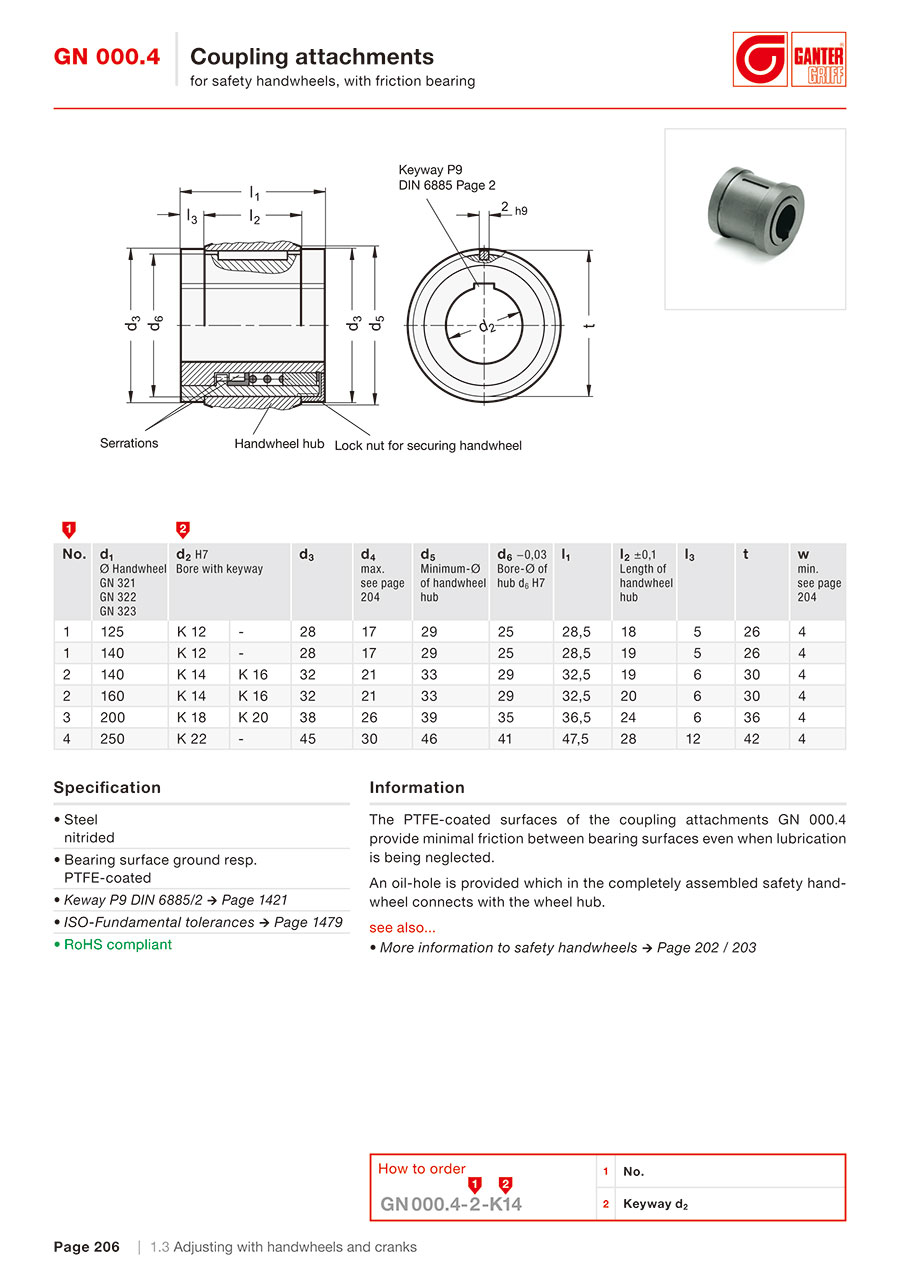

Clamping sets for handwheels / GN 000.4 / GANTER
- Volume Discount
The PTFE-coated surfaces of the coupling attachments GN 000.4 provide minimal friction between bearing surfaces even when lubrication is being neglected.
An oil-hole is provided which in the completely assembled safety handwheel connects with the wheel hub.
An oil-hole is provided which in the completely assembled safety handwheel connects with the wheel hub.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 000.4-1-K12 |
| 000.4-2-K14 |
| 000.4-2-K16 |
| 000.4-3-K18 |
| 000.4-3-K20 |
| 000.4-4-K22 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Bore d2 (mm) | Size No. | |
|---|---|---|---|---|---|---|
74.86 € | 1 | Available | 7 Days | K 12 | 1 | |
79.66 € | 1 | Available | 7 Days | K 14 | 2 | |
79.66 € | 1 | Available | 7 Days | K 16 | 2 | |
95.68 € | 1 | Available | 7 Days | K 18 | 3 | |
95.68 € | 1 | Available | 7 Days | K 20 | 3 | |
108.18 € | 1 | Available | 7 Days | K 22 | 4 |
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
