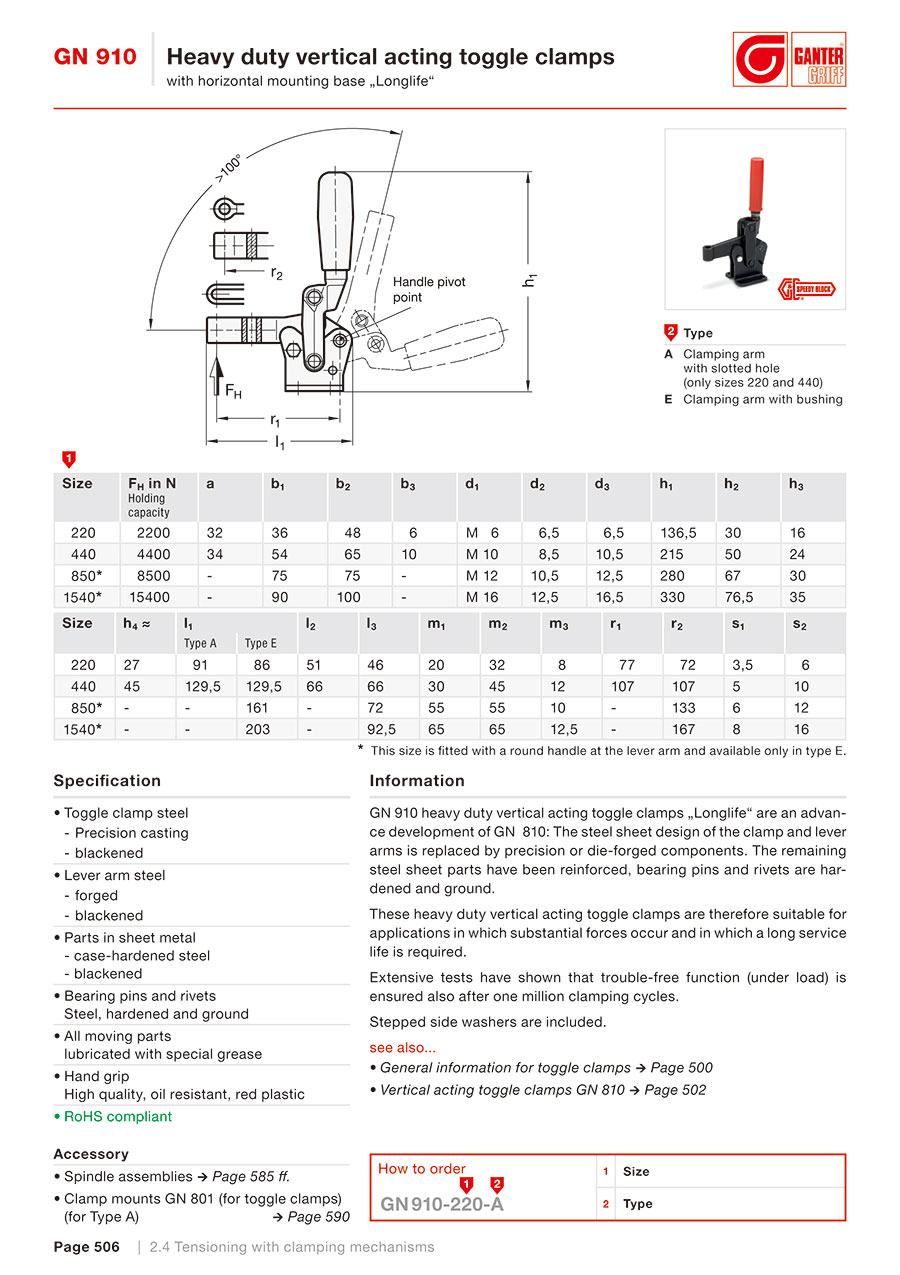

Heavy duty vertical acting toggle clamps, with horizontal mounting base, „Longli

GN 910 heavy duty vertical acting toggle clamps can accommodate an application-specific screw.
The steel sheet metal design of the clamp and lever arms is replaced by precision casting or die-forged components. The remaining steel sheet parts have been reinforced, and bearing pins and rivets are hardened and ground.
These vertical clamps are therefore suitable for applications in which substantial forces occur and in which a long service life is required.
During extensive testing, with trouble free function and under load, the clamp has withstood over one million opening and closing cycles.
Stepped side washers are included.
