Configure

Housings for angular / T-gears, Aluminium

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items

Bore d

Diameter s

Type

Minimum order quantity
B 18
28
T, Housing for T-gears
1 pieces
B 18
28
W, Housing for angular gears
1 pieces
B 30
40
T, Housing for T-gears
1 pieces
B 30
40
W, Housing for angular gears
1 pieces
B 40
50
T, Housing for T-gears
1 pieces
B 40
50
W, Housing for angular gears
1 pieces
B 50
60
T, Housing for T-gears
1 pieces
B 50
60
W, Housing for angular gears
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
64.10 €
( 76.28 € )
7 working days
58.52 €
( 69.64 € )
7 working days
71.16 €
( 84.68 € )
7 working days
66.08 €
( 78.64 € )
7 working days
90.16 €
( 107.29 € )
7 working days
76.88 €
( 91.49 € )
7 working days
103.86 €
( 123.59 € )
7 working days
86.88 €
( 103.39 € )
7 working days

More Information

Basic information

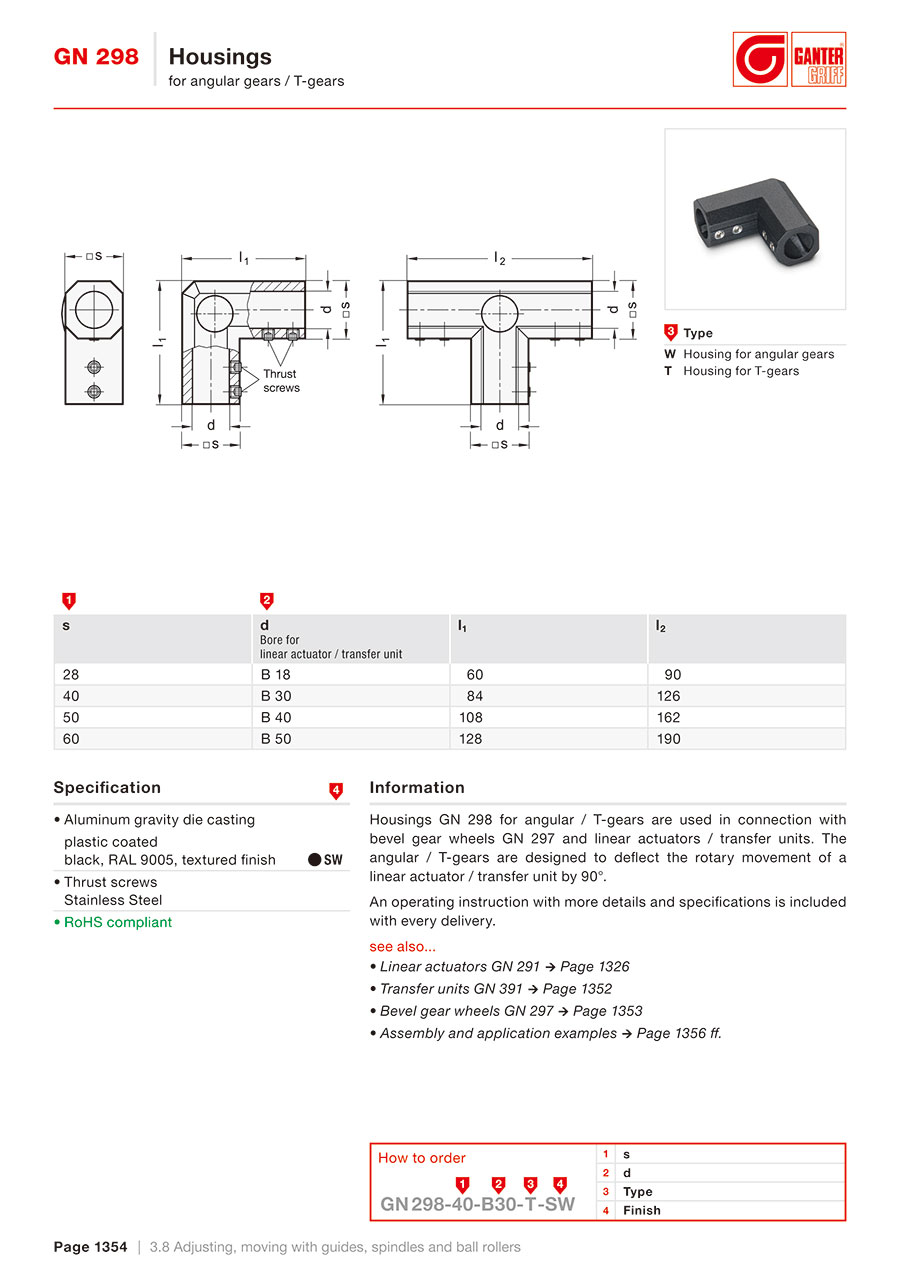

Housings GN 298 for angular / T-gears are used in connection with bevel gear wheels GN 297 and linear actuators / transfer units. The angular / T-gears are designed to deflect the rotary movement of a linear actuator / transfer unit by 90°.
An operating instruction with more details and specifications is included with every delivery.
