GANTER

Indexing plungers, with rest position, Plunger Stainless Steel

Indexing plungers, with rest position, Plunger Stainless Steel

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    608.6-6-6
    608.6-6-14
    608.6-8-8
    608.6-8-18

    Bolt diameter d1

    (Ø)

    Length l1

    		Minimum order quantity
    6
    6
    1 pieces
    6
    14
    1 pieces
    8
    8
    1 pieces
    8
    18
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    11.80 €
    ( 14.04 € )
    7 working days
    12.58 €
    ( 14.97 € )
    7 working days
    14.56 €
    ( 17.33 € )
    7 working days
    14.36 €
    ( 17.09 € )
    7 working days
  • 1

    • More Information

    Basic information

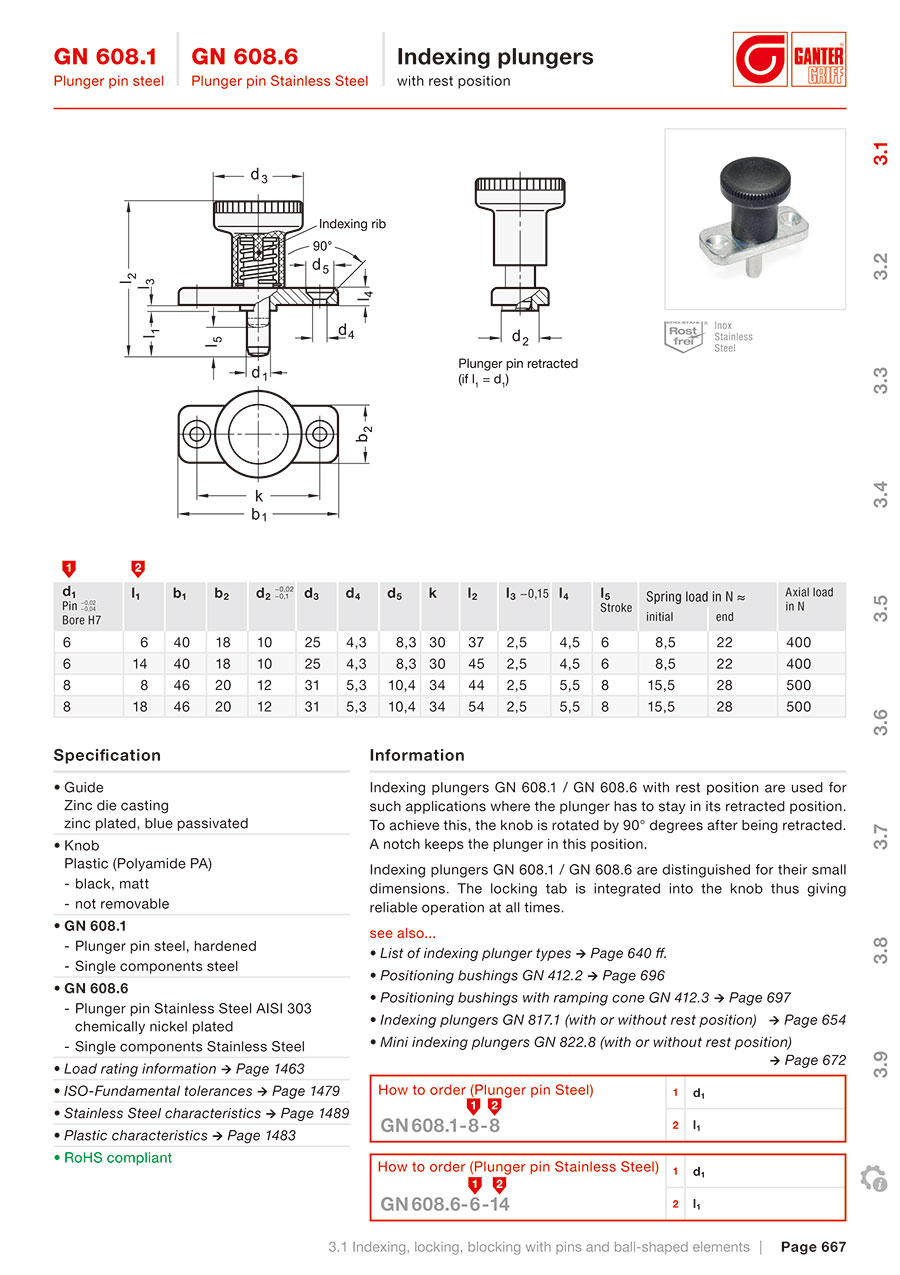

    Indexing plungers GN 608.6 with rest position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
    Indexing plungers GN 608.6 are distinguished for their small dimensions. The locking tab is integrated into the knob thus giving reliable operation at all times.
