Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

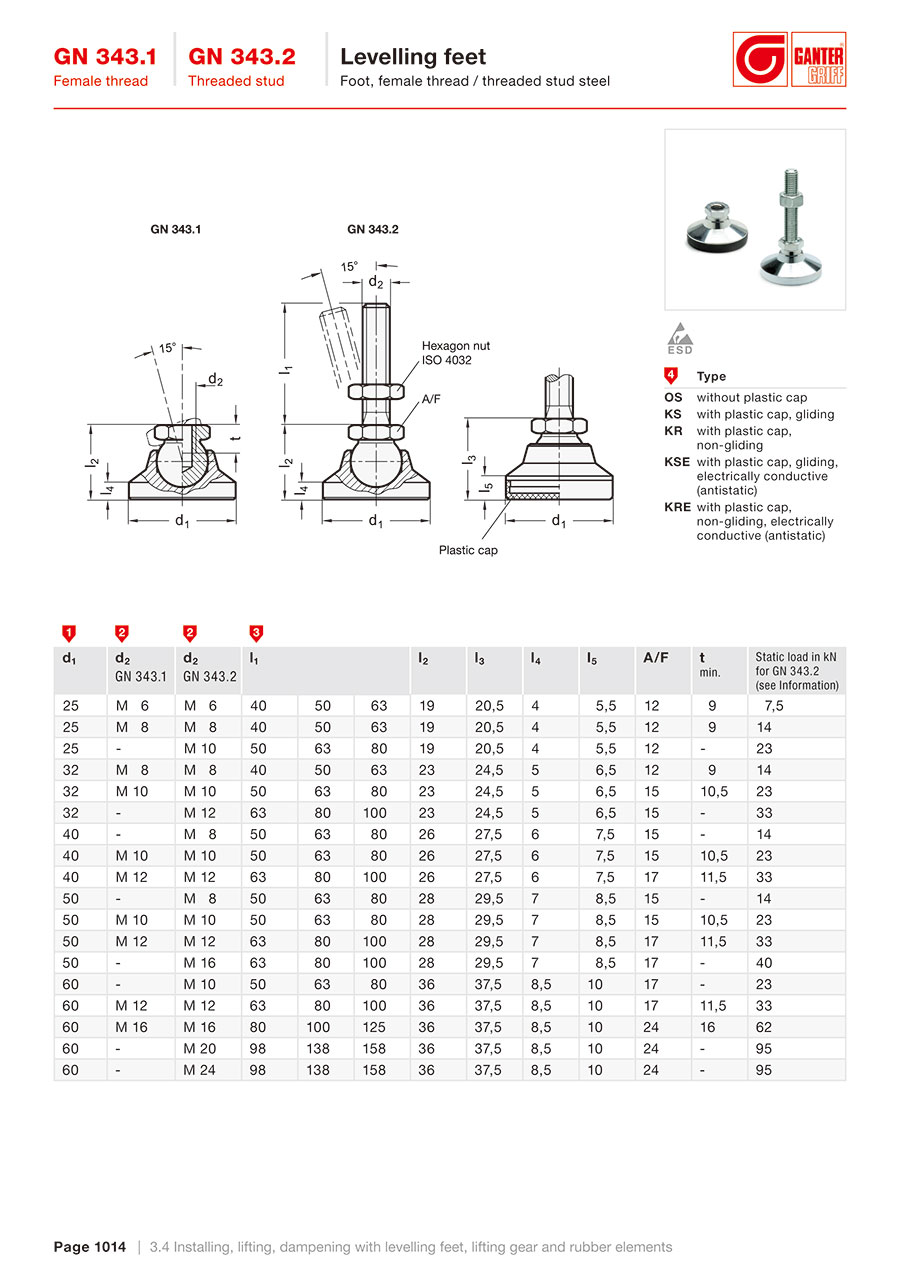

How to order (with threaded stud)![]() | 1 | d1 |
2 | d2 | |
3 | l1 | |
4 | Type |
![]() | ![]() | ![]() | |||||||||
d1 | d2 GN 343.2 | l1 | l2 | l3 | l4 | l5 | A/F | t min. | Static load in kN for GN 343.2 (see Information) | ||
25 | M 6 | 40 | 50 | 63 | 19 | 20.5 | 4 | 5.5 | 12 | 9 | 7.5 |
25 | M 8 | 40 | 50 | 63 | 19 | 20.5 | 4 | 5.5 | 12 | 9 | 14 |
25 | M 10 | 50 | 63 | 80 | 19 | 20.5 | 4 | 5.5 | 12 | - | 23 |
32 | M 8 | 40 | 50 | 63 | 23 | 24.5 | 5 | 6.5 | 12 | 9 | 14 |
32 | M 10 | 50 | 63 | 80 | 23 | 24.5 | 5 | 6.5 | 15 | 10.5 | 23 |
32 | M 12 | 63 | 80 | 100 | 23 | 24.5 | 5 | 6.5 | 15 | - | 33 |
40 | M 8 | 50 | 63 | 80 | 26 | 27.5 | 6 | 7.5 | 15 | - | 14 |
40 | M 10 | 50 | 63 | 80 | 26 | 27.5 | 6 | 7.5 | 15 | 10.5 | 23 |
40 | M 12 | 63 | 80 | 100 | 26 | 27.5 | 6 | 7.5 | 17 | 11.5 | 33 |
50 | M 8 | 50 | 63 | 80 | 28 | 29.5 | 7 | 8.5 | 15 | - | 14 |
50 | M 10 | 50 | 63 | 80 | 28 | 29.5 | 7 | 8.5 | 15 | 10.5 | 23 |
50 | M 12 | 63 | 80 | 100 | 28 | 29.5 | 7 | 8.5 | 17 | 11.5 | 33 |
50 | M 16 | 63 | 80 | 100 | 28 | 29.5 | 7 | 8.5 | 17 | - | 40 |
60 | M 10 | 50 | 63 | 80 | 36 | 37.5 | 8.5 | 10 | 17 | - | 23 |
60 | M 12 | 63 | 80 | 100 | 36 | 37.5 | 8.5 | 10 | 17 | 11.5 | 33 |
60 | M 16 | 80 | 100 | 125 | 36 | 37.5 | 8.5 | 10 | 24 | 16 | 62 |
60 | M 20 | 98 | 138 | 158 | 36 | 37.5 | 8.5 | 10 | 24 | - | 95 |
60 | M 24 | 98 | 138 | 158 | 36 | 37.5 | 8.5 | 10 | 24 | - | 95 |
Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Diameter d1 | Thread d2 | Thread length l1 | Type | |
---|---|---|---|---|---|---|---|---|
8.46 € | 1 | Available |
Same day
Stock | 25 | M 6 | 40 | KR, with plastic cap, non-gliding | |
10.06 € | 1 | Available | 7 Days | 25 | M 6 | 40 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
8.86 € | 1 | Available | 7 Days | 25 | M 6 | 40 | KS, with plastic cap, gliding | |
10.58 € | 1 | Available |
Same day
Stock | 25 | M 6 | 40 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
6.90 € | 1 | Available | 7 Days | 25 | M 6 | 40 | OS, without plastic cap | |
8.56 € | 1 | Available | 7 Days | 25 | M 6 | 50 | KR, with plastic cap, non-gliding | |
10.12 € | 1 | Available |
Same day
Stock | 25 | M 6 | 50 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
8.92 € | 1 | Available |
Same day
Stock | 25 | M 6 | 50 | KS, with plastic cap, gliding | |
10.66 € | 1 | Available |
Same day
Stock | 25 | M 6 | 50 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.18 € | 1 | Available | 7 Days | 25 | M 6 | 50 | OS, without plastic cap | |
8.46 € | 1 | Available |
Same day
Stock | 25 | M 6 | 63 | KR, with plastic cap, non-gliding | |
10.02 € | 1 | Available |
Same day
Stock | 25 | M 6 | 63 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
8.82 € | 1 | Available |
Same day
Stock | 25 | M 6 | 63 | KS, with plastic cap, gliding | |
10.46 € | 1 | Available |
Same day
Stock | 25 | M 6 | 63 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.18 € | 1 | Available |
Same day
Stock | 25 | M 6 | 63 | OS, without plastic cap | |
8.02 € | 1 | Available | 7 Days | 25 | M 8 | 40 | KR, with plastic cap, non-gliding | |
9.60 € | 1 | Available | 7 Days | 25 | M 8 | 40 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
8.46 € | 1 | Available |
Same day
Stock | 25 | M 8 | 40 | KS, with plastic cap, gliding | |
9.90 € | 1 | Available |
Same day
Stock | 25 | M 8 | 40 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
6.42 € | 1 | Available | 7 Days | 25 | M 8 | 40 | OS, without plastic cap | |
8.10 € | 1 | Available |
Same day
Stock | 25 | M 8 | 50 | KR, with plastic cap, non-gliding | |
9.68 € | 1 | Available |
Same day
Stock | 25 | M 8 | 50 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
8.50 € | 1 | Available |
Same day
Stock | 25 | M 8 | 50 | KS, with plastic cap, gliding | |
9.98 € | 1 | Available |
Same day
Stock | 25 | M 8 | 50 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
6.60 € | 1 | Available |
Same day
Stock | 25 | M 8 | 50 | OS, without plastic cap | |
8.28 € | 1 | Available | 7 Days | 25 | M 8 | 63 | KR, with plastic cap, non-gliding | |
9.80 € | 1 | Available | 7 Days | 25 | M 8 | 63 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
8.60 € | 1 | Available |
Same day
Stock | 25 | M 8 | 63 | KS, with plastic cap, gliding | |
10.16 € | 1 | Available |
Same day
Stock | 25 | M 8 | 63 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.10 € | 1 | Available |
Same day
Stock | 25 | M 8 | 63 | OS, without plastic cap | |
8.80 € | 1 | Available | 7 Days | 25 | M 10 | 50 | KR, with plastic cap, non-gliding | |
10.36 € | 1 | Available |
Same day
Stock | 25 | M 10 | 50 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
9.18 € | 1 | Available |
Same day
Stock | 25 | M 10 | 50 | KS, with plastic cap, gliding | |
10.92 € | 1 | Available |
Same day
Stock | 25 | M 10 | 50 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.56 € | 1 | Available |
Same day
Stock | 25 | M 10 | 50 | OS, without plastic cap | |
9.02 € | 1 | Available |
Same day
Stock | 25 | M 10 | 63 | KR, with plastic cap, non-gliding | |
10.58 € | 1 | Available |
Same day
Stock | 25 | M 10 | 63 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
9.40 € | 1 | Available |
Same day
Stock | 25 | M 10 | 63 | KS, with plastic cap, gliding | |
11.16 € | 1 | Available |
Same day
Stock | 25 | M 10 | 63 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.78 € | 1 | Available |
Same day
Stock | 25 | M 10 | 63 | OS, without plastic cap | |
9.60 € | 1 | Available | 7 Days | 25 | M 10 | 80 | KR, with plastic cap, non-gliding | |
11.10 € | 1 | Available |
Same day
Stock | 25 | M 10 | 80 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
9.92 € | 1 | Available | 7 Days | 25 | M 10 | 80 | KS, with plastic cap, gliding | |
11.48 € | 1 | Available |
Same day
Stock | 25 | M 10 | 80 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
8.18 € | 1 | Available |
Same day
Stock | 25 | M 10 | 80 | OS, without plastic cap | |
8.90 € | 1 | Available | 7 Days | 32 | M 8 | 40 | KR, with plastic cap, non-gliding | |
10.50 € | 1 | Available |
Same day
Stock | 32 | M 8 | 40 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
9.16 € | 1 | Available |
Same day
Stock | 32 | M 8 | 40 | KS, with plastic cap, gliding | |
10.88 € | 1 | Available |
Same day
Stock | 32 | M 8 | 40 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.60 € | 1 | Available |
Same day
Stock | 32 | M 8 | 40 | OS, without plastic cap | |
8.92 € | 1 | Available |
Same day
Stock | 32 | M 8 | 50 | KR, with plastic cap, non-gliding | |
10.50 € | 1 | Available |
Same day
Stock | 32 | M 8 | 50 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
9.16 € | 1 | Available |
Same day
Stock | 32 | M 8 | 50 | KS, with plastic cap, gliding | |
11.00 € | 1 | Available |
Same day
Stock | 32 | M 8 | 50 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.68 € | 1 | Available | 7 Days | 32 | M 8 | 50 | OS, without plastic cap | |
9.08 € | 1 | Available |
Same day
Stock | 32 | M 8 | 63 | KR, with plastic cap, non-gliding | |
10.68 € | 1 | Available |
Same day
Stock | 32 | M 8 | 63 | KRE, with plastic cap, non-gliding, electrically conductive (antistatic) | |
9.28 € | 1 | Available |
Same day
Stock | 32 | M 8 | 63 | KS, with plastic cap, gliding | |
11.16 € | 1 | Available |
Same day
Stock | 32 | M 8 | 63 | KSE, with plastic cap, gliding, electrically conductive (antistatic) | |
7.88 € | 1 | Available | 7 Days | 32 | M 8 | 63 | OS, without plastic cap |
