    Setting bolts with limit switch

    Setting bolts with limit switch

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    251.2-M6-21-O
    251.2-M6-21-S
    251.2-M8-25-O
    251.2-M8-25-S
    251.2-M10-25-O
    251.2-M10-25-S

    l1

    Version

    Thread d

    		Minimum order quantity
    21
    O, Normally closed
    M 6
    1 pieces
    21
    S, Normally open
    M 6
    1 pieces
    25
    O, Normally closed
    M 8
    1 pieces
    25
    S, Normally open
    M 8
    1 pieces
    25
    O, Normally closed
    M 10
    1 pieces
    25
    S, Normally open
    M 10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    146.66 €77.73 €
    ( 92.50 € )
    Stock item: 1 working dayAvailable for same-day shipping
    146.66 €
    ( 174.53 € )
    7 working days
    156.22 €
    ( 185.90 € )
    7 working days
    156.22 €
    ( 185.90 € )
    7 working days
    155.60 €82.47 €
    ( 98.14 € )
    Stock item: 1 working dayAvailable for same-day shipping
    155.60 €
    ( 185.16 € )
    4 working days
  • 1

    • More Information

    Basic information

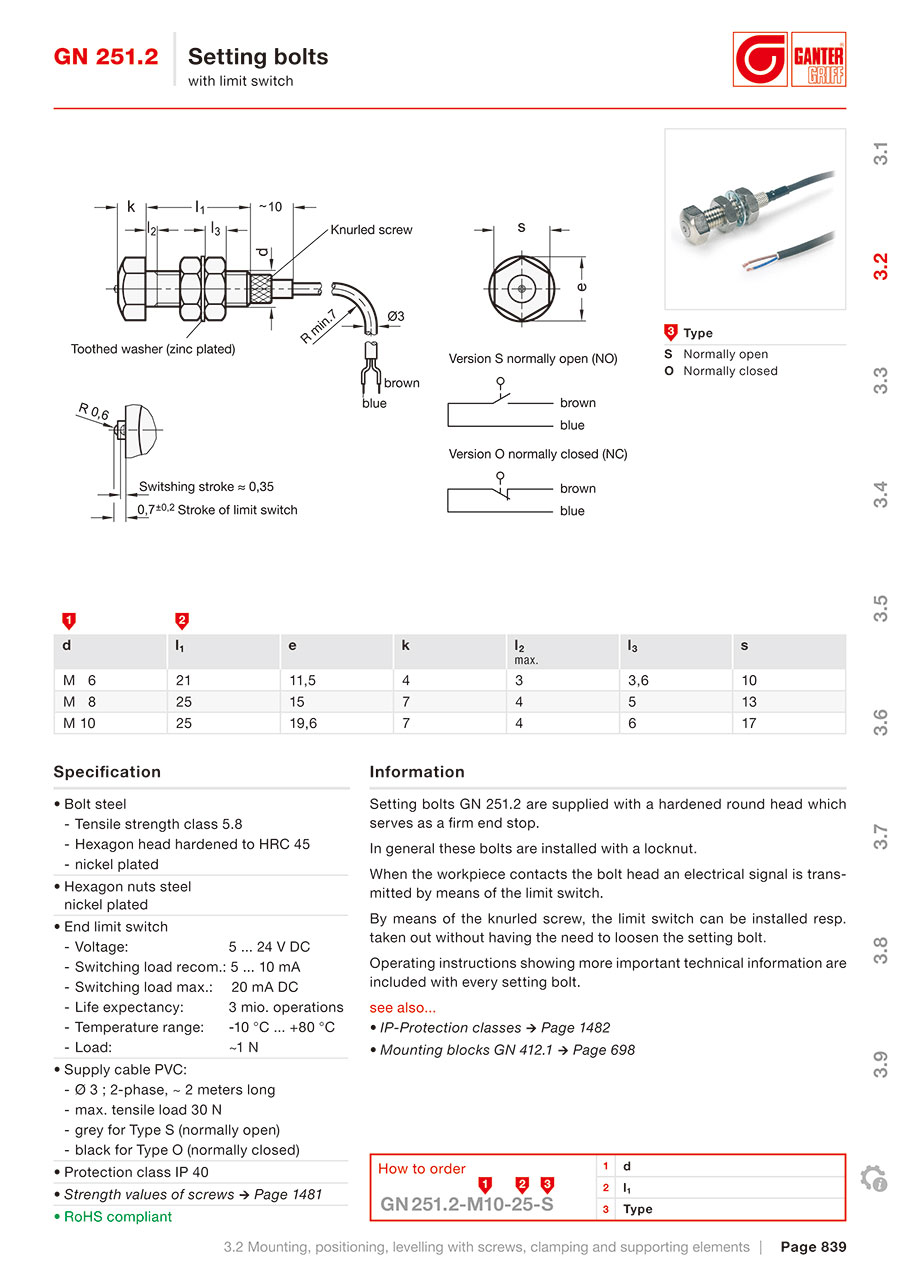

    Setting bolts GN 251.2 are supplied with a hardened round head which serves as a firm end stop.
    In general these bolts are installed with a locknut.
    When the workpiece contacts the bolt head an electrical signal is transmitted by means of the limit switch.
    By means of the knurled nut, the limit switch can be installed resp. taken out without having the need to loosen the setting bolt.
