    Side thrust pins

    Side thrust pins

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    614.1-6-BKU
    614.1-6-LKU
    614.1-6-RKU
    614.1-8-BKU
    614.1-8-LKU
    614.1-8-RKU

    Inner diameter d1

    Type

    		Minimum order quantity
    6
    BKU, Fixing on both sides, with spring plunger
    1 pieces
    6
    LKU, Fixing on the left, with spring plunger
    1 pieces
    6
    RKU, Fixing on the right, with spring plunger
    1 pieces
    8
    BKU, Fixing on both sides, with spring plunger
    1 pieces
    8
    LKU, Fixing on the left, with spring plunger
    1 pieces
    8
    RKU, Fixing on the right, with spring plunger
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    3.18 €
    ( 3.78 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.18 €
    ( 3.78 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.18 €
    ( 3.78 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.36 €
    ( 4.00 € )
    7 working days
    3.36 €
    ( 4.00 € )
    7 working days
    3.36 €
    ( 4.00 € )
    7 working days
  • 1

    • More Information

    Basic information

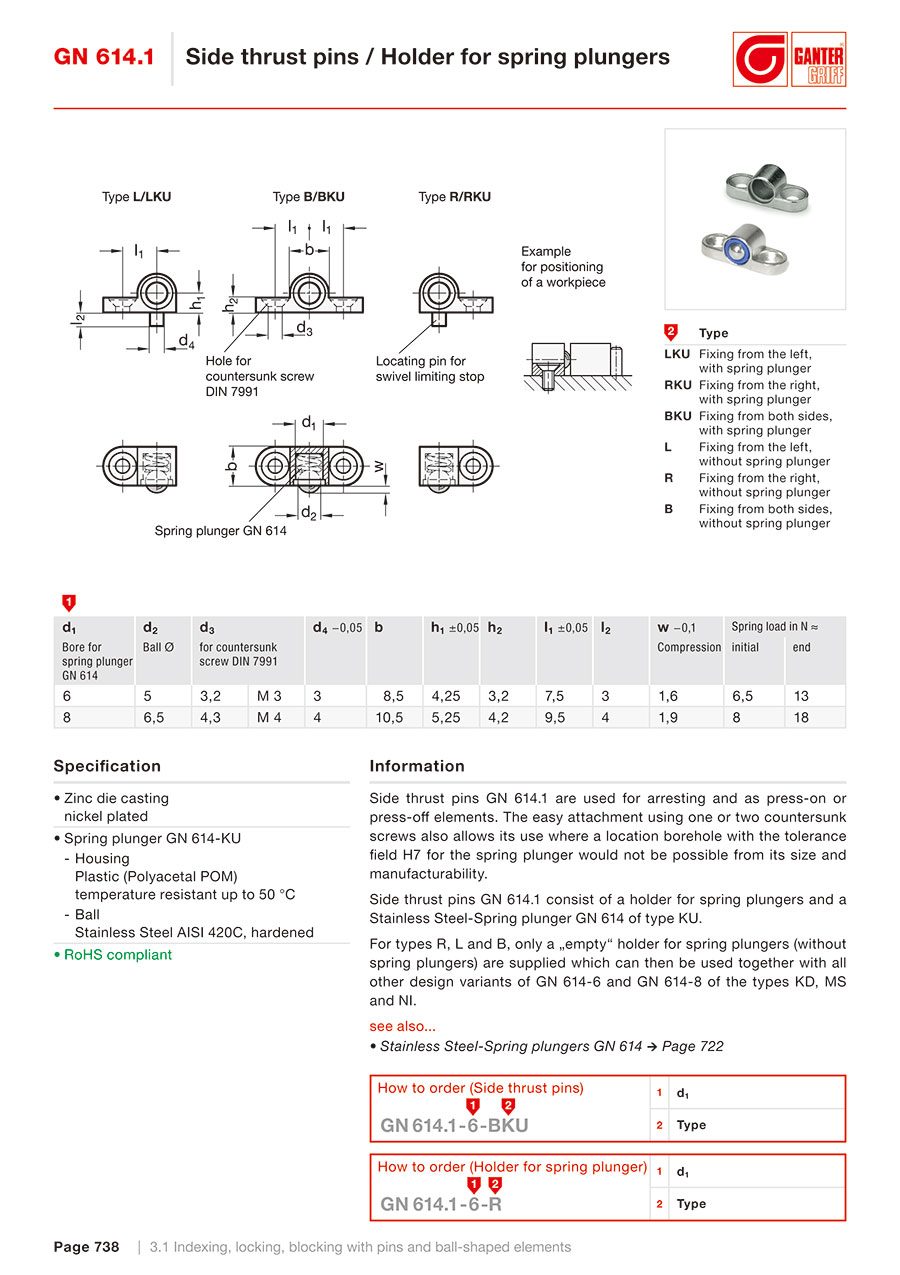

    Side thrust pins GN 614.1 are used for arresting and as press-on or press-off elements. The easy attachment using one or two countersunk screws also allows its use where a location borehole with the tolerance field H7 for the spring plunger would not be possible from its size and manufacturability.
    Side thrust pins GN 614.1 consist of a holder for spring plungers and a Stainless Steel-Spring plunger GN 614 of type KU.
