Spoked handwheels, Aluminium, plastic coated

Configure

Handwheel diameter d1(Ø)
- 125
- 140
- 160
- 200
Bore d2(mm)
- 12
- 14
- 16
- 18
- 20
Colour
- SW - black, RAL 9005, textured finish
- SR - silver, RAL 9006, textured finish
Type
- A- without handle
- R- with revolving handle
Bore code
- B- without keyway
- K- with keyway
Type
- 924
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 7 working days

Spoked handwheels, Aluminium, plastic coated

Spoked handwheels, Aluminium, plastic coated

Catalog

Part number:

Still undefined. 64 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Order suspended

924-125-B12-A-SR

924-125-B12-A-SW

Order suspended

924-125-B12-R-SR

Order suspended

924-125-B12-R-SW

924-125-B14-A-SR

924-125-B14-A-SW

Order suspended

924-125-B14-R-SR

Order suspended

924-125-B14-R-SW

Order suspended

924-125-K12-A-SR

924-125-K12-A-SW

Order suspended

924-125-K12-R-SR

Order suspended

924-125-K12-R-SW

924-125-K14-A-SR

924-125-K14-A-SW

Order suspended

924-125-K14-R-SR

Order suspended

924-125-K14-R-SW

924-140-B14-A-SR

924-140-B14-A-SW

924-140-B14-R-SR

924-140-B14-R-SW

924-140-B16-A-SR

924-140-B16-A-SW

924-140-B16-R-SR

924-140-B16-R-SW

924-140-K14-A-SR

924-140-K14-A-SW

924-140-K14-R-SR

924-140-K14-R-SW

924-140-K16-A-SR

924-140-K16-A-SW

924-140-K16-R-SR

924-140-K16-R-SW

924-160-B14-A-SR

Order suspended

924-160-B14-A-SW

924-160-B14-R-SR

Order suspended

924-160-B14-R-SW

924-160-B16-A-SR

924-160-B16-A-SW

924-160-B16-R-SR

924-160-B16-R-SW

924-160-K14-A-SR

Order suspended

924-160-K14-A-SW

924-160-K14-R-SR

Order suspended

924-160-K14-R-SW

924-160-K16-A-SR

924-160-K16-A-SW

924-160-K16-R-SR

924-160-K16-R-SW

924-200-B18-A-SR

924-200-B18-A-SW

924-200-B18-R-SR

924-200-B18-R-SW

924-200-B20-A-SR

924-200-B20-A-SW

924-200-B20-R-SR

924-200-B20-R-SW

924-200-K18-A-SR

924-200-K18-A-SW

924-200-K18-R-SR

924-200-K18-R-SW

Handwheel diameter d1

(Ø)

Bore d2

(mm)

Colour

Type

Bore code

Minimum order quantity

125	12	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
125	12	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
125	12	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
125	12	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
125	14	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
125	14	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
125	14	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
125	14	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
125	12	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
125	12	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
125	12	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
125	12	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces
125	14	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
125	14	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
125	14	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
125	14	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces
140	14	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
140	14	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
140	14	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
140	14	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
140	16	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
140	16	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
140	16	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
140	16	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
140	14	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
140	14	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
140	14	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
140	14	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces
140	16	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
140	16	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
140	16	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
140	16	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces
160	14	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
160	14	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
160	14	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
160	14	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
160	16	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
160	16	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
160	16	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
160	16	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
160	14	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
160	14	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
160	14	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
160	14	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces
160	16	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
160	16	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
160	16	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
160	16	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces
200	18	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
200	18	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
200	18	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
200	18	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
200	20	SR - silver, RAL 9006, textured finish	A- without handle	B- without keyway	1 pieces
200	20	SW - black, RAL 9005, textured finish	A- without handle	B- without keyway	1 pieces
200	20	SR - silver, RAL 9006, textured finish	R- with revolving handle	B- without keyway	1 pieces
200	20	SW - black, RAL 9005, textured finish	R- with revolving handle	B- without keyway	1 pieces
200	18	SR - silver, RAL 9006, textured finish	A- without handle	K- with keyway	1 pieces
200	18	SW - black, RAL 9005, textured finish	A- without handle	K- with keyway	1 pieces
200	18	SR - silver, RAL 9006, textured finish	R- with revolving handle	K- with keyway	1 pieces
200	18	SW - black, RAL 9005, textured finish	R- with revolving handle	K- with keyway	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

24.72 € ( 29.42 € )	7 working days
24.72 € ( 29.42 € )	7 working days
35.26 € ( 41.96 € )	7 working days
35.26 € ( 41.96 € )	7 working days
24.72 € ( 29.42 € )	7 working days
24.72 € ( 29.42 € )	7 working days
35.26 € ( 41.96 € )	7 working days
35.26 € ( 41.96 € )	7 working days
28.72 € ( 34.18 € )	7 working days
28.72 € ( 34.18 € )	7 working days
39.26 € ( 46.72 € )	7 working days
39.26 € ( 46.72 € )	7 working days
28.72 € ( 34.18 € )	7 working days
28.72 € ( 34.18 € )	7 working days
39.26 € ( 46.72 € )	7 working days
39.26 € ( 46.72 € )	7 working days
28.92 € ( 34.41 € )	7 working days
28.92 € ( 34.41 € )	7 working days
40.18 € ( 47.81 € )	7 working days
40.18 € ( 47.81 € )	7 working days
28.92 € ( 34.41 € )	7 working days
28.92 € ( 34.41 € )	7 working days
40.18 € ( 47.81 € )	7 working days
40.18 € ( 47.81 € )	7 working days
32.92 € ( 39.17 € )	7 working days
32.92 € ( 39.17 € )	7 working days
44.18 € ( 52.57 € )	7 working days
44.18 € ( 52.57 € )	7 working days
32.92 € ( 39.17 € )	7 working days
32.92 € ( 39.17 € )	7 working days
44.18 € ( 52.57 € )	7 working days
44.18 € ( 52.57 € )	7 working days
35.84 € ( 42.65 € )	7 working days
35.84 € ( 42.65 € )	7 working days
47.26 € ( 56.24 € )	7 working days
47.26 € ( 56.24 € )	7 working days
35.84 € ( 42.65 € )	7 working days
35.84 € ( 42.65 € )	7 working days
47.26 € ( 56.24 € )	7 working days
47.26 € ( 56.24 € )	7 working days
39.84 € ( 47.41 € )	7 working days
39.84 € ( 47.41 € )	7 working days
51.26 € ( 61.00 € )	7 working days
51.26 € ( 61.00 € )	7 working days
39.84 € ( 47.41 € )	7 working days
39.84 € ( 47.41 € )	7 working days
51.26 € ( 61.00 € )	7 working days
51.26 € ( 61.00 € )	7 working days
47.72 € ( 56.79 € )	7 working days
47.72 € ( 56.79 € )	7 working days
60.64 € ( 72.16 € )	7 working days
60.64 € ( 72.16 € )	7 working days
47.72 € ( 56.79 € )	7 working days
47.72 € ( 56.79 € )	7 working days
60.64 € ( 72.16 € )	7 working days
60.64 € ( 72.16 € )	7 working days
51.72 € ( 61.55 € )	7 working days
51.72 € ( 61.55 € )	7 working days
64.64 € ( 76.92 € )	7 working days
64.64 € ( 76.92 € )	7 working days

More Information

Basic information

Basic information

Spoked handwheels GN 924 are distinguished by modern design.

The removable plastic cover shrouds the fixing components such as screws, countersunk washers as well as the shaft end.

Catalog

Products homepage

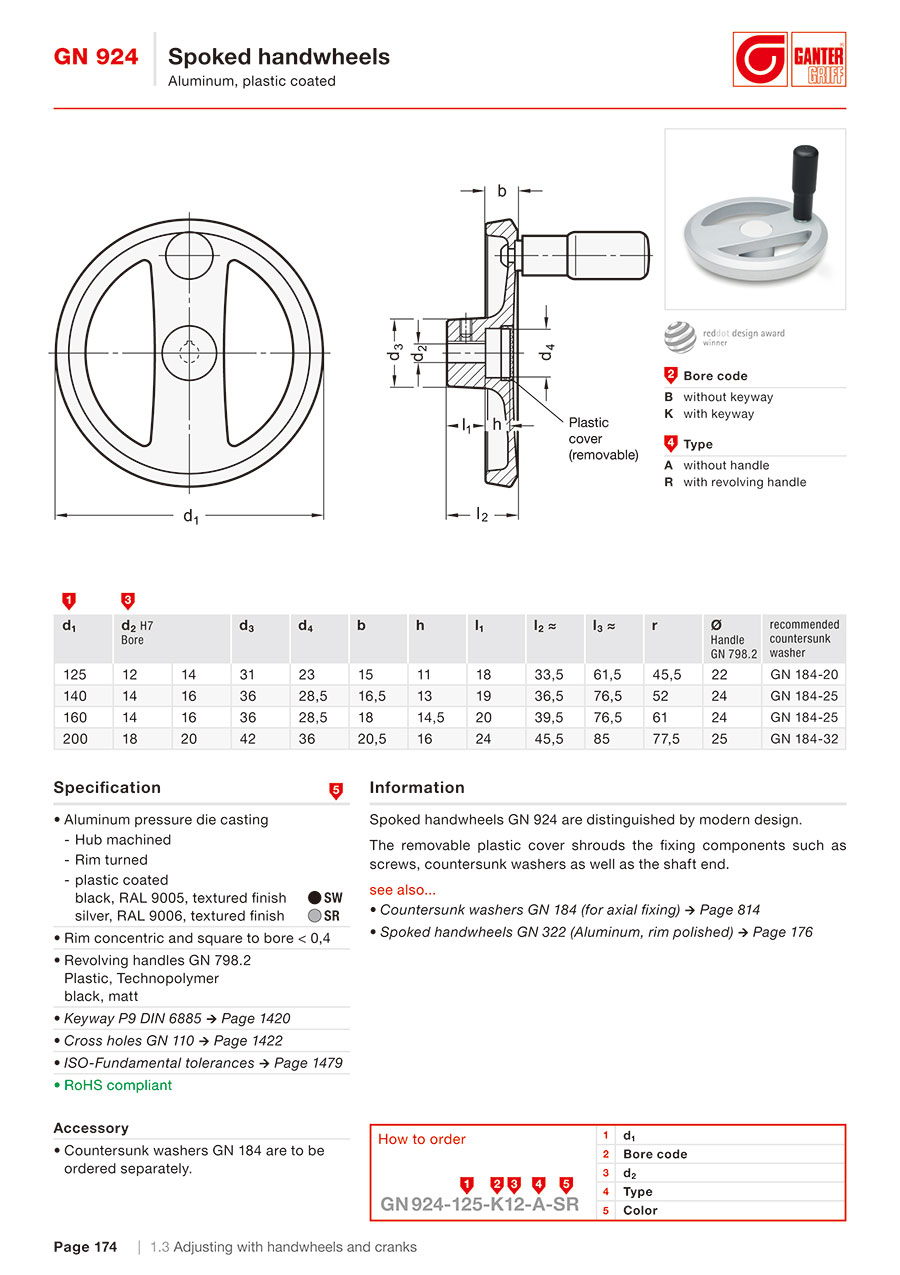

Catalog (2-page spread)

899
