    • GANTER

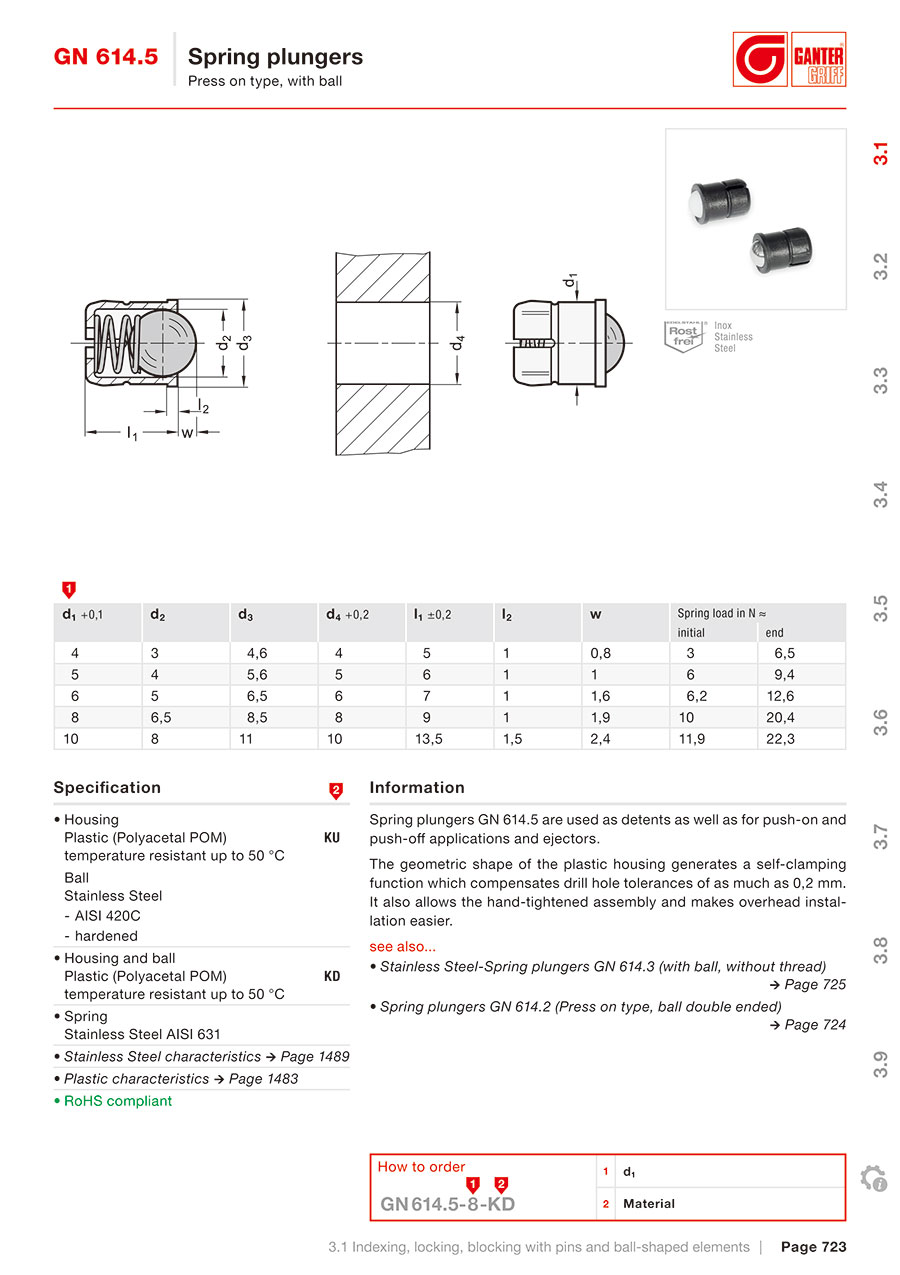

    Spring plungers, press on type with ball / GN 614.5

    Spring plungers, press on type with ball / GN 614.5

    Part number:

    Still undefined. 10 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    614.5-4-KD
    614.5-4-KU
    614.5-5-KD
    614.5-5-KU
    614.5-6-KD
    614.5-6-KU
    614.5-8-KD
    614.5-8-KU
    614.5-10-KD
    614.5-10-KU

    Outside diameter d1

    Material

    		Minimum order quantity
    4
    KD, Plastic Housing and Ball
    1 pieces
    4
    KU, Plastic Housing and Stainless Ball
    1 pieces
    5
    KD, Plastic Housing and Ball
    1 pieces
    5
    KU, Plastic Housing and Stainless Ball
    1 pieces
    6
    KD, Plastic Housing and Ball
    1 pieces
    6
    KU, Plastic Housing and Stainless Ball
    1 pieces
    8
    KD, Plastic Housing and Ball
    1 pieces
    8
    KU, Plastic Housing and Stainless Ball
    1 pieces
    10
    KD, Plastic Housing and Ball
    1 pieces
    10
    KU, Plastic Housing and Stainless Ball
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.28 €
    ( 1.52 € )
    7 working days
    1.08 €
    ( 1.29 € )
    7 working days
    1.38 €
    ( 1.64 € )
    7 working days
    1.18 €0.63 €
    ( 0.75 € )
    Stock item: 1 working dayAvailable for same-day shipping
    1.42 €
    ( 1.69 € )
    7 working days
    1.18 €
    ( 1.40 € )
    4 working days
    1.58 €
    ( 1.88 € )
    7 working days
    1.36 €
    ( 1.62 € )
    7 working days
    2.50 €
    ( 2.98 € )
    7 working days
    2.20 €1.17 €
    ( 1.39 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    Spring plungers GN 614.5 are used as detents as well as for push-on and push-off applications and ejectors.
    The geometric shape of the plastic housing generates a self-clamping function which compensates drill hole tolerances of as much as 0,2 mm. It also allows the hand-tightened assembly and makes overhead installation easier.
