GANTER

Spring plungers, with slot, Steel / Stainless Steel

Catalog

Part number:

Still undefined. 37 possible part numbers found.

Product information
Part number list
More Information
Catalog

Product information

GN 615 Steel / Stainless Steel / Spring Plungers with Ball, with Slot

Information

Spring plungers GN 615 are used as detents as well as for push-on and push-off applications and ejectors.

see also...
• Plastic-Spring plungers GN 615.2 (with ball, with slot)

How to Order

How to order (Steel)	1	d₁
How to order (Steel)	2	Type

How to order (Stainless Steel)	1	d₁
How to order (Stainless Steel)	2	Type

Specification

• Type K / KS
- Housing Steel, blackened
- Ball Steel, 1.3505, hardened
• Type KN / KSN
- Housing
Stainless Steel AISI 303
- Ball
Stainless Steel AISI 420C, hardened
• Spring
Stainless Steel AISI 631
• Marking of type KS / KSN:
Housing with 2 longitudinal markings
• Stainless Steel characteristics
• RoHS compliant

Dimensions


d₁			d₂	l ±0.1	w	Spring load in N ≈		Spring load in N ≈
Type K	Type KN	Type KS			Compression	standard (Type K / KN)		high (Type KS / KSN)
		Type KSN				initial	end	initial	end
-	M 2	-	1	4	0.3	0.8	1.5	-	-
M 3	M 3	-	1.5	7	0.4	3	4.5	-	-
M 4	M 4	-	2.5	9	0.8	6	14.5	-	-
M 5	M 5	M 5	3	12	0.9	8	14	15	22
M 6	M 6	M 6	3.5	14	1	11	18	19	28
M 8	M 8	M 8	4.5	16	1.5	18	31	36	62
M 10	M 10	M 10	6	19	2	24	45	57	104
M 12	M 12	M 12	8	22	2.5	26	49	61	110
M 16	M 16	M 16	10	24	3.5	41	86	68	142
M 20	M 20	M 20	12	30	4.5	56	111	84	166
M 24	M 24	M 24	15	34	5.5	81	151	127	237

Part number list

Number of items

Part number

Thread d1

Type

Spring load, standard, initial

(N)

Form

Weight

(kg)

Minimum order quantity

-	-	1	4	0.3	0,8, 0,8	KN, Stainless Steel, standard spring load	0.001	1 pieces
M 3	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 3	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 4	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 4	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 5	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 5	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 5	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 5	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 6	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 6	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 6	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 6	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 8	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 8	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 8	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 8	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 10	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 10	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 10	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 10	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 12	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 12	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 12	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 12	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 16	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 16	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 16	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 16	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 20	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 20	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 20	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 20	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces
M 24	K, Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 24	KN, Stainless Steel, standard spring load	-	-	-	-	-	-	1 pieces
M 24	KS, Steel, high spring load	-	-	-	-	-	-	1 pieces
M 24	KSN, Stainless Steel, high spring load	-	-	-	-	-	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

6.10 € ( 7.26 € )	7 working days
1.62 € ( 1.93 € )	Stock item: 1 working dayAvailable for same-day shipping
4.30 € ( 5.12 € )	7 working days
1.28 € ( 1.52 € )	Stock item: 1 working dayAvailable for same-day shipping
3.80 € ( 4.52 € )	Stock item: 1 working dayAvailable for same-day shipping
1.26 € ( 1.50 € )	7 working days
3.82 € ( 4.55 € )	Stock item: 1 working dayAvailable for same-day shipping
1.52 € ( 1.81 € )	7 working days
4.36 € ( 5.19 € )	3 working days
1.28 € ( 1.52 € )	Stock item: 1 working dayAvailable for same-day shipping
3.82 € ( 4.55 € )	Stock item: 1 working dayAvailable for same-day shipping
1.48 € ( 1.76 € )	7 working days
4.38 € ( 5.21 € )	Stock item: 1 working dayAvailable for same-day shipping
1.72 € ( 2.05 € )	7 working days
4.90 € ( 5.83 € )	4 working days
2.10 € ( 2.50 € )	7 working days
5.52 € ( 6.57 € )	3 working days
1.92 € ( 2.28 € )	7 working days
6.00 €3.18 € ( 3.78 € )	Stock item: 1 working dayAvailable for same-day shipping
2.30 € ( 2.74 € )	Stock item: 1 working dayAvailable for same-day shipping
6.46 €3.42 € ( 4.07 € )	Stock item: 1 working dayAvailable for same-day shipping
2.96 € ( 3.52 € )	7 working days
7.46 €3.95 € ( 4.70 € )	Stock item: 1 working dayAvailable for same-day shipping
3.42 €1.81 € ( 2.15 € )	Stock item: 1 working dayAvailable for same-day shipping
8.26 €4.38 € ( 5.21 € )	Stock item: 1 working dayAvailable for same-day shipping
4.86 € ( 5.78 € )	7 working days
9.48 €5.02 € ( 5.97 € )	Stock item: 1 working dayAvailable for same-day shipping
5.10 € ( 6.07 € )	7 working days
10.50 € ( 12.49 € )	7 working days
7.58 € ( 9.02 € )	7 working days
13.16 €6.97 € ( 8.29 € )	Stock item: 1 working dayAvailable for same-day shipping
8.58 €4.55 € ( 5.41 € )	Stock item: 1 working dayAvailable for same-day shipping
14.70 €7.79 € ( 9.27 € )	4 working days
12.82 €6.79 € ( 8.08 € )	Stock item: 1 working dayAvailable for same-day shipping
23.36 €12.38 € ( 14.73 € )	Stock item: 1 working dayAvailable for same-day shipping
13.46 €7.13 € ( 8.48 € )	Stock item: 1 working dayAvailable for same-day shipping
23.66 €12.54 € ( 14.92 € )	4 working days

More Information

Basic information

Basic information

Spring plungers GN 615 are used as detents as well as for push-on and push-off applications and ejectors.

Catalog

Products homepage

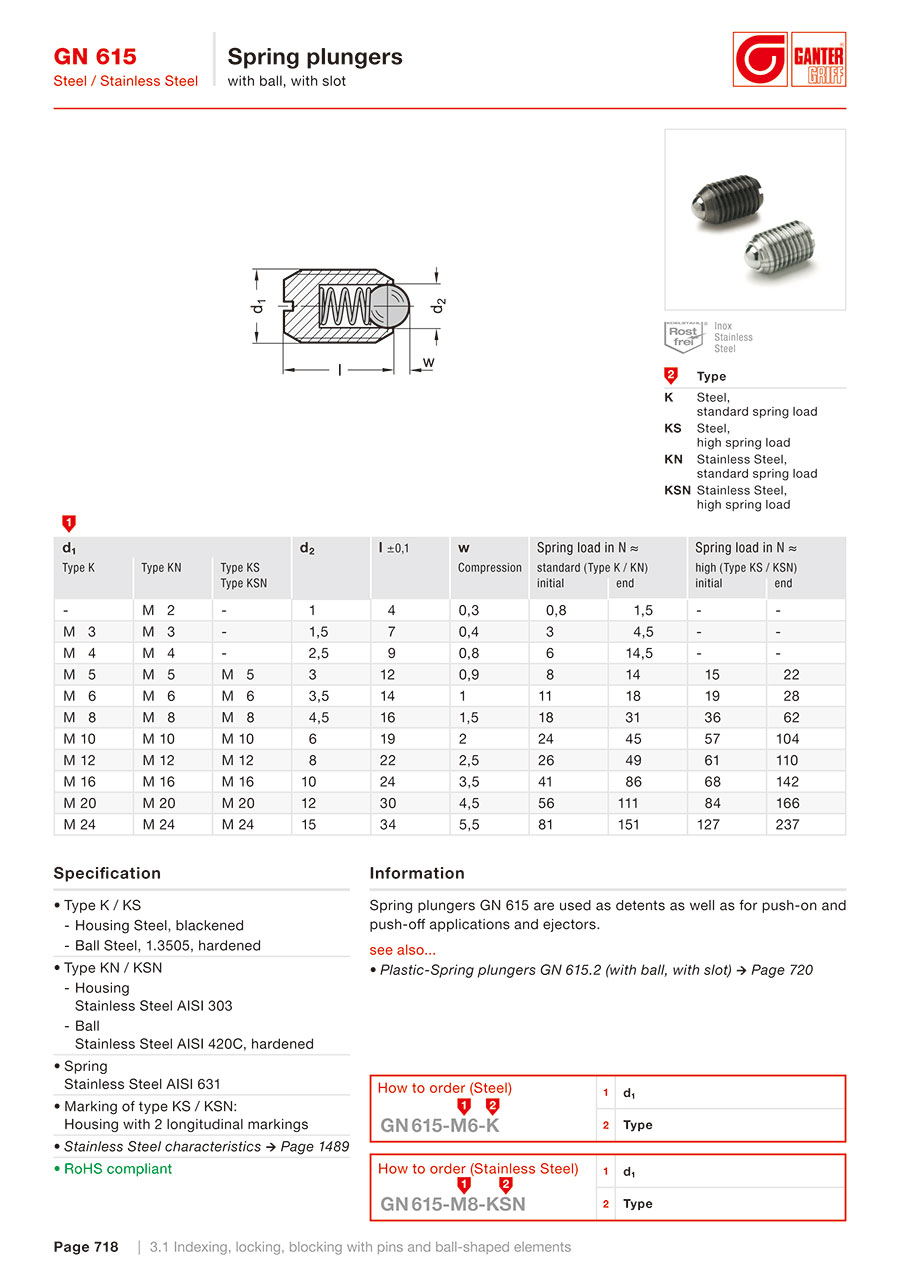

Catalog (2-page spread)
