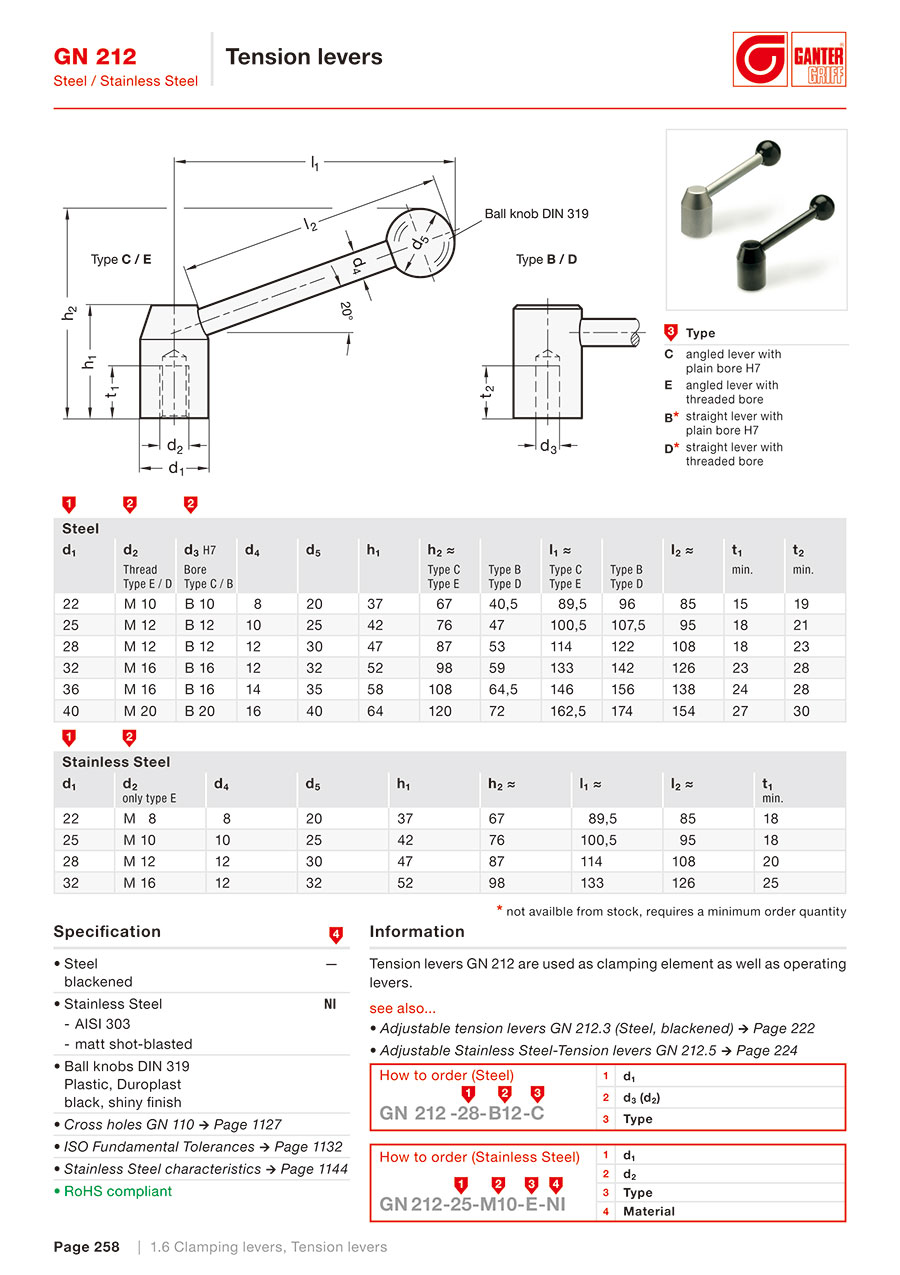

Tension levers, Steel
- Promotional pricing ends 30/11/2024
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Diameter d1 | Connection thread d2 | Coupling hole d3 | Type | |
|---|---|---|---|---|---|---|---|---|
15.92 € | 1 | Available | 7 Days | 22 | - | B 10 | B, straight lever with plain bore, Tol. H7 | |
15.92 € 11.14 € | 1 | Available |
Same day
Stock | 22 | - | B 10 | C, angled lever with plain bore, Tol. H7 | |
15.92 € | 1 | Available | 7 Days | 22 | M 10 | - | D, straight lever with thread | |
15.92 € | 1 | Available | 7 Days | 22 | M 10 | - | E, angled lever with thread | |
17.88 € | 1 | Available | 7 Days | 25 | M 12 | - | E, angled lever with thread | |
18.06 € | 1 | Available | 7 Days | 28 | - | B 12 | B, straight lever with plain bore, Tol. H7 | |
18.06 € | 1 | Available | 7 Days | 28 | - | B 12 | C, angled lever with plain bore, Tol. H7 | |
18.06 € | 1 | Available | 7 Days | 28 | M 12 | - | D, straight lever with thread | |
18.06 € | 1 | Available | 7 Days | 28 | M 12 | - | E, angled lever with thread | |
19.72 € | 1 | Available | 12 Days | 32 | - | B 16 | B, straight lever with plain bore, Tol. H7 | |
19.72 € | 1 | Available | 7 Days | 32 | - | B 16 | C, angled lever with plain bore, Tol. H7 | |
19.72 € | 1 | Available | 7 Days | 32 | M 16 | - | E, angled lever with thread | |
22.82 € | 1 | Available | 7 Days | 36 | - | B 16 | C, angled lever with plain bore, Tol. H7 | |
22.82 € | 1 | Available | 7 Days | 36 | M 16 | - | D, straight lever with thread | |
22.82 € | 1 | Available | 7 Days | 36 | M 16 | - | E, angled lever with thread | |
29.82 € | 1 | Available | 7 Days | 40 | - | B 20 | B, straight lever with plain bore, Tol. H7 | |
29.82 € | 1 | Available | 7 Days | 40 | - | B 20 | C, angled lever with plain bore, Tol. H7 | |
29.82 € | 1 | Available | 7 Days | 40 | M 20 | - | E, angled lever with thread |
Loading...
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Diameter d1
-
Connection thread d2
- M 10
- M 12
- M 16
- M 20
-
Coupling hole d3
- B 10
- B 12
- B 16
- B 20
-
Type
- B, straight lever with plain bore, Tol. H7
- C, angled lever with plain bore, Tol. H7
- D, straight lever with thread
- E, angled lever with thread
-
Type
- 212
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 7 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
